Calcutt Locks GU

"A hydraulic screw, a very rare beast ??"



The Ham Baker paddle gear of the northern GU is not hydraulic !!!

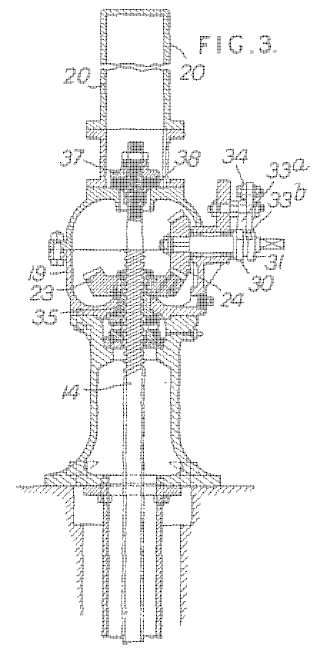

387,951. Sluice valves. BENCE, E. H., Municipal Engineering Works, Langley Green, Birmingham, HAM, P. S., 70, Victoria Street, London, and MORGAN, E. I., 8, Wolverhampton Road, Sedgley, Birmingham. Aug. 24, 1932, No. 23694. [Class 68 (ii).] A sluice valve is operated by screw gearing of such a pitch that the valve, when raised and released, will descend by its own weight. The Figure shows a gearing for raising a flat sliding valve, not shown, at the lower end of a non-revolving rod 14. It comprises a gear case 19, 20, containing bevel wheels 23, 24 rotatable so that the nut 35 raises the rod 14. When raised, it is retained by pawls 33a, 33b engaging with ratchet wheels 30, 31 ; these may be released by overturning a link 34, and the valve then descends. The stop 37 is fitted with a buffer 38, or may function as a dashpot. In a modification, the rod 14 is keyed to the wheel 23, and rotates in a nut at the upper end of a tube attached to the valve rod. Buffers are fitted at the lower edge of valve ; they may be removed to enable the valve to be removed.



Ham & Baker winding mechanism.jpg

Edited by Ray T
Link to comment
Share on other sites

58 minutes ago, Ray T said:
  •

Ham & Baker winding mechanism.jpg387,951. Sluice valves. BENCE, E. H., Municipal Engineering Works, Langley Green, Birmingham, HAM, P. S., 70, Victoria Street, London, and MORGAN, E. I., 8, Wolverhampton Road, Sedgley, Birmingham. Aug. 24, 1932, No. 23694. [Class 68 (ii).] A sluice valve is operated by screw gearing of such a pitch that the valve, when raised and released, will descend by its own weight. The Figure shows a gearing for raising a flat sliding valve, not shown, at the lower end of a non-revolving rod 14. It comprises a gear case 19, 20, containing bevel wheels 23, 24 rotatable so that the nut 35 raises the rod 14. When raised, it is retained by pawls 33a, 33b engaging with ratchet wheels 30, 31 ; these may be released by overturning a link 34, and the valve then descends. The stop 37 is fitted with a buffer 38, or may function as a dashpot. In a modification, the rod 14 is keyed to the wheel 23, and rotates in a nut at the upper end of a tube attached to the valve rod. Buffers are fitted at the lower edge of valve ; they may be removed to enable the valve to be removed.

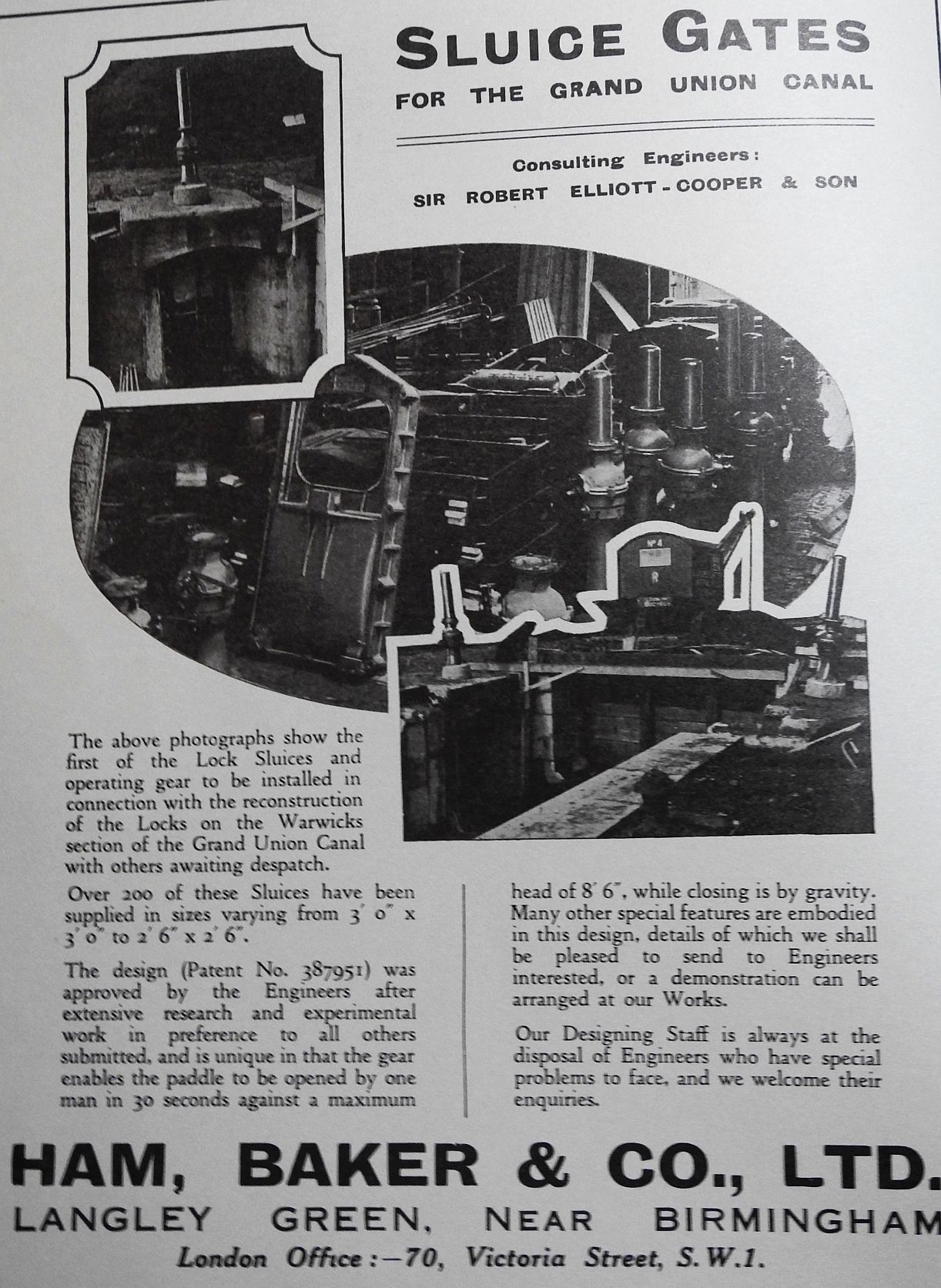

HamBakerGearS.jpg.83d0dc79ff262a9391785665183527dc.jpgAdvert in a GU book











" ... the gear enables the paddle to be opened by one man in 30 seconds against a maximum head of 8'6", while closing is by gravity..."

  • Greenie 2
Link to comment
Share on other sites

8 minutes ago, PeterScott said:

HamBakerGearS.jpg.83d0dc79ff262a9391785665183527dc.jpgAdvert in a GU book











" ... the gear enables the paddle to be opened by one man in 30 seconds against a maximum head of 8'6", while closing is by gravity..."

Liquid free mechanical hydraulics, similar to perpetual motion

Link to comment
Share on other sites

40 minutes ago, PeterScott said:

HamBakerGearS.jpg.83d0dc79ff262a9391785665183527dc.jpgAdvert in a GU book











" ... the gear enables the paddle to be opened by one man in 30 seconds against a maximum head of 8'6", while closing is by gravity..."

Closing by gravity, not winding down as seems to be the instruction today.

  • Greenie 2
Link to comment
Share on other sites

12 hours ago, Dav and Pen said:

We always took off the chain and bashed the spindle and down went the gear and paddle.

The locksmurfs don't like you doing that.

(You may wonder how I know this!)



Is there some sort of oil filled dashpot to cushion the mechanism as it comes down?

I wonder if this is where the idea of the Ham Baker gear being 'hydraulic' came from.

Edited by Victor Vectis
Link to comment
Share on other sites

Times change but often these paddles will drop on their own anyway. The good thing is that you can see if they are down by looking at the indicator rod. I’ve single handed up Hatton with a loaded boat and you can see from a distance if the paddles are up or down. Put boat in lock shut gates open offside paddle go up to next lock open paddle walk back lock full pull off chain open gates and go.

  • Greenie 2
Link to comment
Share on other sites

13 hours ago, Dav and Pen said:

We always took off the chain and bashed the spindle and down went the gear and paddle.

I think that was the original intention - the u-shaped collars enabled speedy operation but, alas, boaters' aims were not always spot on and so most of the castings securing the chain to prevent loss of the collar have been broken, as the earlier photo shows. However, I note from the drawing that the raised position was to be secured by a ratchet and pawl as we find on most other locks. Some industrial archaeology needed!

Link to comment
Share on other sites

3 hours ago, Victor Vectis said:

The locksmurfs don't like you doing that.

(You may wonder how I know this!)



Is there some sort of oil filled dashpot to cushion the mechanism as it comes down?

I wonder if this is where the idea of the Ham Baker gear being 'hydraulic' came from.

Today some don't fall all the way just knocking the clip off, some drop like a stone and a few even work like they should

Link to comment
Share on other sites

19 hours ago, Ray T said:

The Ham Baker paddle gear of the northern GU is not hydraulic !!!



Well, only in the sense that it controls the flow of water.



4 hours ago, Victor Vectis said:

Is there some sort of oil filled dashpot to cushion the mechanism as it comes down?

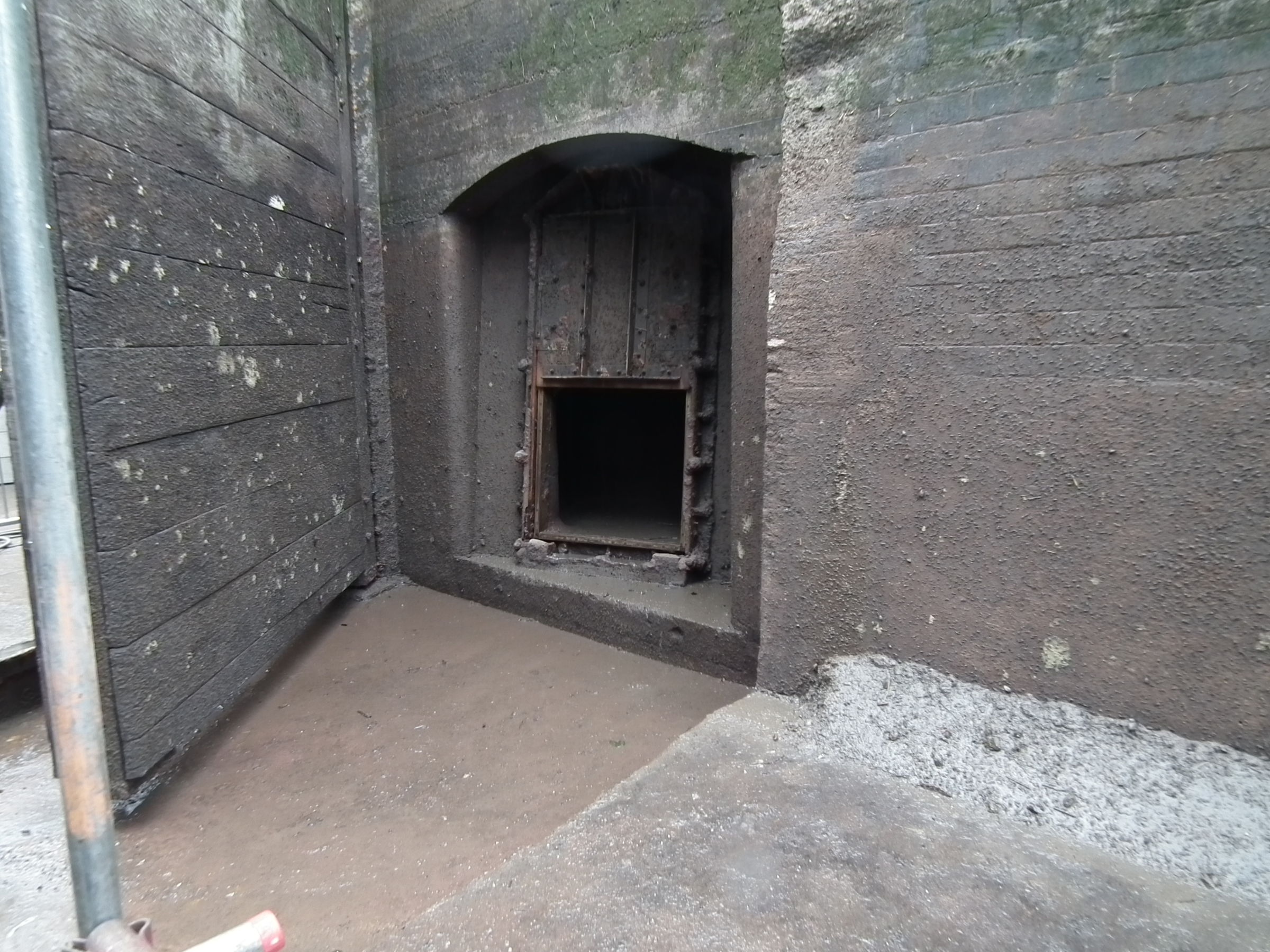

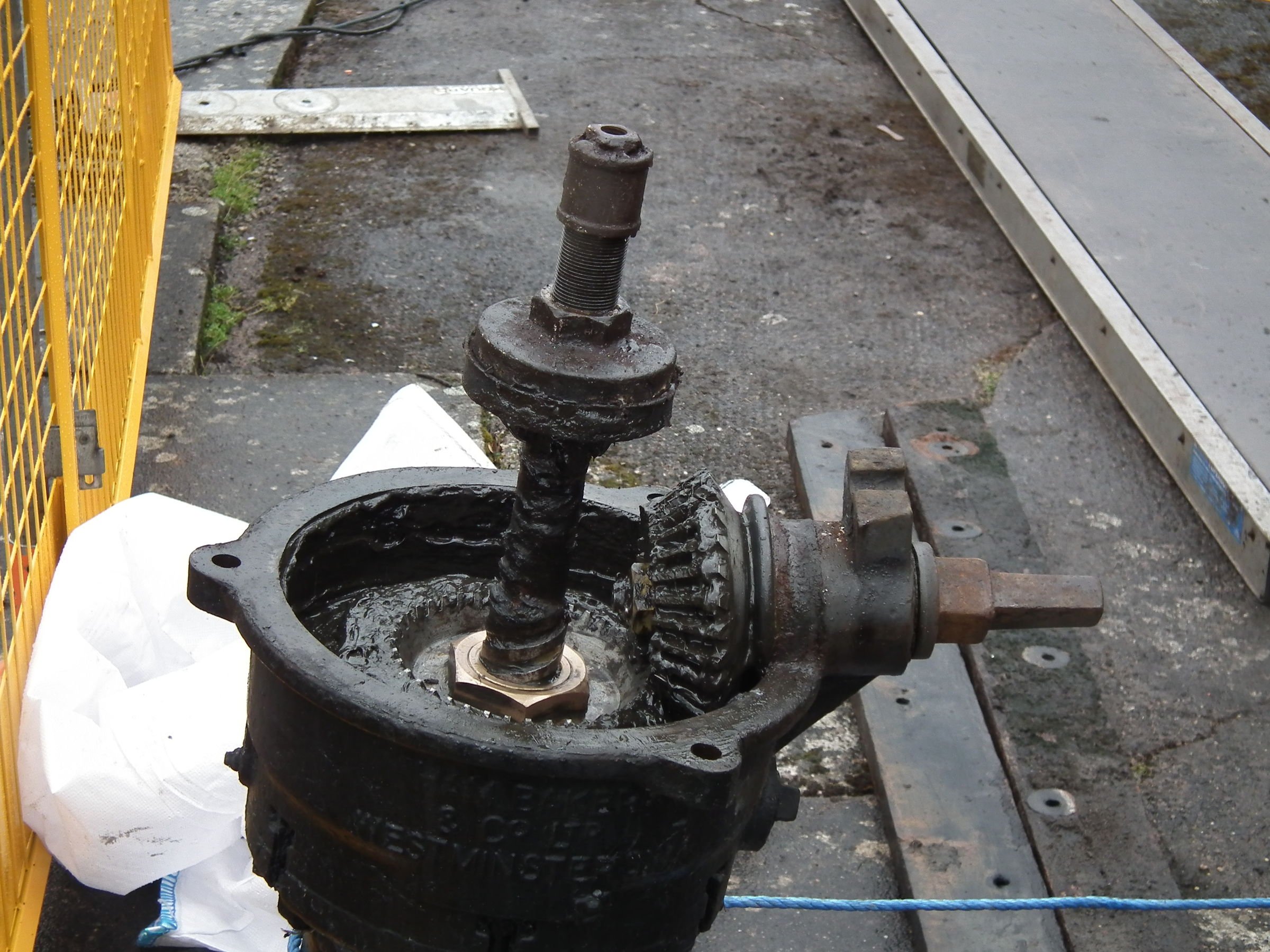

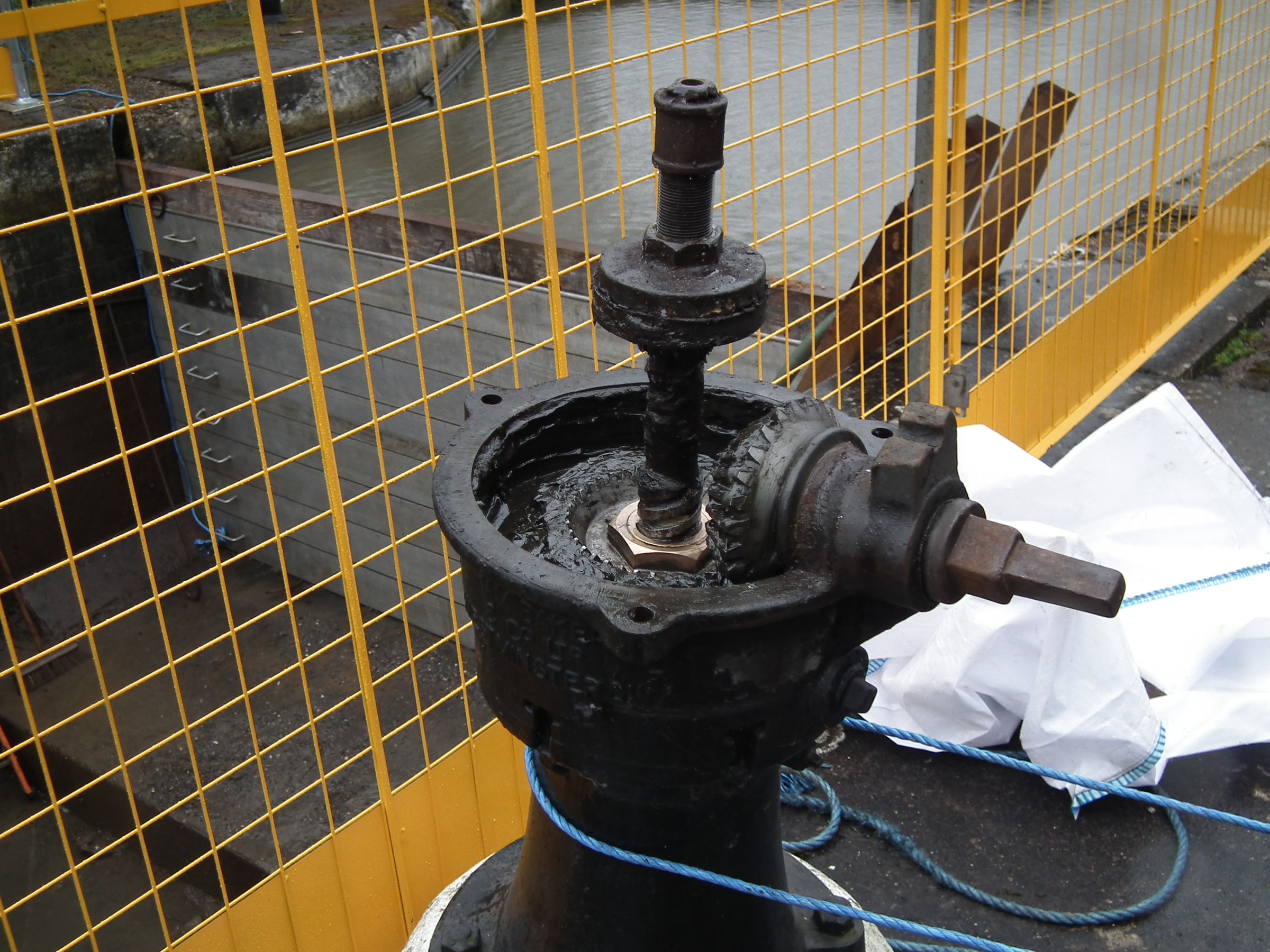

No, but there is (or at least was) a great thick rubber washer below the collar at the top of the screw, which damped the impact when it reached the bottom. You can see it through the viewing hole when the paddle is down. But it wouldn't surprise me to find that on almost 90 year old gear the washer may be perished or hardened or missing. Don't know if they get replaced as part of routine maintenance.

Edited by David Mack
Link to comment
Share on other sites

4 hours ago, Victor Vectis said:

Is there some sort of oil filled dashpot to cushion the mechanism as it comes down?



As far as I am aware there is / was a couple of pads below the sluice hole for the bottom of the paddle to land on as well as Item 38 in post 4804

LHS bottom of paddle



No oil dashpot.

Ham Baker paddle.jpg




Edited by Ray T
  • Greenie 1
Link to comment
Share on other sites

On this day in 2011




spacer.pngActon Bridge T&M

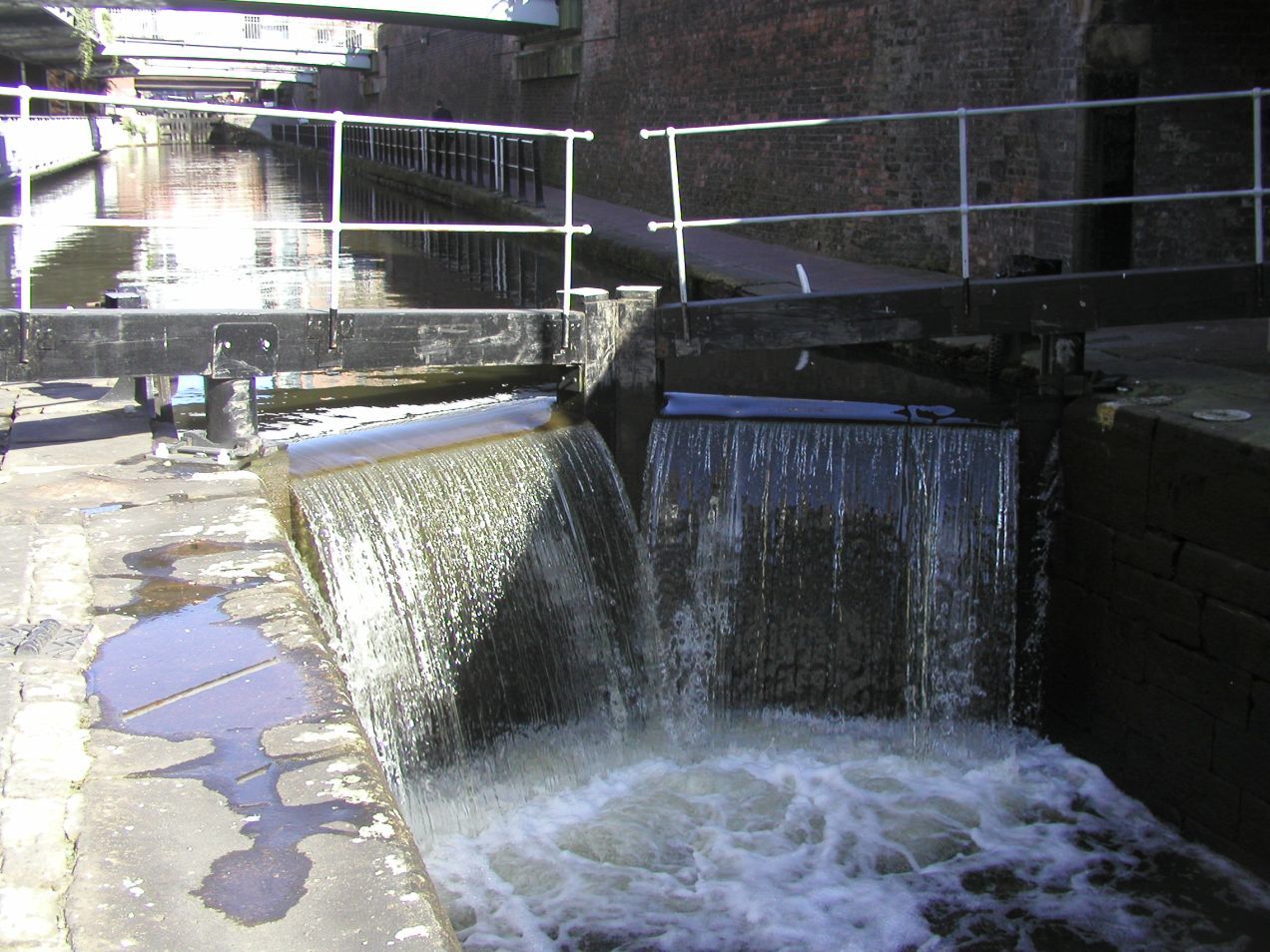

Front deck design giving almost step-free access from the front cabin, and so a deck that is lower than the waterline, and so can't drain directly into the canal: it has a channel through the boat and water is eventually pumped out from the engine bilge. Unless it is blocked by leaves of course.

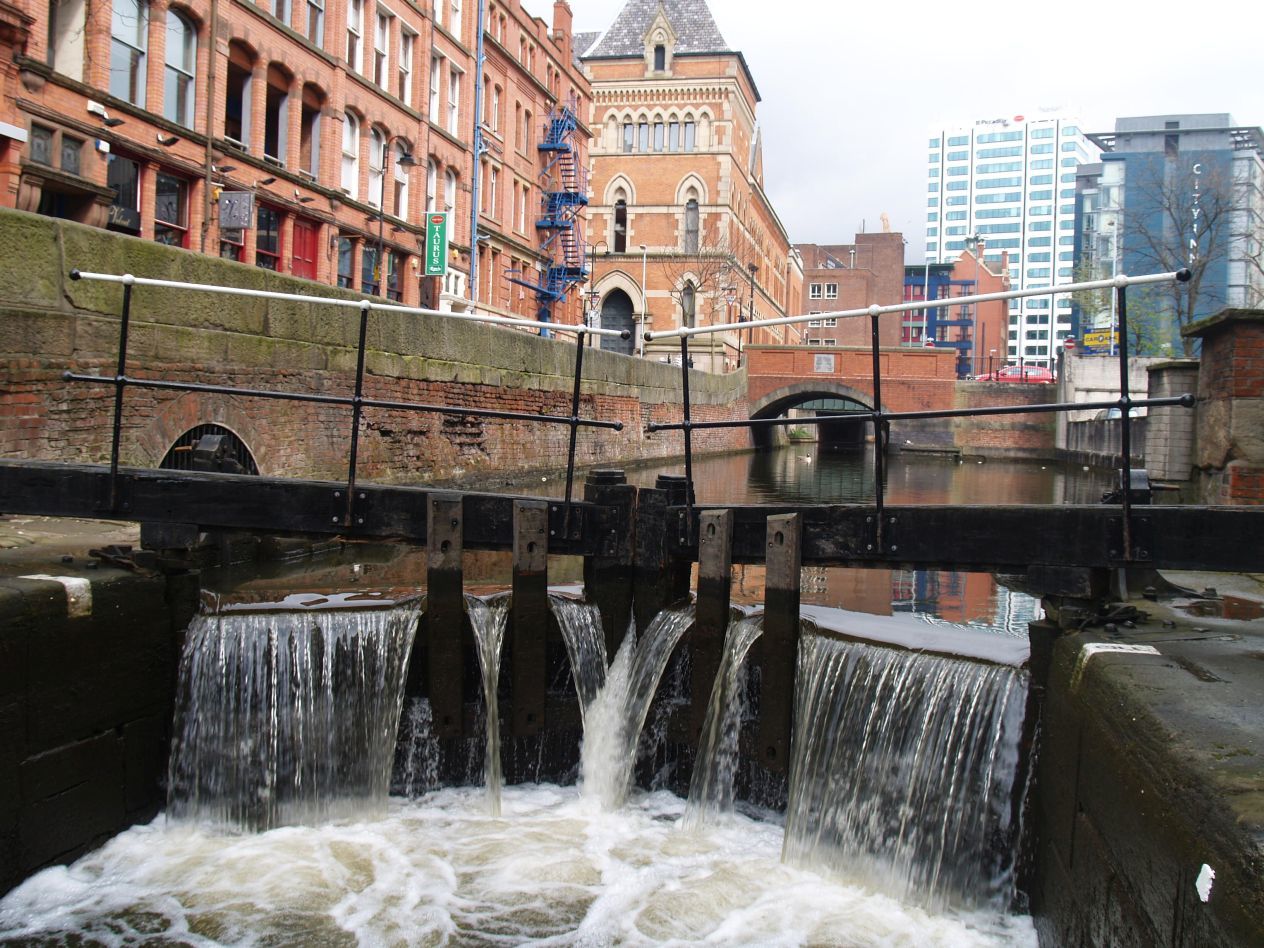

It's one of the advantages of the Ham&Baker paddlegear, that there is no need for large waterfalls (eg Rochdale 9 below) to threaten to fill the front deck of modern leisureboats.



P4180344s.jpg.22881249329136e535c11095d4e8f217.jpgP4097772s.jpg.02443ef27f4369090f76164f7d997b54.jpg

Edited by PeterScott
extra pic
Link to comment
Share on other sites

In 1988 after leaving Cochin we went up into the Nilgiri hills to Conoor and went down to the station to go on the train to Ooty. They change locos here as the train coming up is pushed by the loco using the rack railway. At a station further up the line I got out to take some photos and was invited into the cab and rode the rest of the way on the footplate. The driver waved at all the people trackside and the fireman kept telling me how much coal he shoveled. A few rupees was obviously in order.



Edited by Dav and Pen
Problem with photos
  • Greenie 2
Link to comment
Share on other sites

More stream locos from Rajasthan in 1985 January. These are meter gauge which has now been replaced by standard gauge track and no more steam. The crew standing by the loco saw me and got out of the cab to pose. Note the vulture above .




Edited by Dav and Pen
Content
  • Greenie 4
Link to comment
Share on other sites

5 minutes ago, Dav and Pen said:

More stream locos from Rajasthan in 1895 January. These are meter gauge which has now been replaced by standard gauge track and no more steam. The crew standing by the loco saw me and got out of the cab to pose. Note the vulture above .







Marvellous. I don't know much about Indian engines but the middle one looks as if it could have been British-built.

What year was that?

Link to comment
Share on other sites

10 minutes ago, Athy said:

Marvellous. I don't know much about Indian engines but the middle one looks as if it could have been British-built.

What year was that?

It was in 1985 I have corrected the post. The system was certainly British built and most of the stock looked pre independence.

  • Greenie 1
Link to comment
Share on other sites

15 hours ago, PeterScott said:

On this day in 2011




spacer.pngActon Bridge T&M



Front deck design giving almost step-free access from the front cabin, and so a deck that is lower than the waterline, and so can't drain directly into the canal: it has a channel through the boat and water is eventually pumped out from the engine bilge. Unless it is blocked by leaves of course.



It's one of the advantages of the Ham&Baker paddlegear, that there is no need for large waterfalls (eg Rochdale 9 below) to threaten to fill the front deck of modern leisureboats.



P4180344s.jpg.22881249329136e535c11095d4e8f217.jpgP4097772s.jpg.02443ef27f4369090f76164f7d997b54.jpg

I don't think that it is Ham and Baker that avoids that issue - just designs with alternative overflows. Some canal builders opted for 'over the top gate' as a simple solution - other have  bywashes and others drain over the top of the ground paddle into the chamber. All have their pluses and minuses.

Edited by Mike Todd
Link to comment
