Piran

all my pumps have stopped working at once

Featured Posts

All my water pumps for bringing water to the taps and water out of the boat have stopped working at once. I have full solar charge, lights are on and all other electrical outlets seem to be working.

I have turned the batteries on and off and checked my fuse box (it hadn't flicked down but I tripped it anyway but no luck).

Share this post


Link to post
Share on other sites

Frozen up already?

13 minutes ago, Piran said:

All my water pumps for bringing water to the taps and water out of the boat have stopped working at once. I have full solar charge, lights are on and all other electrical outlets seem to be working.

I have turned the batteries on and off and checked my fuse box (it hadn't flicked down but I tripped it anyway but no luck).

Tripped what? the mains RCD? Can't see the connection.

Share this post


Link to post
Share on other sites
17 minutes ago, Piran said:

All my water pumps

Have you definitely got more than 1 pump, if so how many? Do you know where they are located, can you get to them? If multiple pumps I would have guessed each one would be fused separately...



The reason I ask is most of the setups I've seen, 1 pump providers hot and cold water to multiple taps and / or shower.

Edited by Quattrodave
typo

Share this post


Link to post
Share on other sites
2 minutes ago, Quattrodave said:

Have you definitely got more than 1 pump, if so how many? Do you know where they are located, can you get to them? If multiple pumps I would have guessed each one would be fused separately...

I am guessing that the OP has a domestic water pump, shower extraction pump and a bilge pump.  As you suggested, it is likely that there are 3 separate fuses/circuit breakers.

Share this post


Link to post
Share on other sites
Just now, PhilR said:

I am guessing that the OP has a domestic water pump, shower extraction pump and a bilge pump.  As you suggested, it is likely that there are 3 separate fuses/circuit breakers.

Mine are all on seperate trips and I would hope that other boats are. I have around 20 12 volt trips.

Share this post


Link to post
Share on other sites
38 minutes ago, Piran said:

All my water pumps for bringing water to the taps and water out of the boat have stopped working at once. I have full solar charge, lights are on and all other electrical outlets seem to be working.

I have turned the batteries on and off and checked my fuse box (it hadn't flicked down but I tripped it anyway but no luck).

Please clarify that you mean the bilge pump, shower pump and domestic water pump or if you mean nothing comes from the taps. If the latter check that you have 12V at the connectors close to the pump with the pump still connected. If so I fear its either the pump has packed up (brushes) or the pressure switch has failed open. If the former you need to start checking voltages with things connected turned on while working down the circuit to find where the voltage goes away

Share this post


Link to post
Share on other sites

How do you know the pump that takes water out isn’t working if the pump bringing water in doesn’t work? Is there any water in the tank?

Share this post


Link to post
Share on other sites

Yes there is definitely water in the tank. Filled it up a couple of days ago

Edited by Piran
  • Greenie 1

Share this post


Link to post
Share on other sites
28 minutes ago, Tony Brooks said:

Please clarify that you mean the bilge pump, shower pump and domestic water pump or if you mean nothing comes from the taps. If the latter check that you have 12V at the connectors close to the pump with the pump still connected. If so I fear its either the pump has packed up (brushes) or the pressure switch has failed open. If the former you need to start checking voltages with things connected turned on while working down the circuit to find where the voltage goes away

My engine bilge pump is working. However my shower pump, domestic water pump and back boiler pump have failed.



nothing is coming from the taps and nothing is able to be pumped out.





Im not really sure what I am doing but I turned the batteries on and off and tripped the fuse box (I have one central fuse). Immediately after doing this the pumps didn’t start working). However, about ten minutes later they starting working for a brief period. I used the bath room sink tap, but when I went to pump it out the pumps all failed again

Edited by Piran

Share this post


Link to post
Share on other sites
10 minutes ago, Piran said:

My engine bilge pump is working. However my shower pump, domestic water pump and back boiler pump have failed.



nothing is coming from the taps and nothing is able to be pumped out.





Im not really sure what I am doing but I turned the batteries on and off and tripped the fuse box (I have one central fuse). Immediately after doing this the pumps didn’t start working). However, about ten minutes later they starting working for a brief period. I used the bath room sink tap, but when I went to pump it out the pumps all failed again



If you only have one central 12V fuse and no others then it is totally against the RCD and BSS fail. i suspect you are confusing a mains (240V AC) consumer unit with the 12V fuse/mcb distribution board.



Photos of this single fuse please. I suspect the bilge pump just might be wired to the engine battery and you may have a flat domestic battery bank so voltage at the DOMESTIC batteries with the pump turned on.





  • Greenie 1

Share this post


Link to post
Share on other sites

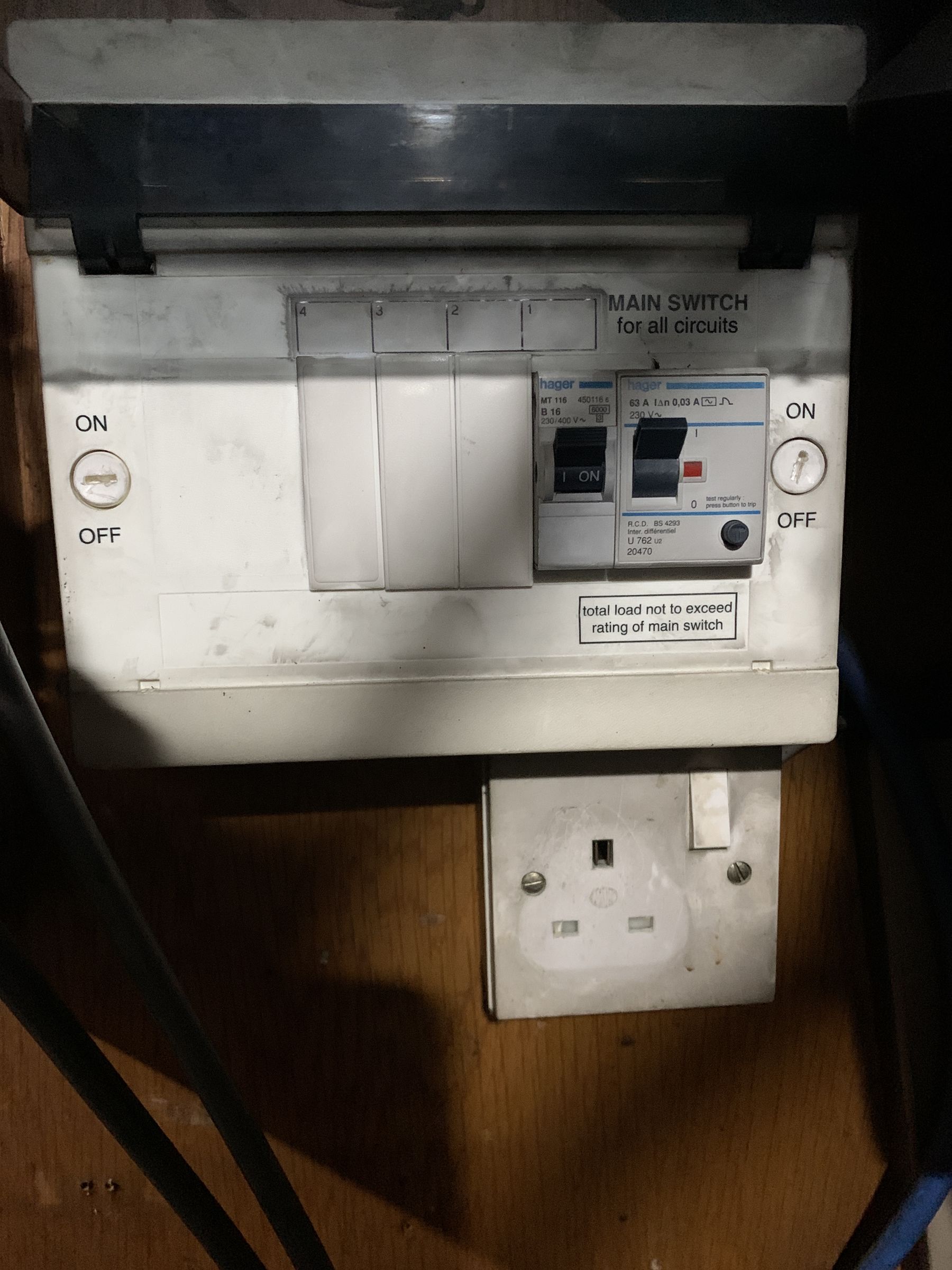

That is the shoreline and or inverter output consumer unit. What you need to look for are a car type fuse box, a metal/plastic panel with lights and/or buttons and/or switches in it arranged in rows and columns or if its an old boat a very old fashioned mains consumer unit with a  big red on/off switch and a row of fuses. I bet you don't have a hand held multi-meter or voltmeter so can't measure the domestic battery voltage.



Perhaps something a bit like this

Marine 6 Gang Fuse Switch Panel, 12 Volt, Marine, Caravan, Motorhome, Narrowboat

Edited by Tony Brooks
Added "and/or inverter output"

Share this post


Link to post
Share on other sites

That  appears to be an ac fusebox with a 16a breaker and a 63a RCD. Boubt that it's anything to do with your pump(s)



To clarify, I meant the photos posted by OP not Tony Brooks

Edited by Slim

Share this post


Link to post
Share on other sites

You have a 240v circuit and 12v circuit. Show us the 12v board. And listen to Tony B.

Edited by mark99

Share this post


Link to post
Share on other sites
4 minutes ago, Piran said:

Thanks so much! Ok so I have found it I think


Unscrew the knob and lift the cover off, and there should be fuses inside it.

Edited by TheBiscuits
Stupid mobile phone
  • Greenie 1

Share this post


Link to post
Share on other sites

What is weird is that the pumps have started working again, then all stoped, and now have started working again. Can it be a fuse problem if this is happening.


Our smart gauge says we have 81% charge in our batteries. It has been a sunny day and we have four solar panels, lights are all working etc



Share this post


Link to post
Share on other sites

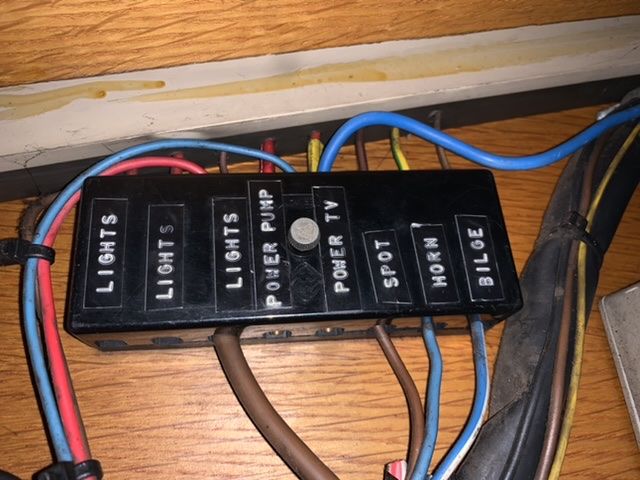

Good - unscrew the silver "button" in the centre and lift the cover off. I expect the under the "power pump" label you will find a fuse that hopefully is blown. Why hopefully? - because if its not you have fault finding to do.



Beware. If your domestic batteries are flat the pumps will draw more current and may blow a new fuse

1 minute ago, Piran said:

What is weird is that the pumps have started working again, then all stoped, and now have started working again. Can it be a fuse problem if this is happening.


Our smart gauge says we have 81% charge in our batteries. It has been a sunny day and we have four solar panels, lights are all working etc



In that case check where the cable join the fuse holders are clean and secure i.e. not lose and waving about.



batteries are OK then

Edited by Tony Brooks

Share this post


Link to post
Share on other sites

1 wire at the fuse panel, but 3 pumps. I'd be looking for a corroded join or splice in the cable, possibly at the pump physically closest to the fuse panel...

Share this post


Link to post
Share on other sites
9 minutes ago, Piran said:

Ok, will do!

If the fuses are ceramic torpedo shaped "euro" fuses bend the bronze strips that have holes in them for the fuse tip together a little and then plan to replace the whole thing for modern plug in fuses.

Share this post


Link to post
Share on other sites
4 minutes ago, Tony Brooks said:

Then plan to replace the whole thing for modern plug in fuses.

Agreed, a damn good move!

Share this post


Link to post
Share on other sites

Thanks very much all of you. I will do those things tomorrow and will definitely be looking to update the entire fuse system ASAP
