What’s this called

[bigcol]

Hi

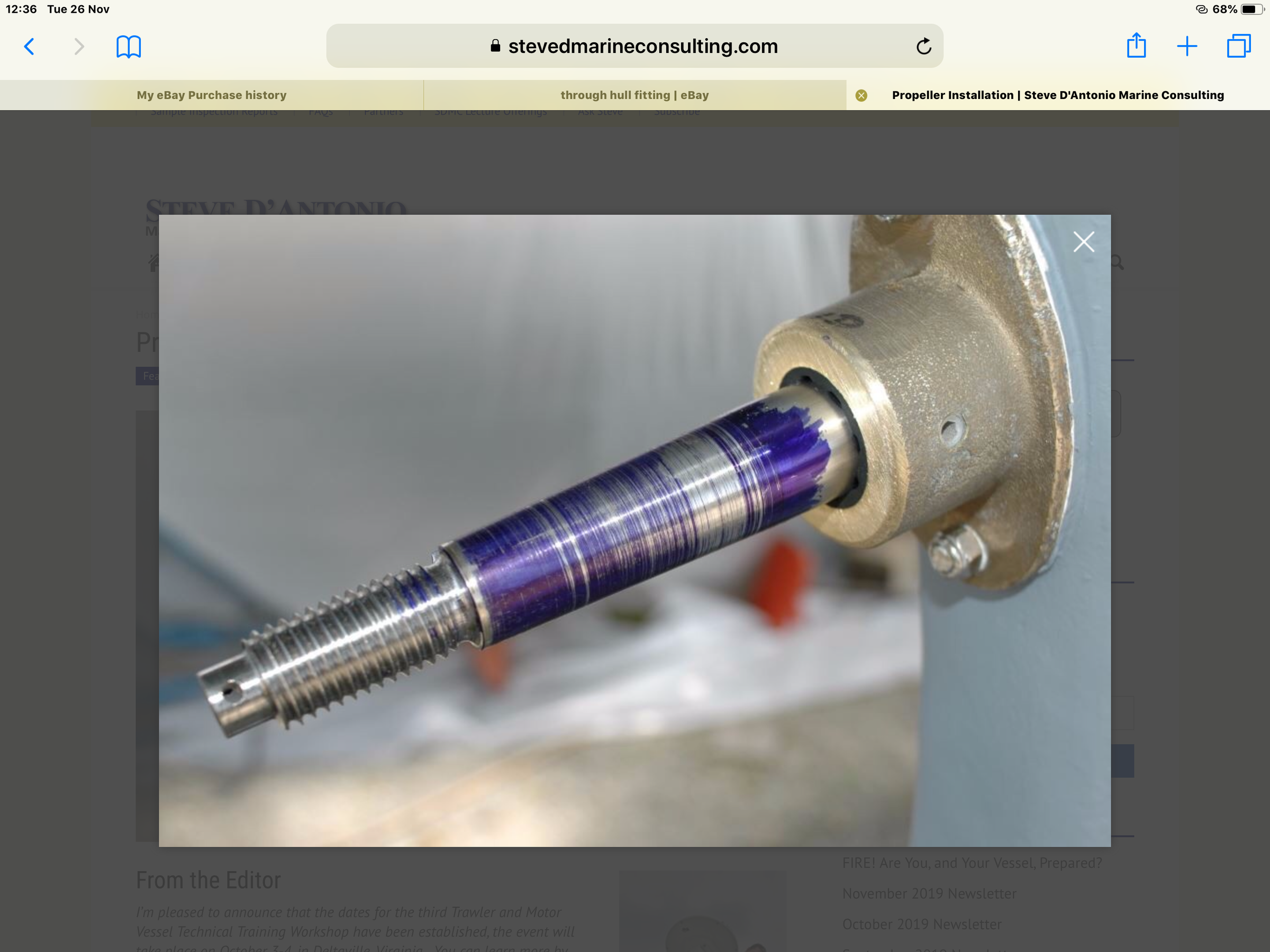

somone in the marina has had his wooden broads boat out on the hard as he lost drive.

when boat came out, this part slightly different but does the same job. He wants to replace the part.

but what’s it called please,like to help out the guy. It’s the part that attaches to Hull,and keeps the shaft true

[BEngo]

Stern bearing.  May be rubber lined (cutless bearing) or whitemetal.  Is there a grease lubricator inside?  If so it is whitemetal.

Iz there a water inlet on the far side?  That would be for a cutless bearing.

N

[Alan de Enfield]

Stern Bearing - these guys will sort you out



https://www.lancingmarine.com/pricebookpages/page40.html

[matty40s]

If it helps, he may have lost drive be cause the propellor has fallen off, he probably needs one of those too.

[Alan de Enfield]

2 minutes ago, matty40s said:

If it helps, he may have lost drive be cause the propellor has fallen off, he probably needs one of those too.



No problem, these guys will sort him out :



https://www.lancingmarine.com/pricebookpages/page41.html

[Slim]

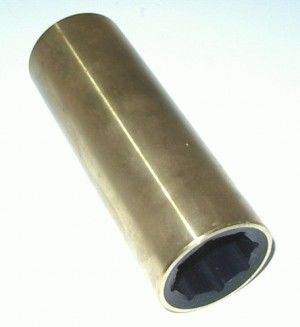

Looking at the photo I would say it was a water lubricated Cutless bearing. You can see the segments clearly.

[ditchcrawler]

24 minutes ago, Slim said:

Looking at the photo I would say it was a water lubricated Cutless bearing. You can see the segments clearly.



[WotEver]

34 minutes ago, Alan de Enfield said:



No problem, these guys will sort him out :



https://www.lancingmarine.com/pricebookpages/page41.html

Not an Axiom then?

[matty40s]

59 minutes ago, bigcol said:



Doesn't look like an Axiom to me...perhaps an Axigone...

Edited November 26, 2019 by matty40s

[pearley]

2 hours ago, ditchcrawler said:



The Volvo Penta and Vetus ones look like this.

You remove the 3 Allen screws and knock the old one out.



[magnetman]

The photo in the OP is not the actual item.





[Alan de Enfield]

2 minutes ago, magnetman said:

The photo in the OP is not the actual item.





Which he kindly said "its like this but different"

That is why I gave him the list of various types and sizes so he could speak to the supplier and identify which one he actually had.

[magnetman]

The item does not belong to the OP.

[Jim Riley]

18 hours ago, magnetman said:

The item does not belong to the OP.

It might belong to his mate though, the one with the problem.
