Martin Kedian

Over plating

Featured Posts

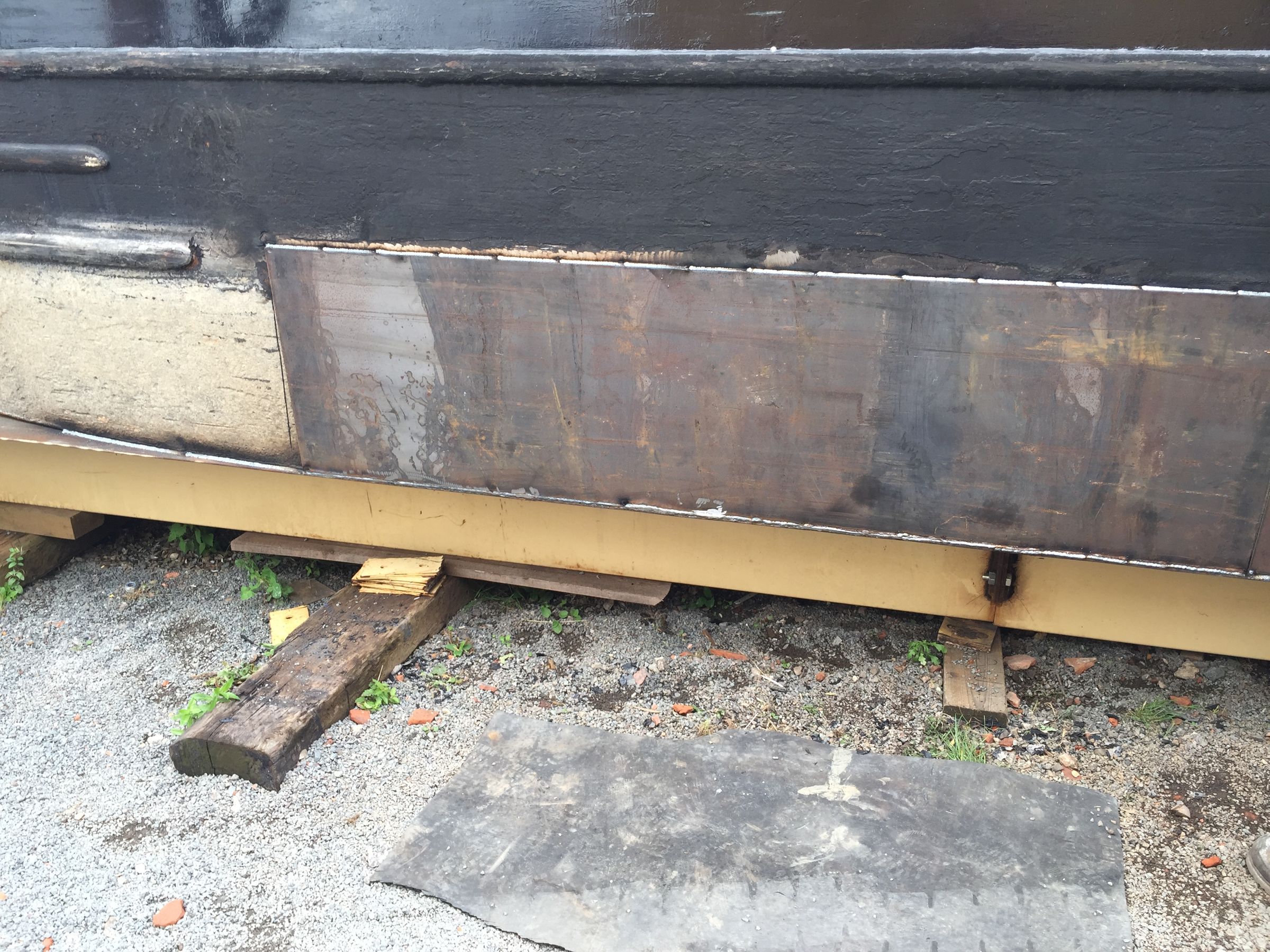

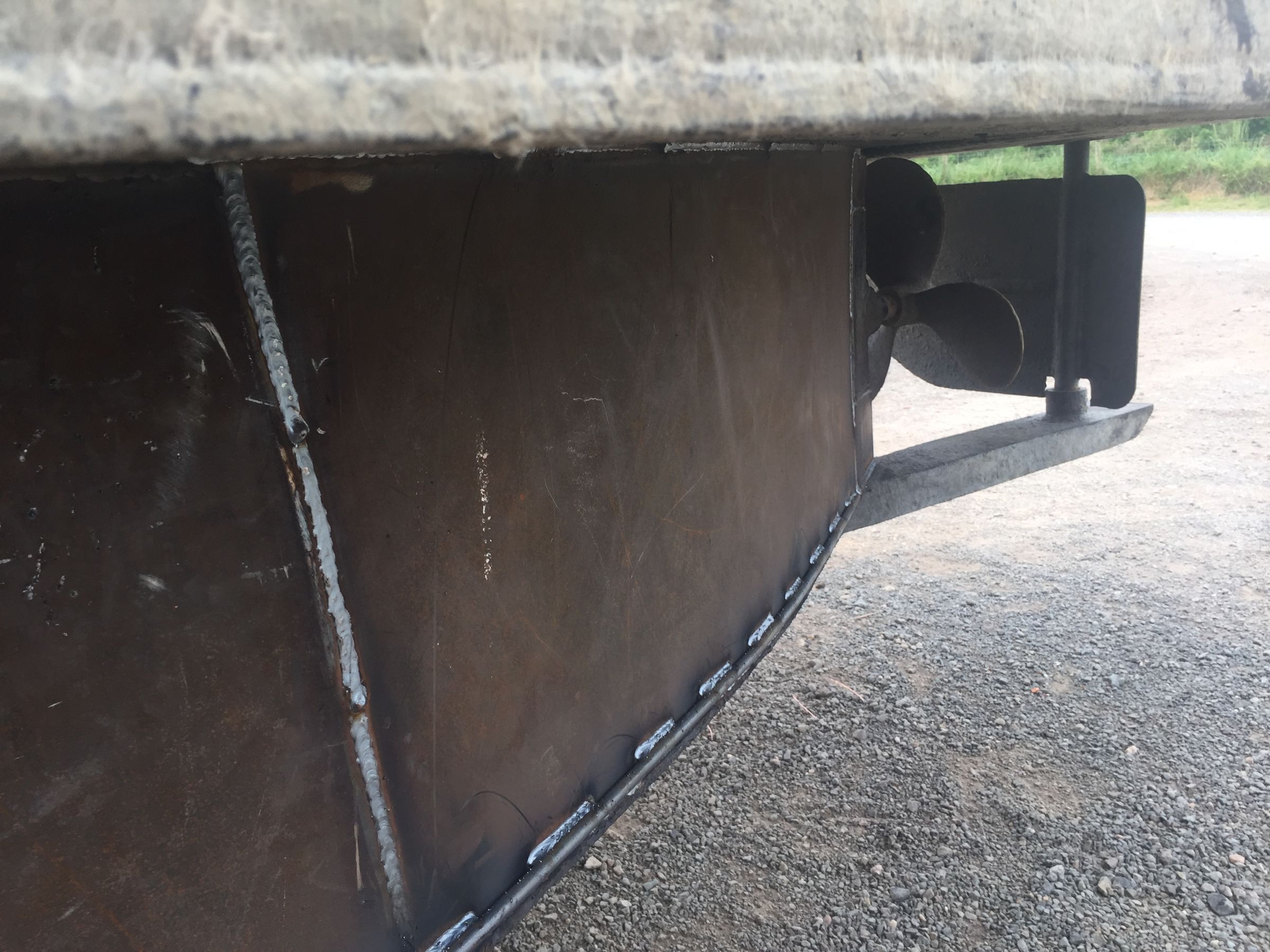

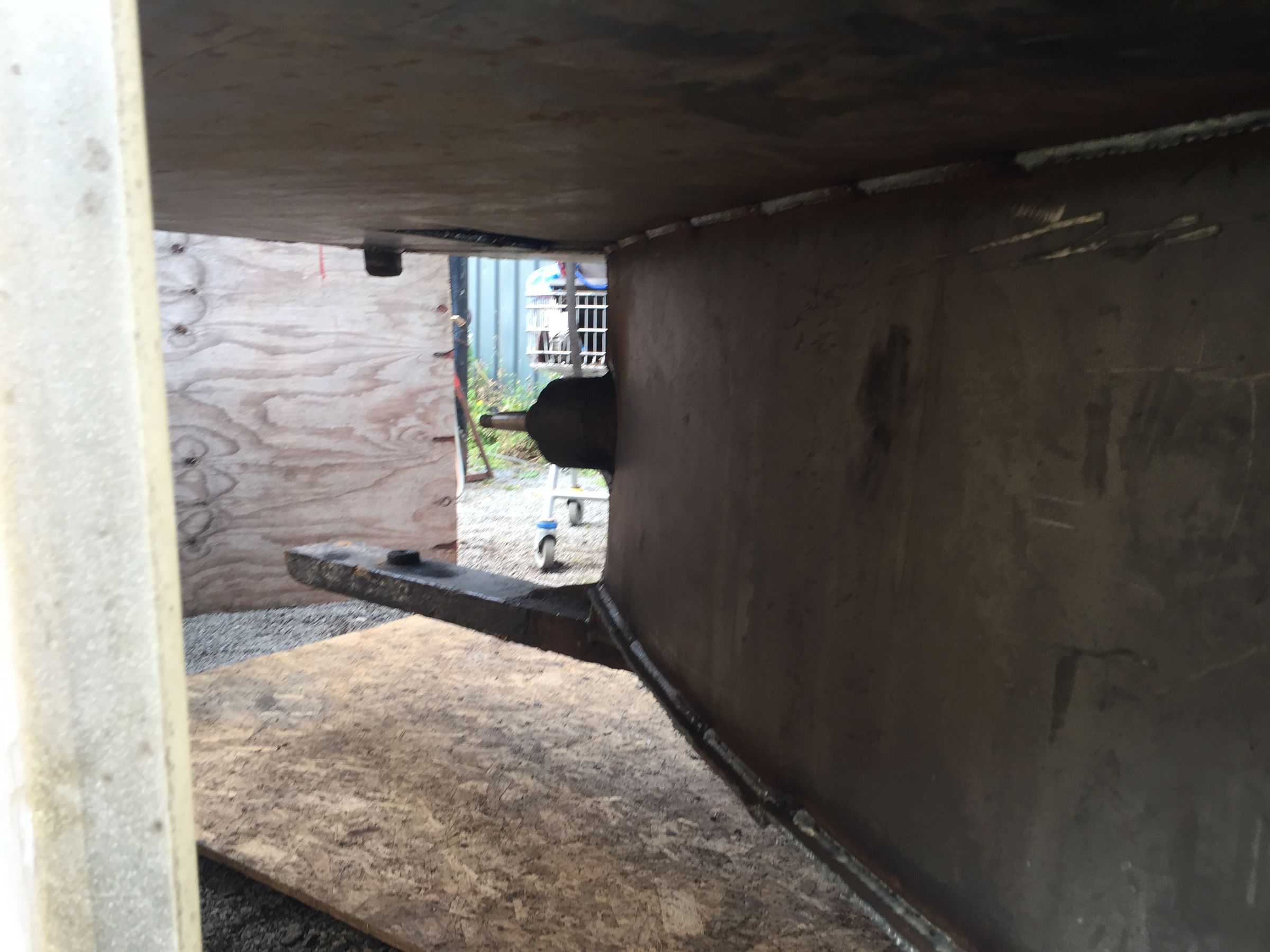

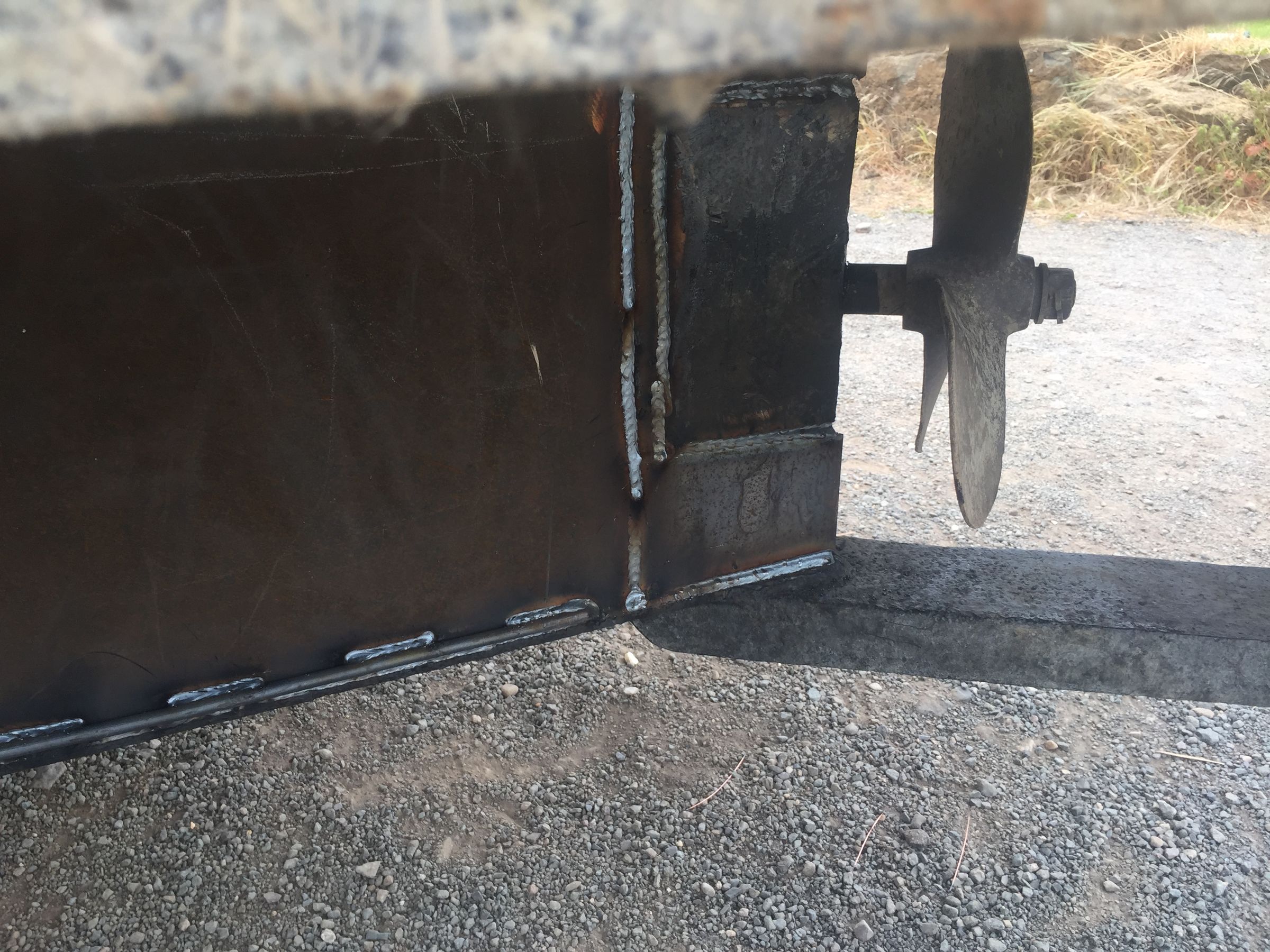

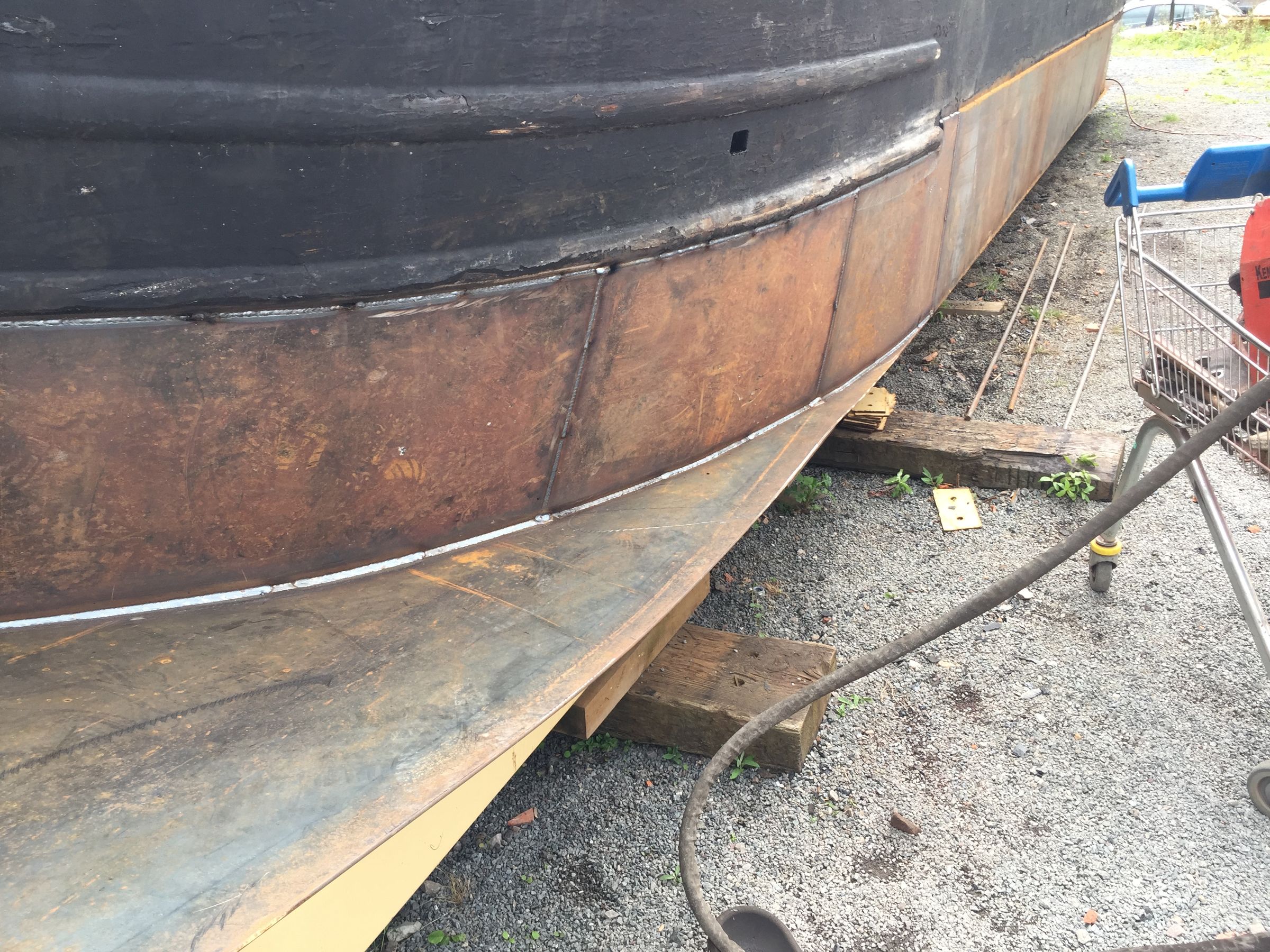

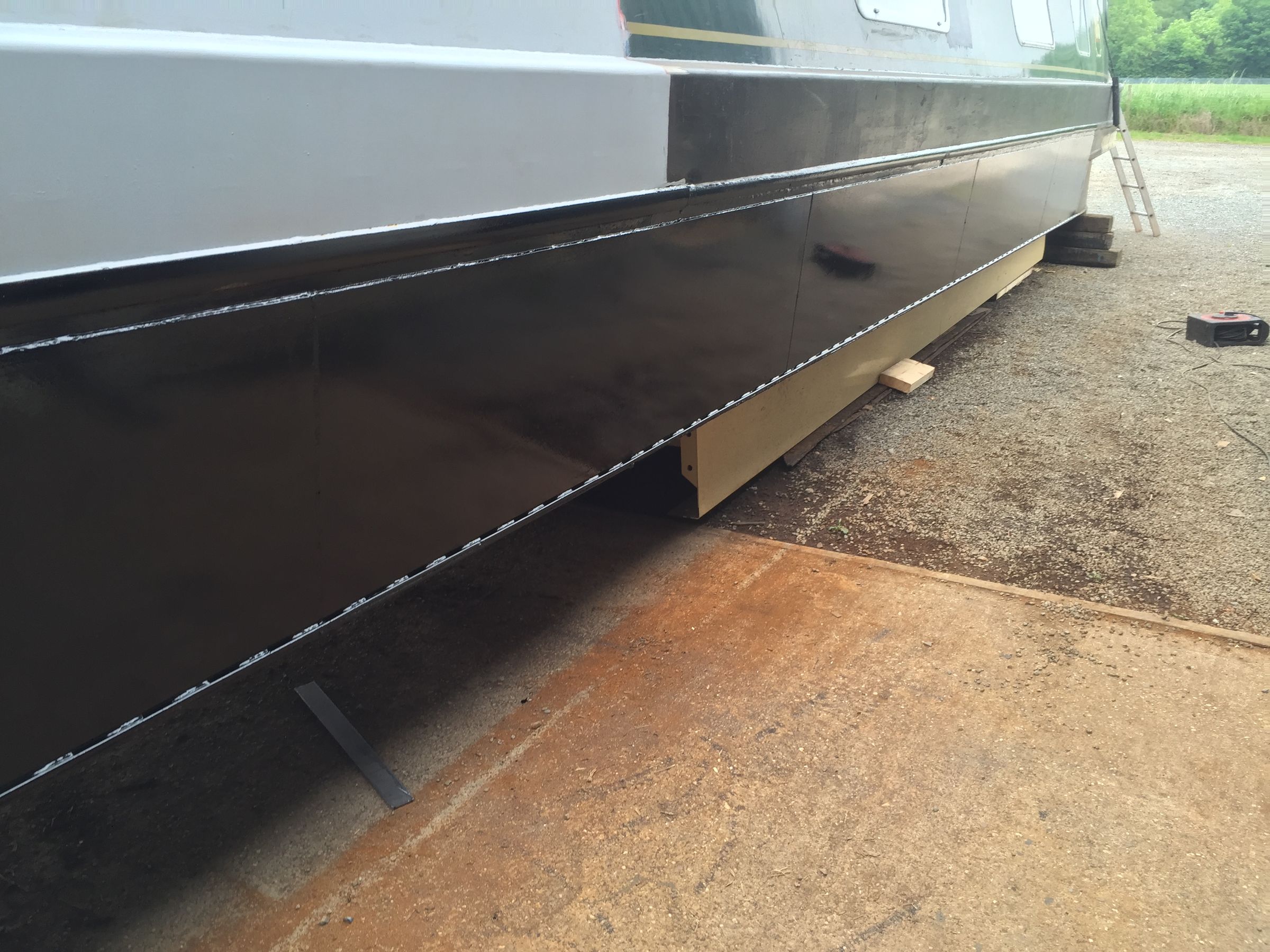

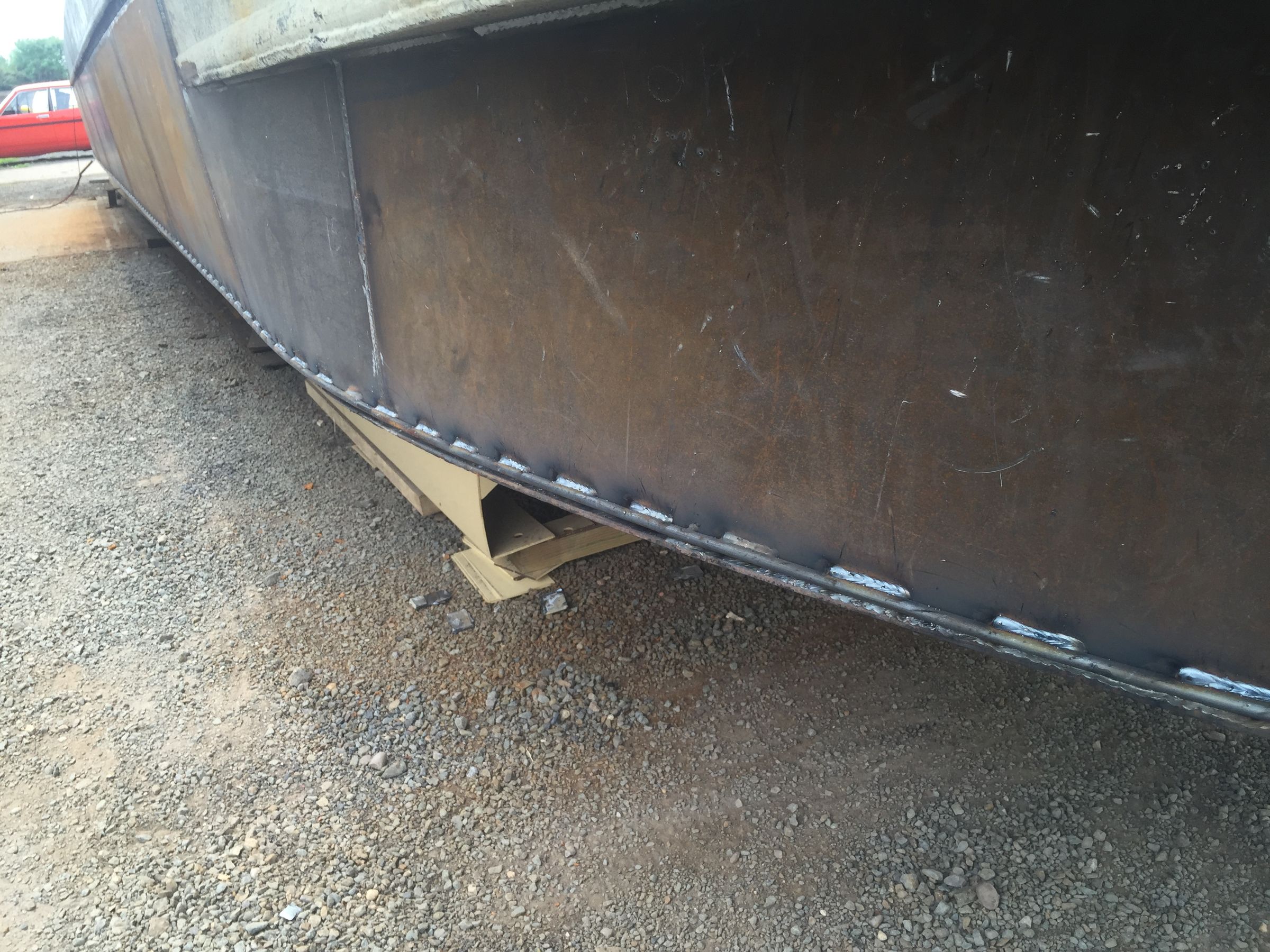

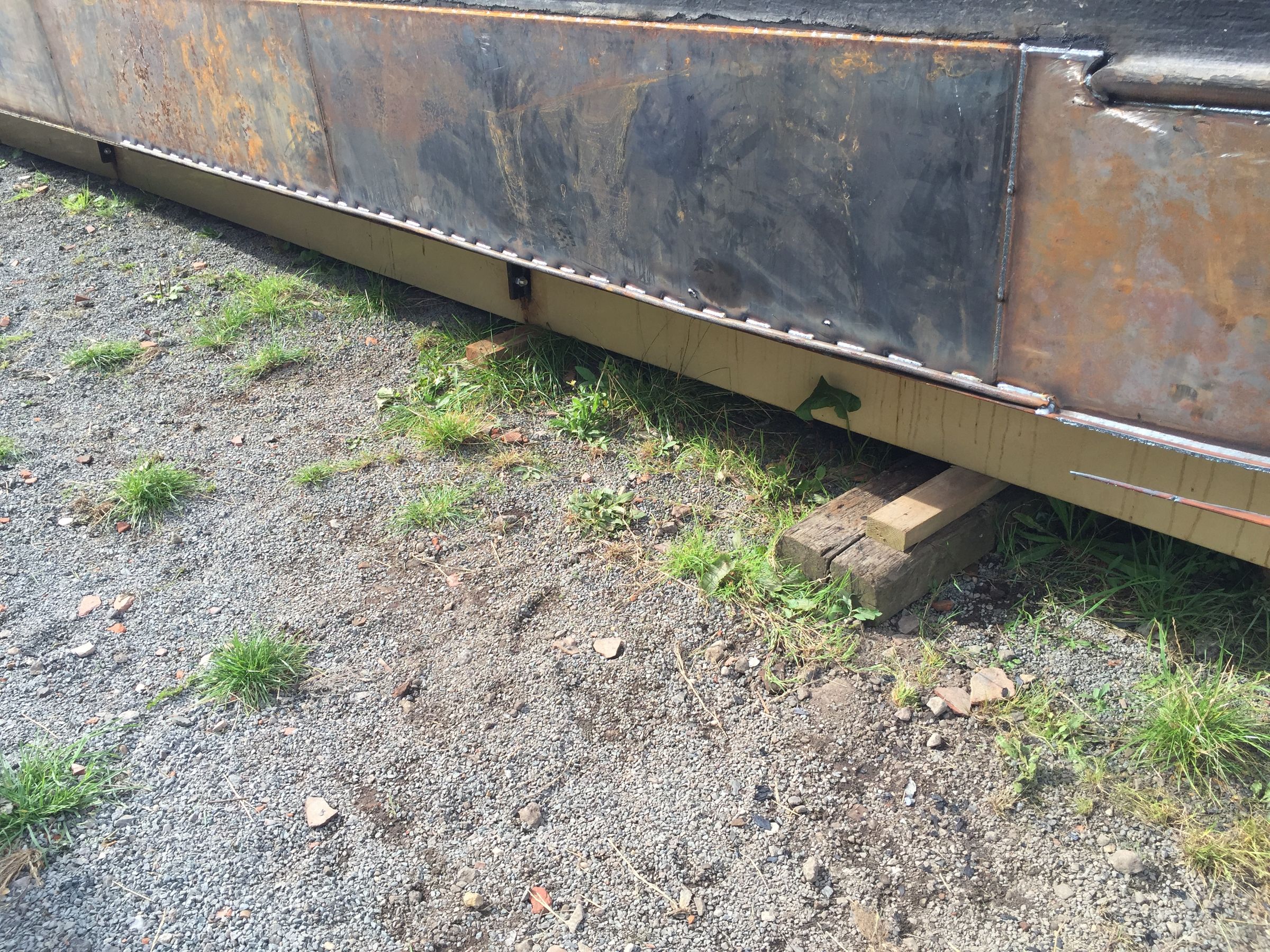

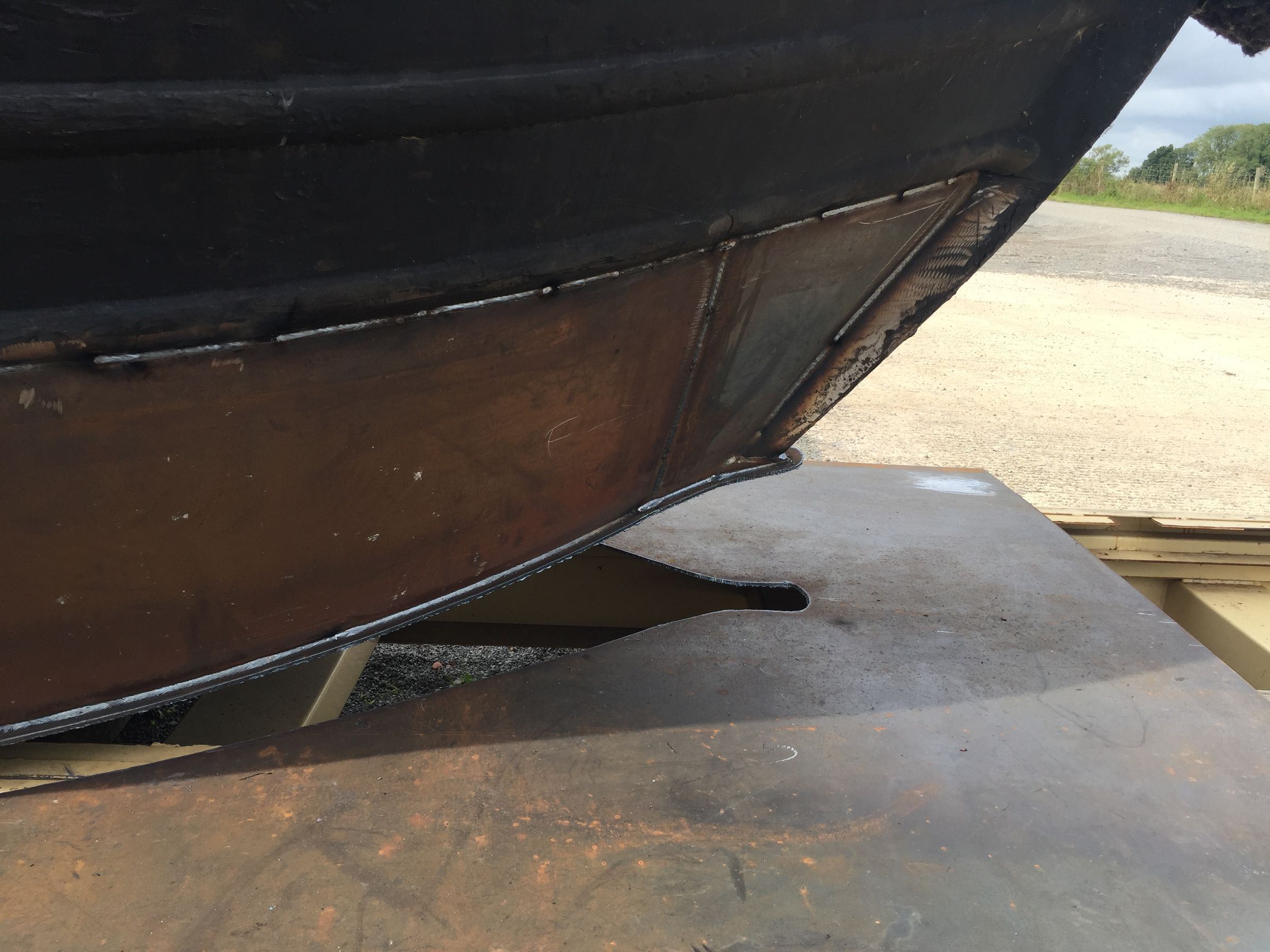

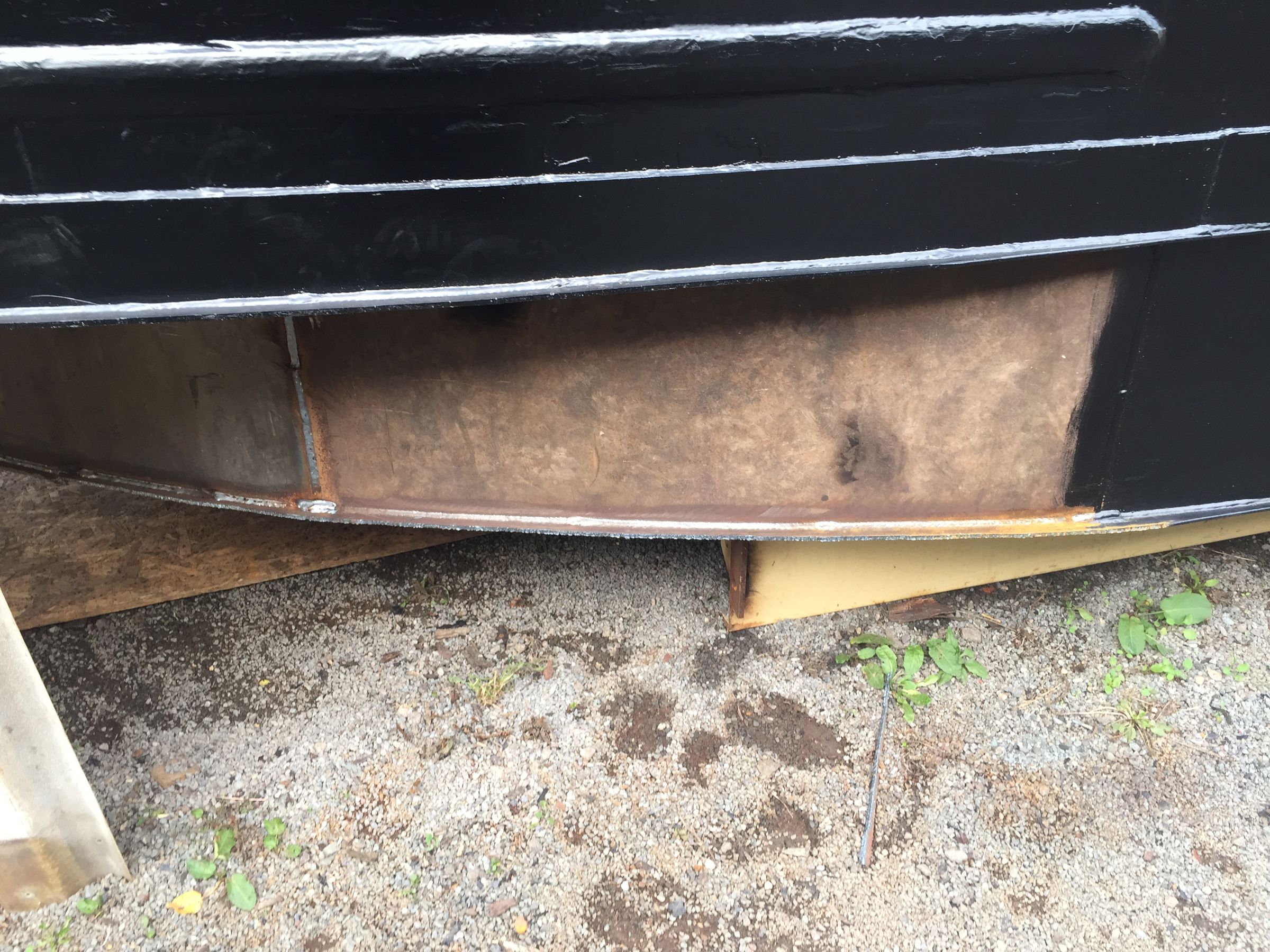

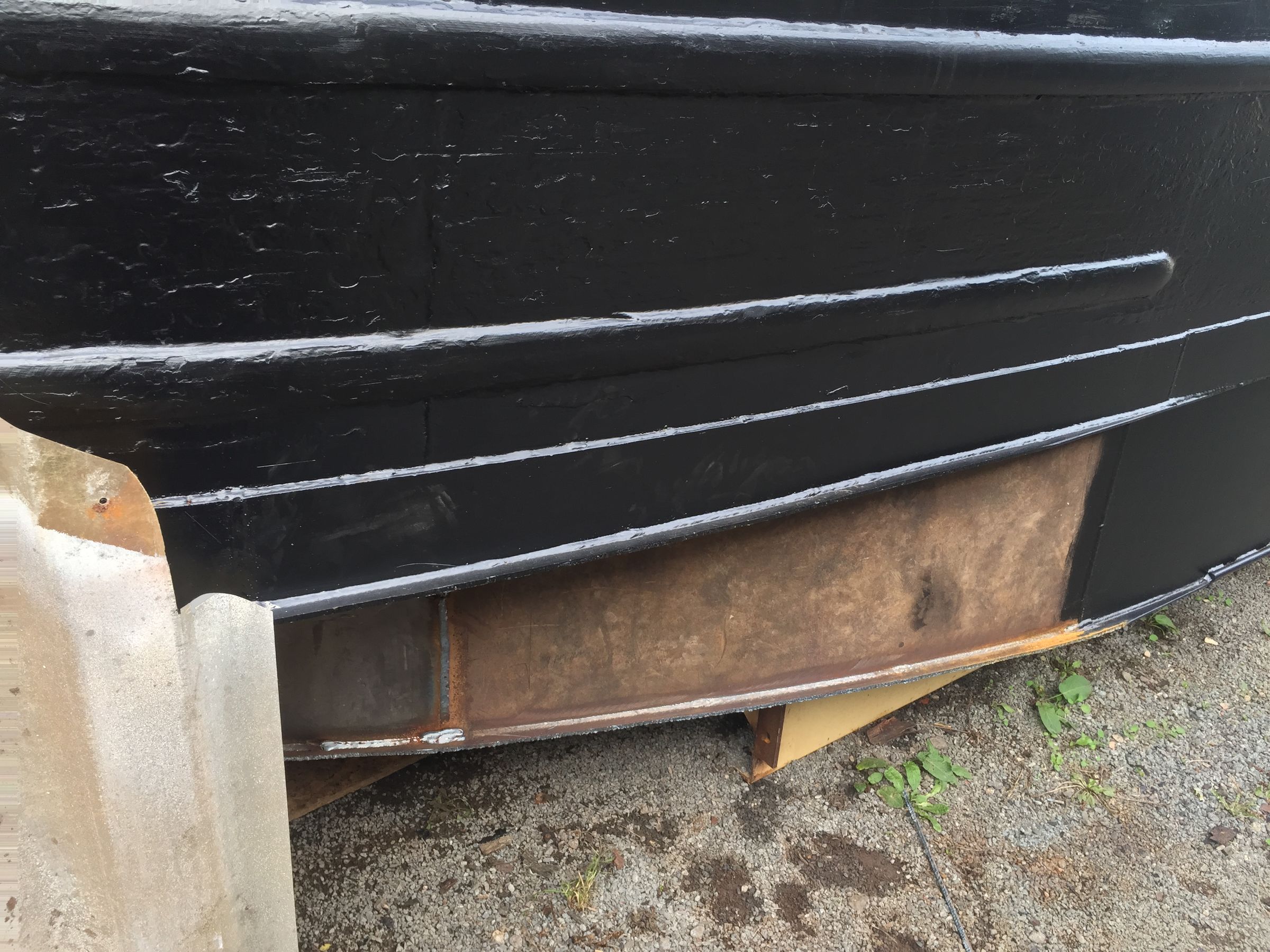

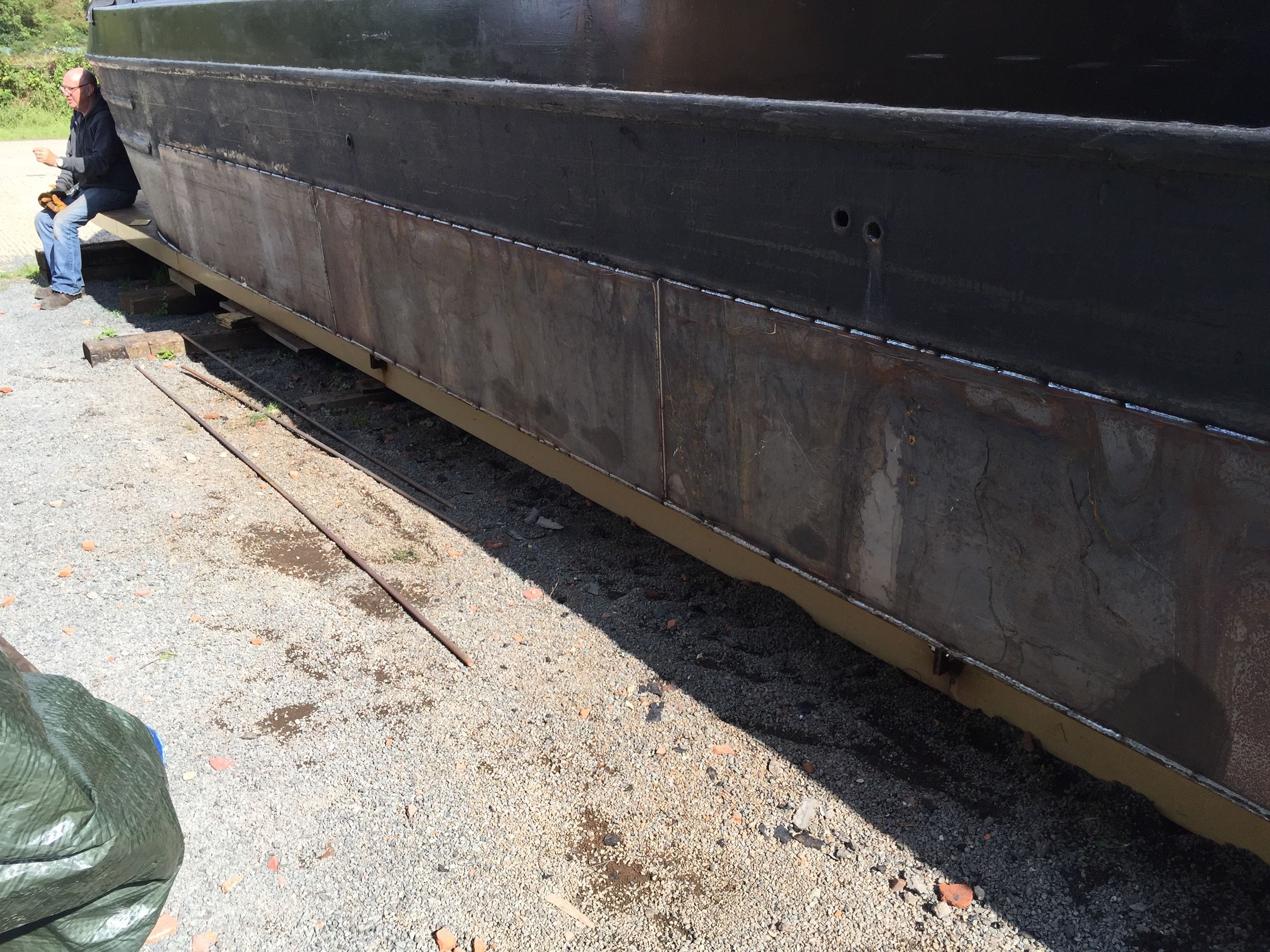

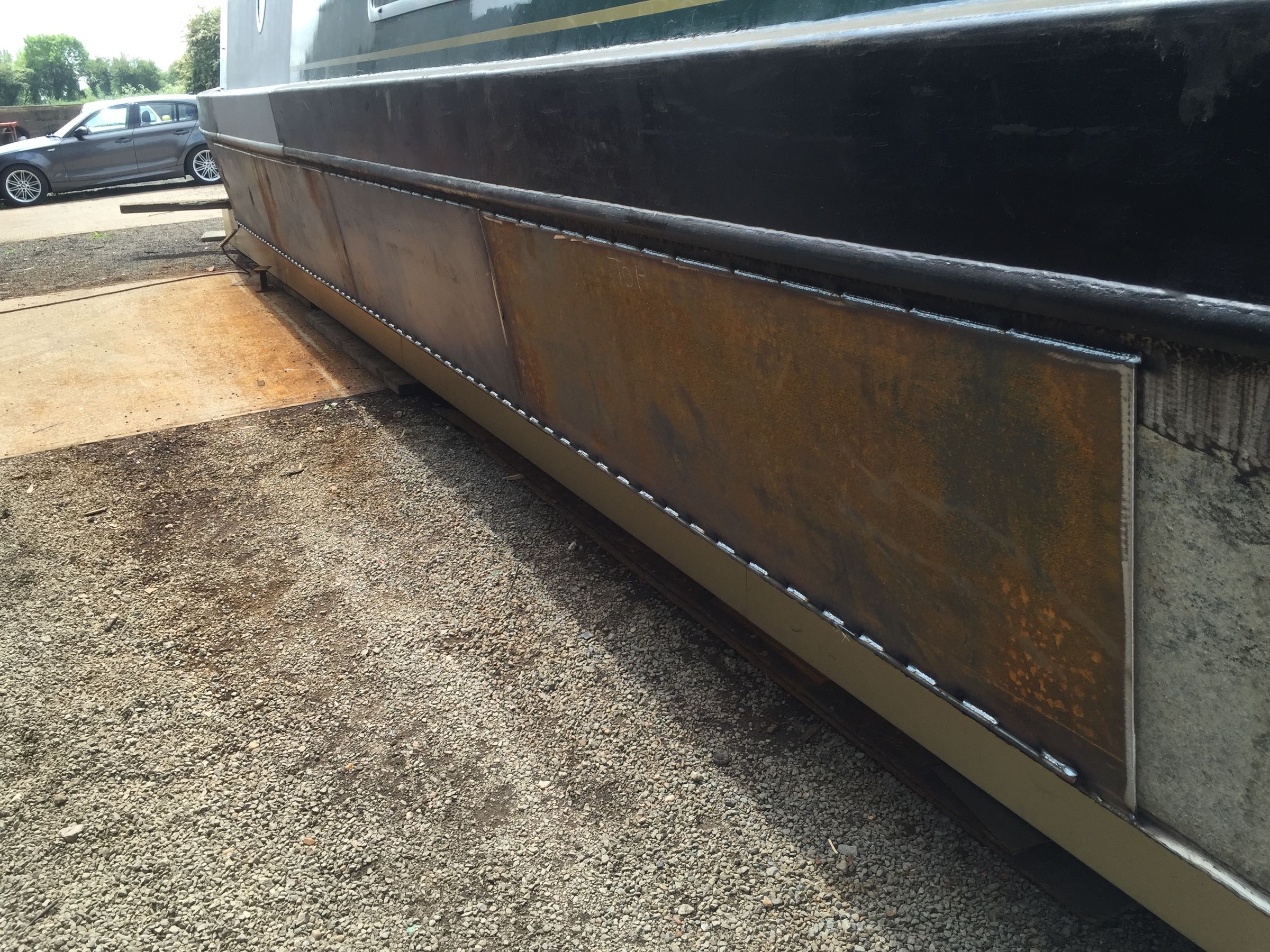

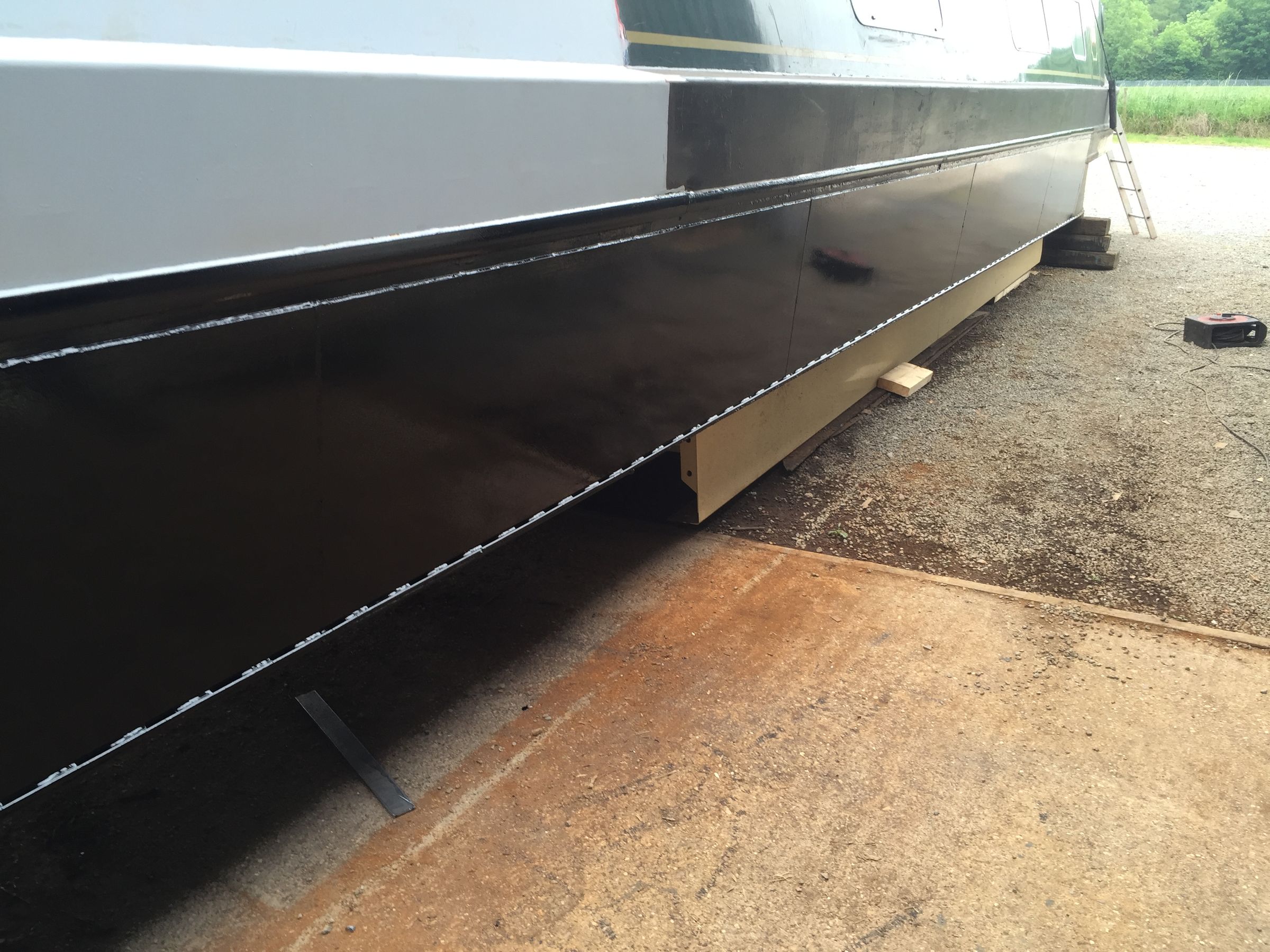

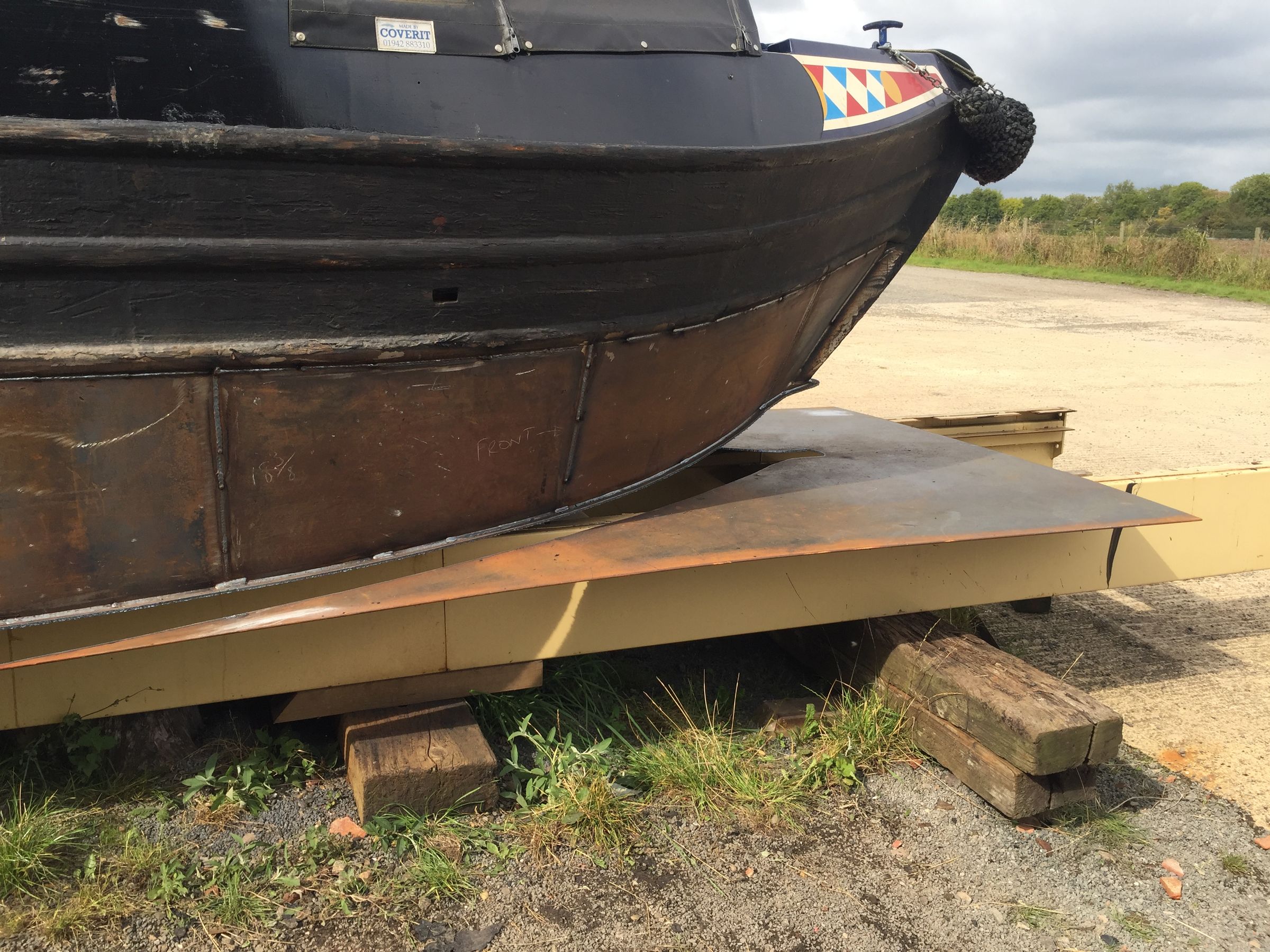

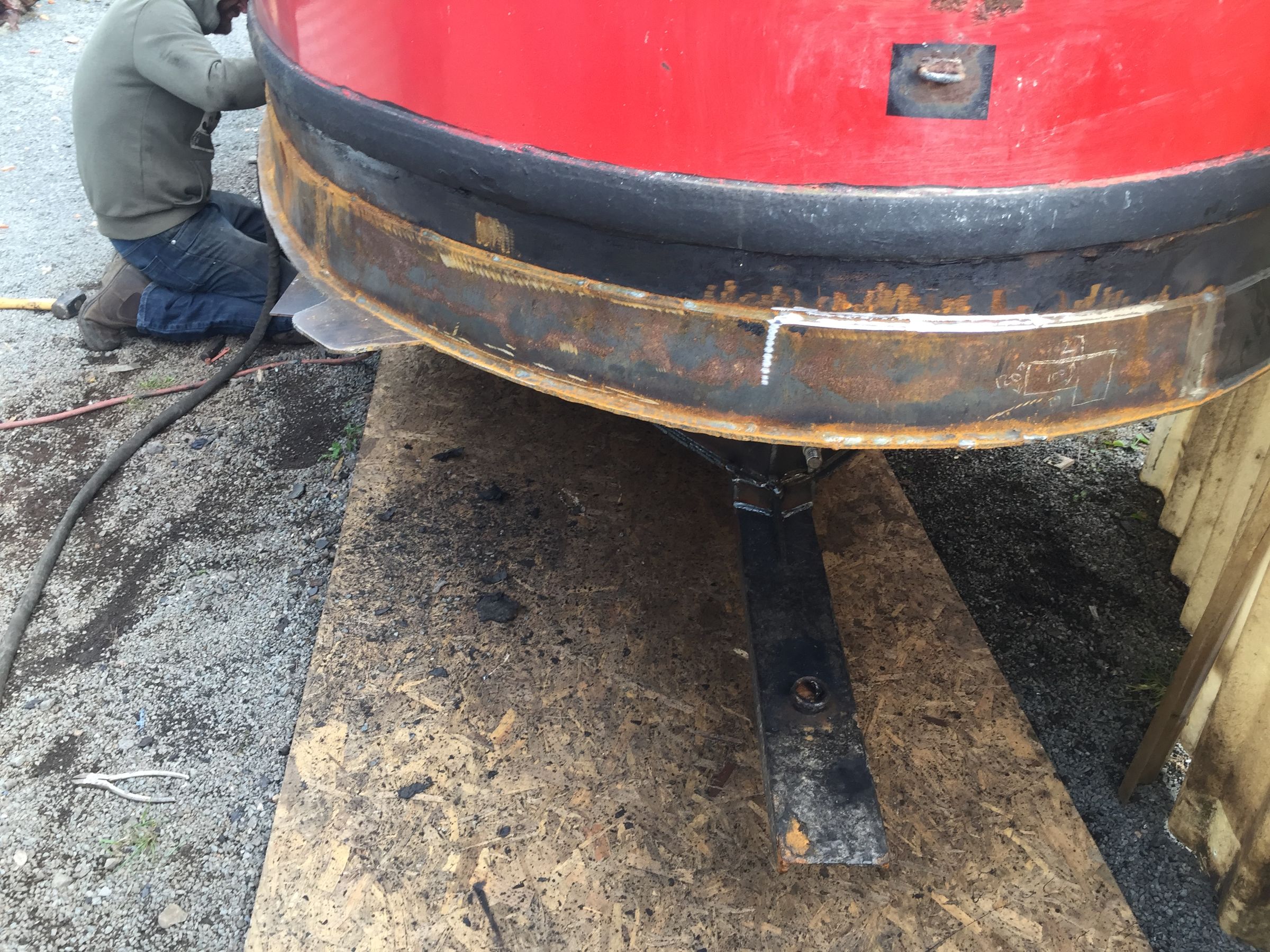

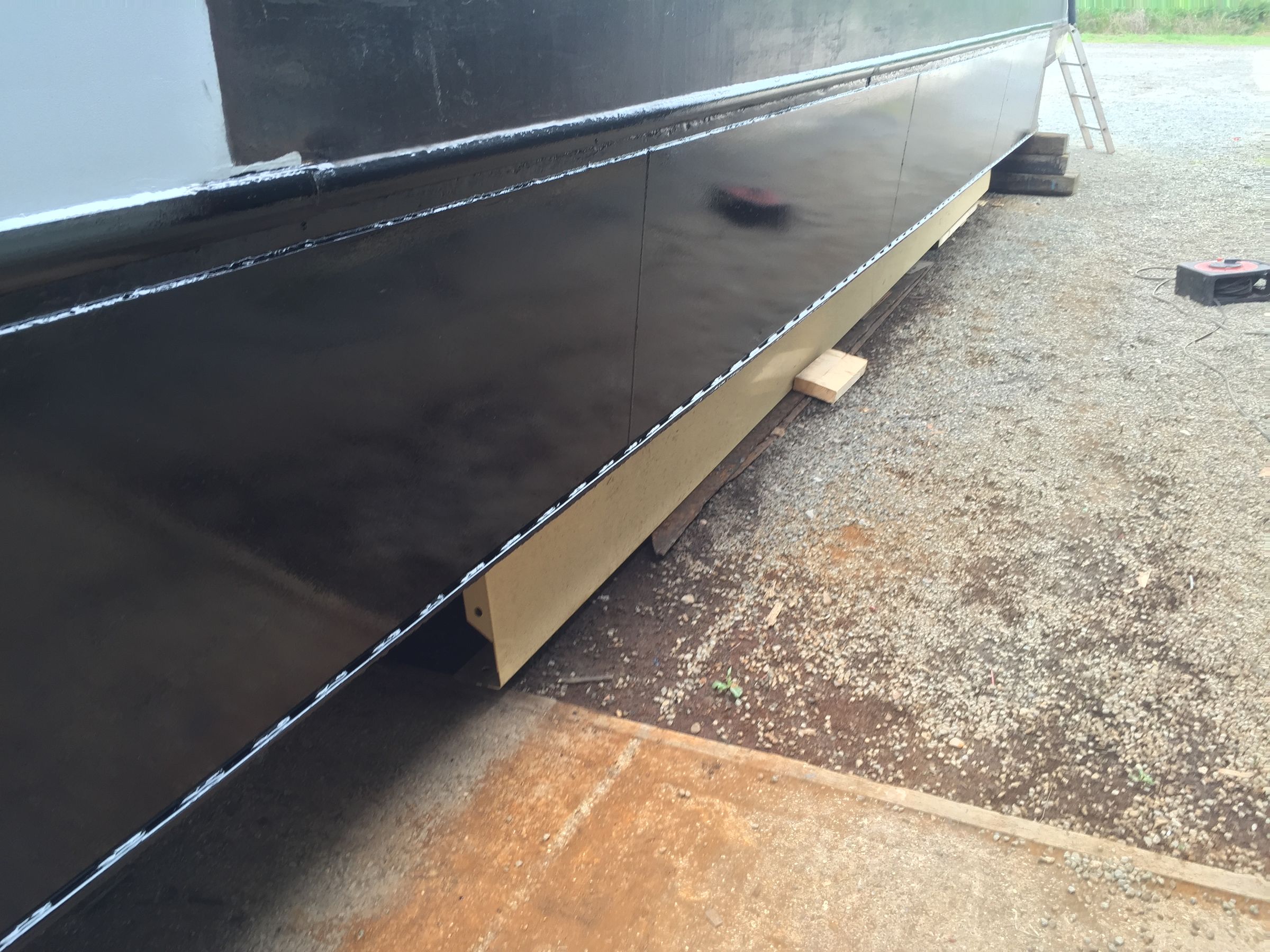

I have lots of pictures of work that we have done for customers over plating boats I know this is of interest to many and often produces many questions and options I would be happy to post some that go through the process

i don’t however want to stir up the whole thing about advertising

please advise if this is acceptable

Share this post


Link to post
Share on other sites

Personally I’d love to see it but I wouldn’t want some over-active mod giving you another warning point. Perhaps we’ll have to wait for one of them to comment.

Share this post


Link to post
Share on other sites
1 minute ago, LadyG said:

Is there no one else around :) !

Carry on Martin

So is that a “Yes, it’s ok”?

Share this post


Link to post
Share on other sites

Hi Martin,

What are your opinions on the benefits of overplating against replating, is the latter only of consideration on historic overlapped plated boats or is it relevant to todays repair methods as well.

Keep posting, I like your stuff.

  • Greenie 2

Share this post


Link to post
Share on other sites
2 minutes ago, matty40s said:

Hi Martin,

What are your opinions on the benefits of overplating against replating, is the latter only of consideration on historic overlapped plated boats or is it relevant to todays repair methods as well.

Keep posting, I like your stuff.

I would be interested in in Martin's  Views on that subject.

Share this post


Link to post
Share on other sites

Martin,

Can you please clarify, (if you are prepared to!), whether you have just been politely "verbally" warned about you previous postings, or whether you have actually been allocated an actual formal warning point.

If the latter, I feel it is a very unjustified and unhappy situation.

Share this post


Link to post
Share on other sites

The problem with re plating is cost where extensive pitting or plate loss occurs this requires the internal fit out to be removed because of the risk of fire and damage often it is not a small area but large sections that would need to be replaced making it uneconomical

mover plating achieves a good result and is kinder and less invasive

there are many opinions regarding this but I have done boats that twenty years later are still afloat

Just now, alan_fincher said:

Martin,

Can you please clarify, (if you are prepared to!), whether you have just been politely "verbally" warned about you previous postings, or whether you have actually been allocated an actual formal warning point.

If the latter, I feel it is a very unjustified and unhappy situation.

I was unsure to start with but have been informed I have been advised in a friendly way

Share this post


Link to post
Share on other sites
41 minutes ago, Martin Kedian said:

I have lots of pictures of work that we have done for customers over plating boats I know this is of interest to many and often produces many questions and options I would be happy to post some that go through the process

i don’t however want to stir up the whole thing about advertising

please advise if this is acceptable

I'm always interested to see pictures of work on boats and I imagine that since your order books are probably full your intention isn't to advertise. However, last time I saw pictures of your work on here I made the mistake of questioning the design as it contradicted Beta's recommendations and I then got jumped on and told to apologise by some overly sensitive members who for some reason felt offended on your behalf and took it upon themselves to jump in and defend you. I noted that you didn't seem particularly bothered yourself!



I'm sure your work is of the highest standard, but I don't think anyone's work is sacrosanct or above scrutiny, however well-respected they happen to be.

Edited by blackrose

Share this post


Link to post
Share on other sites

Not a stupid question as a 50 foot boat sits 2 inches deeper as a rule of thumb we advise some ballast may need to be removed we also check outlets and drain holes meet the freeboard requirement

and raise the weed hatch to comply with the regs

2 minutes ago, blackrose said:

I'm always interested to see pictures of work on boats and I imagine that since your order books are probably full your intention isn't to advertise. However, last time I saw pictures of your work on here I made the mistake of questioning the design as it contradicted Beta's recommendations and I then got jumped on and told to apologise by some overly sensitive members who for some reason felt offended on your behalf and took it upon themselves to jump in and defend you.



I'm sure your work is of the highest standard, but I don't think anyone's work is sacrosanct or above scrutiny, however well-respected they happen to be.

Happy for comments

Dear guys and girls going out now will catch up later with any replies and questions

Share this post


Link to post
Share on other sites
8 minutes ago, rusty69 said:

Many thanks.



Do you remove internal ballast before refloating (sorry for the stoopid question).



3 minutes ago, Martin Kedian said:

Not a stupid question as a 50 foot boat sits 2 inches deeper as a rule of thumb we advise some ballast may need to be removed we also check outlets and drain holes meet the freeboard requirement

and raise the weed hatch to comply with the regs

Happy for comments

Thanks. So, you will refloat after overplating and then check/modify the outlets as required,or do the outlets get modified  beforehand because you already know what affect the additional steel will have,and then the owner may still need to remove ballast?

Share this post


Link to post
Share on other sites
3 minutes ago, rusty69 said:



Thanks. So, you will refloat after overplating and then check/modify the outlets as required,or do the outlets get modified  beforehand because you already know what affect the additional steel will have,and then the owner may still need to remove ballast?

of course.



Edited by cereal tiller

Share this post


Link to post
Share on other sites
8 minutes ago, rusty69 said:



Thanks. So, you will refloat after overplating and then check/modify the outlets as required,or do the outlets get modified  beforehand because you already know what affect the additional steel will have,and then the owner may still need to remove ballast?

We do all of the work before re floating usually no ballast needs removing

Share this post


Link to post
Share on other sites
3 minutes ago, Martin Kedian said:

We do all of the work before re floating usually no ballast needs removing

Thanks. You may be seeing us at some point.

  • Happy 1

Share this post


Link to post
Share on other sites
41 minutes ago, Cheshire cat said:

That work looks high quality. It'a shame Bodgit and Scarper don't post on here so we can compare and contrast

There are of course differences in skill levels that is why due diligence is so important thank you for your kind comments

Share this post


Link to post
Share on other sites

I find these pictures fascinating.

When overplating, what preparation has to be done on the existing surface?

Also, how do you ensure no moisture is trapped between the old and new steel?

Share this post


Link to post
Share on other sites

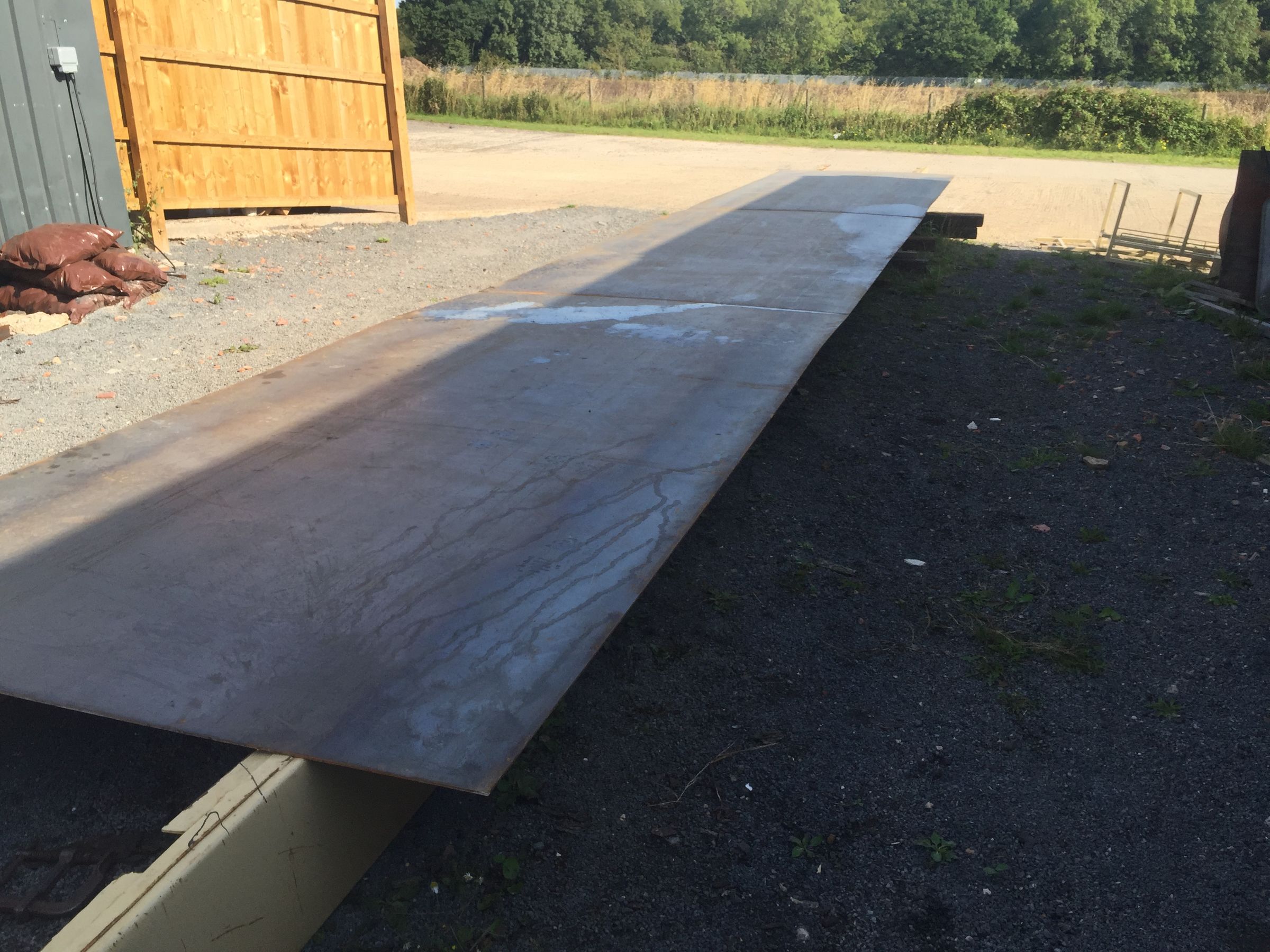

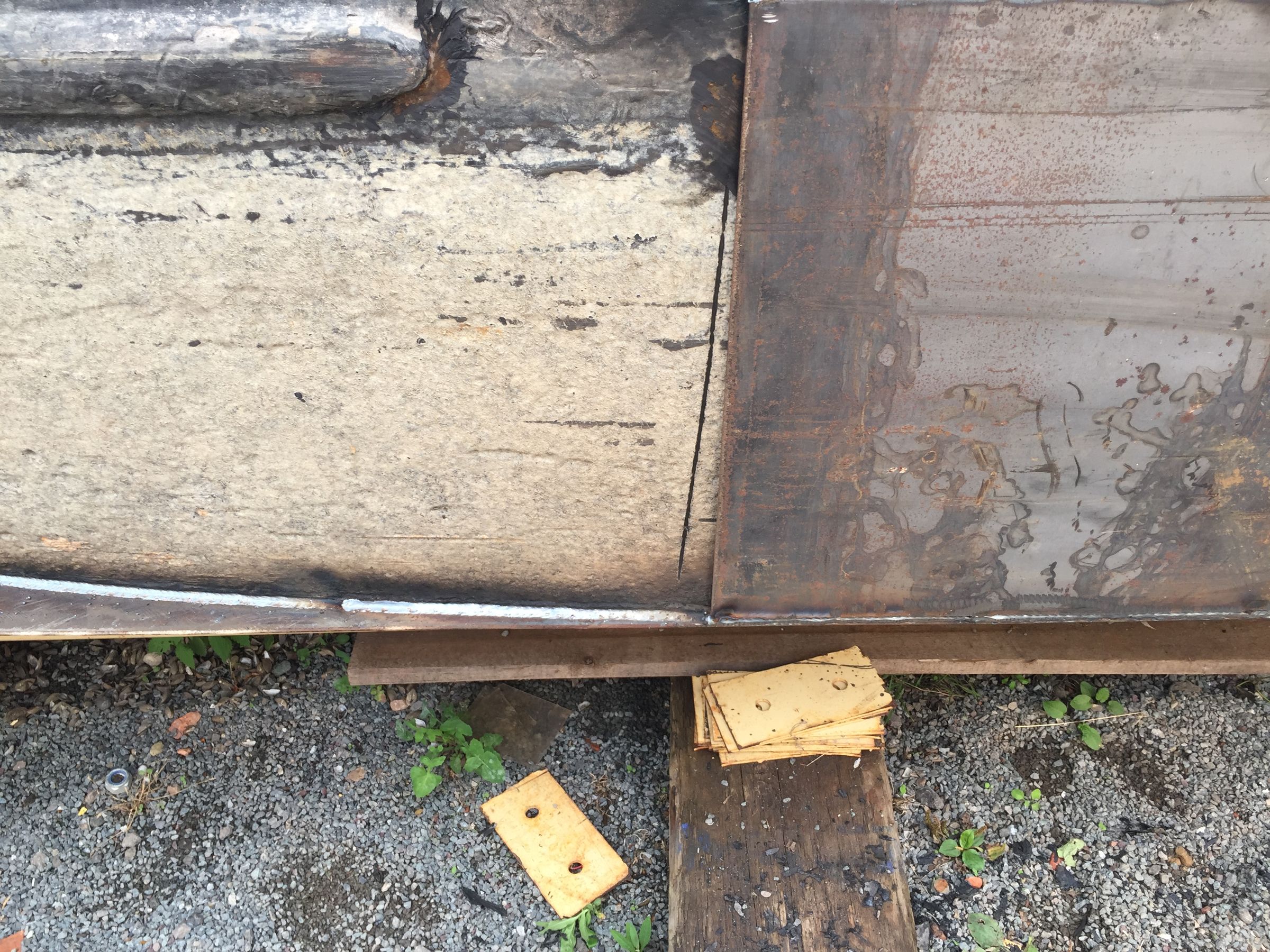

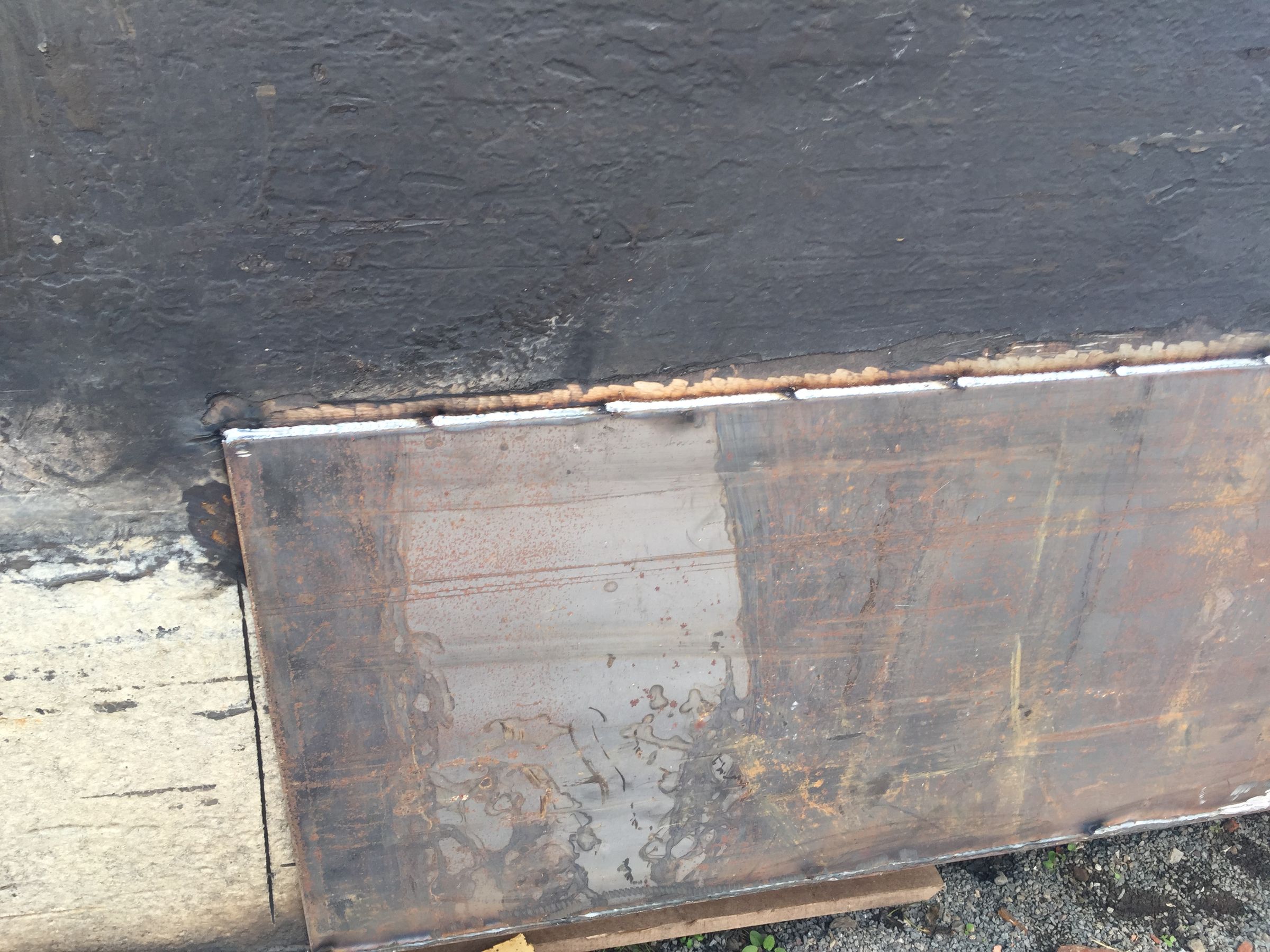

We generally clean of the old plates  care is taken in keeping the new sheets as tight as possible to the original plates moisture is not an issue as when we weld any moisture would evaporate due to the heat generated

whilst a re plate would be the best solution I have yet to meet anyone who wants to strip all of the inside to do this. It would not be cost effective. You might as well start with a new sheet

Just now, Martin Kedian said:

We generally clean of the old plates  care is taken in keeping the new sheets as tight as possible to the original plates moisture is not an issue as when we weld any moisture would evaporate due to the heat generated

whilst a re plate would be the best solution I have yet to meet anyone who wants to strip all of the inside to do this. It would not be cost effective. You might as well start with a new sheet

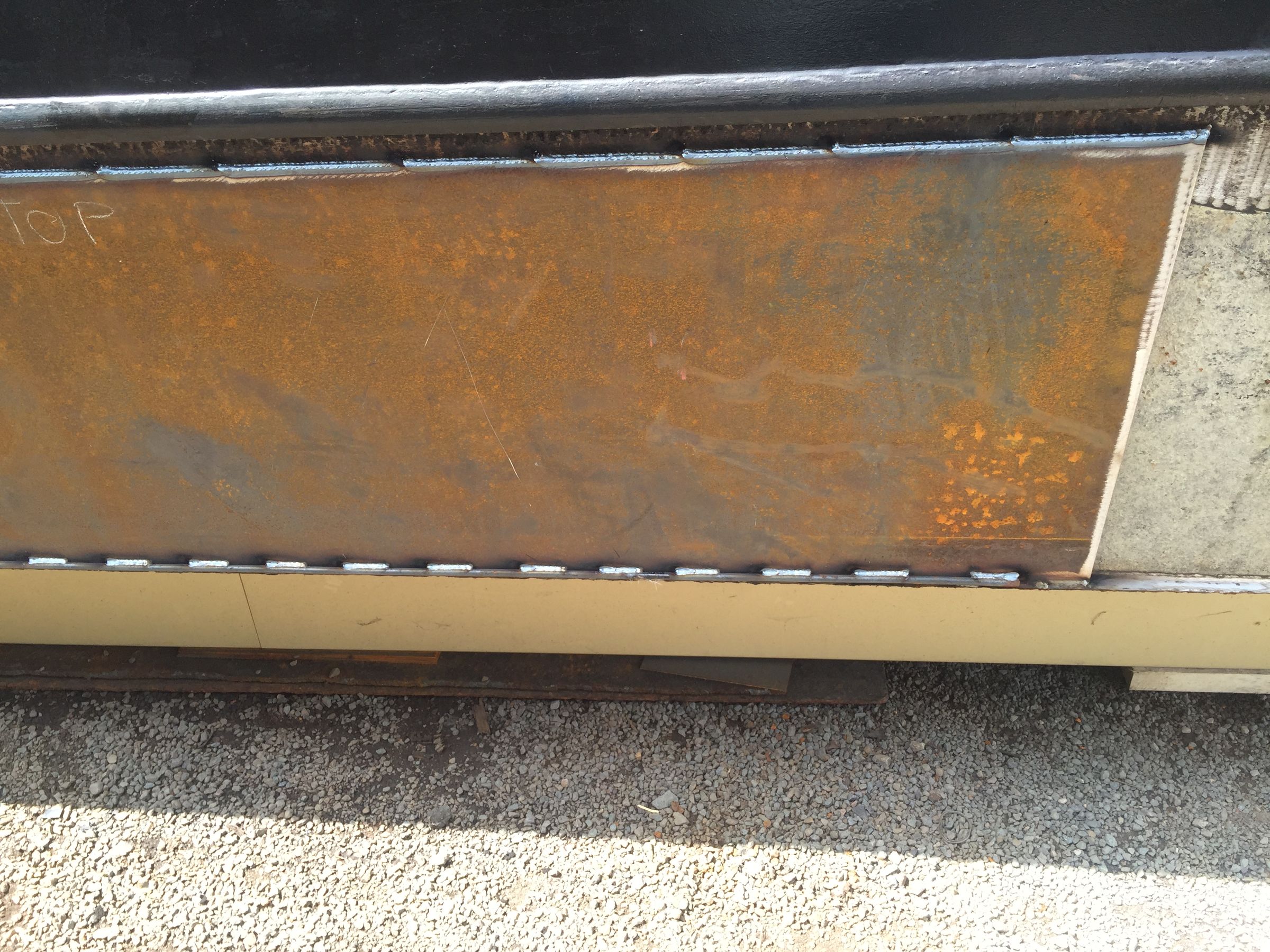

We have also for many years built new shells and they have never leaked so there is a confidence in our welding we also weld in a sequence and so can leave the internal structure in place

  • Greenie 1

Share this post


Link to post
Share on other sites

Another question from me if you don't mind.



Is the baseplate attached at the edges only, or is it plug welded (is that the right term) to prevent it sagging?



Again, apologies if its a silly question. I'm good at them.

Share this post


Link to post
Share on other sites
