Kelvin F4 rebuild

Featured Posts

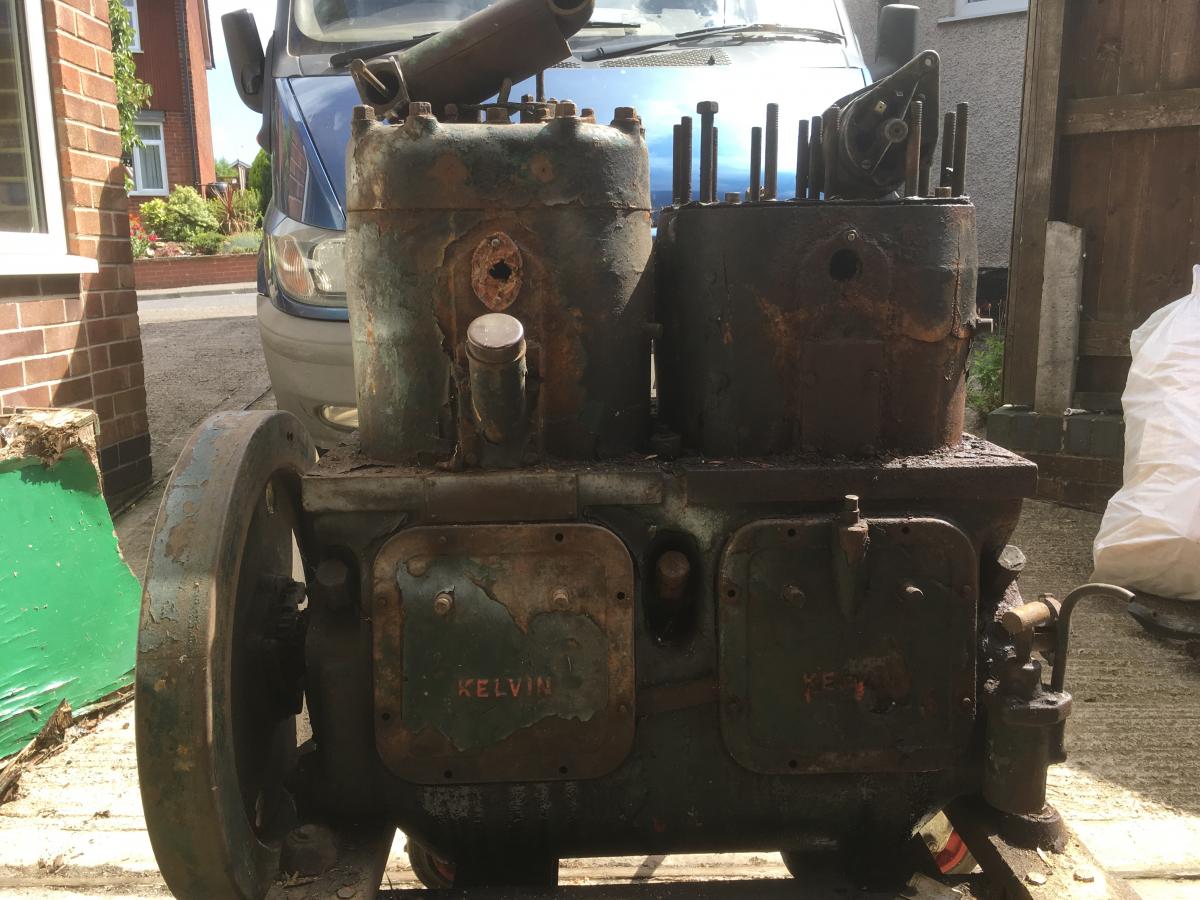

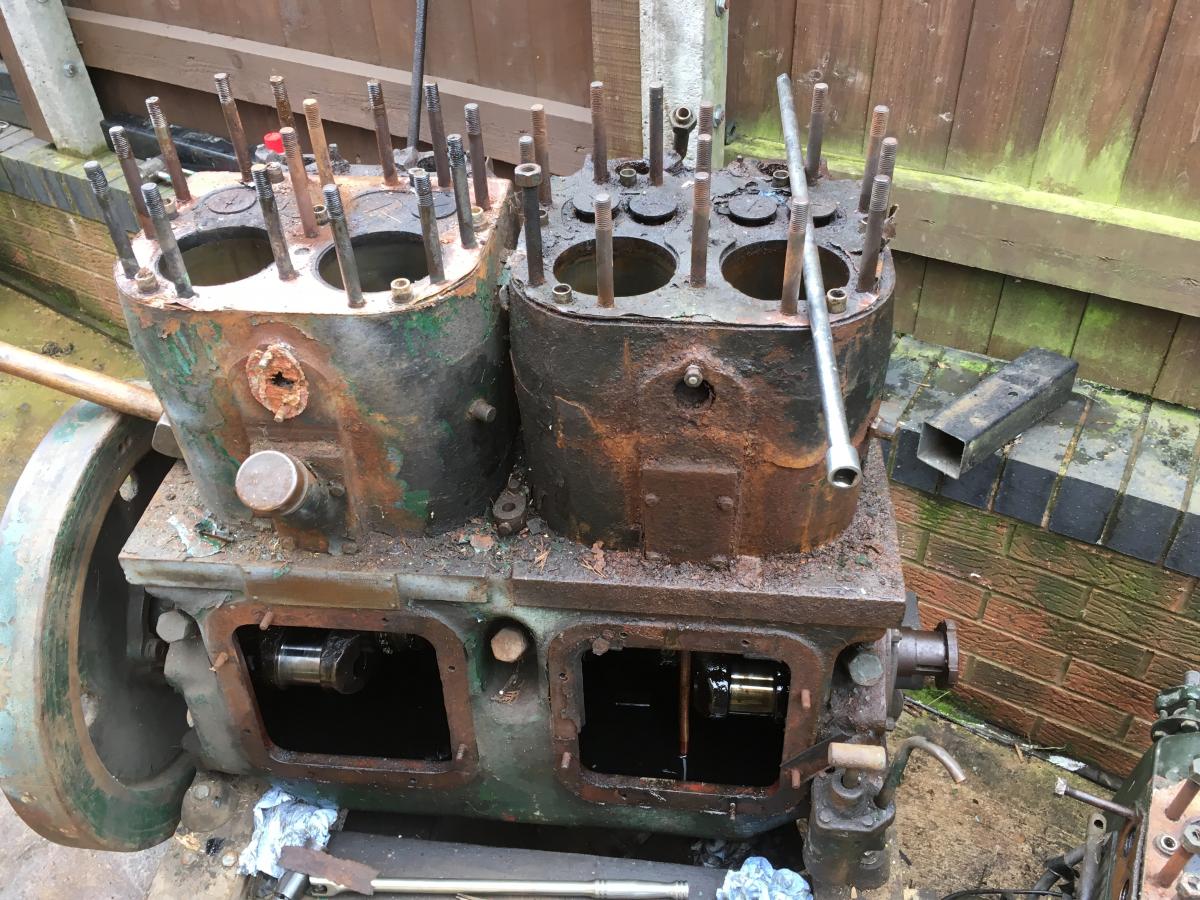

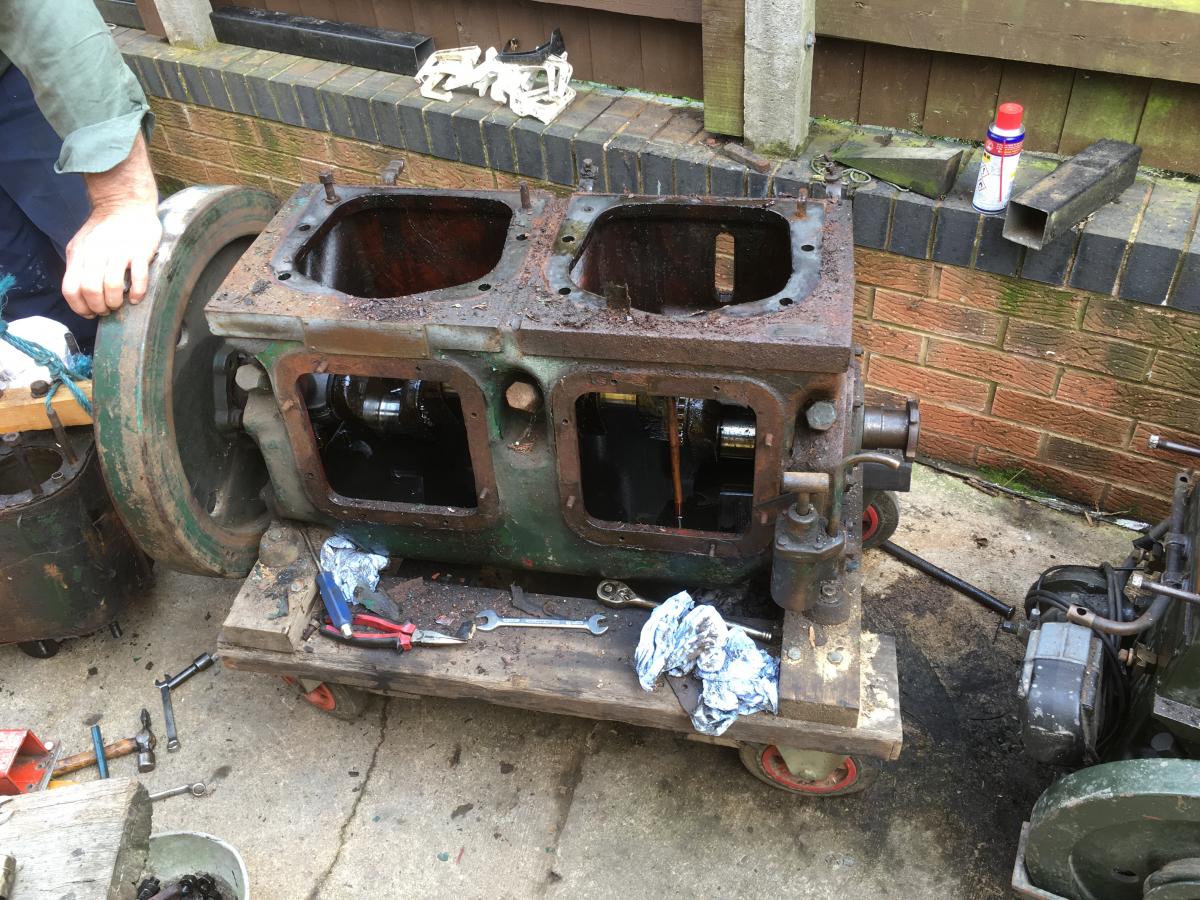

I have finally started the strip down and rebuild of a Kelvin F4 petrol paraffin engine, this will be going into the boat to replace the Lister HR2 soon.

hopefully I will update this with more photos as work progresses

Tom





Share this post


Link to post
Share on other sites

Aren't petrol engines a bad idea for a narrowboat ?





It only uses petrol to start it, about the same as most Kelvin J and K diesels.

Suitable safety precautions and a dose of common sense has proved to be the key to continued use of this type of engine (F4) these last forty years......



in a wooden boat



Bill

  • Greenie 2

Share this post


Link to post
Share on other sites

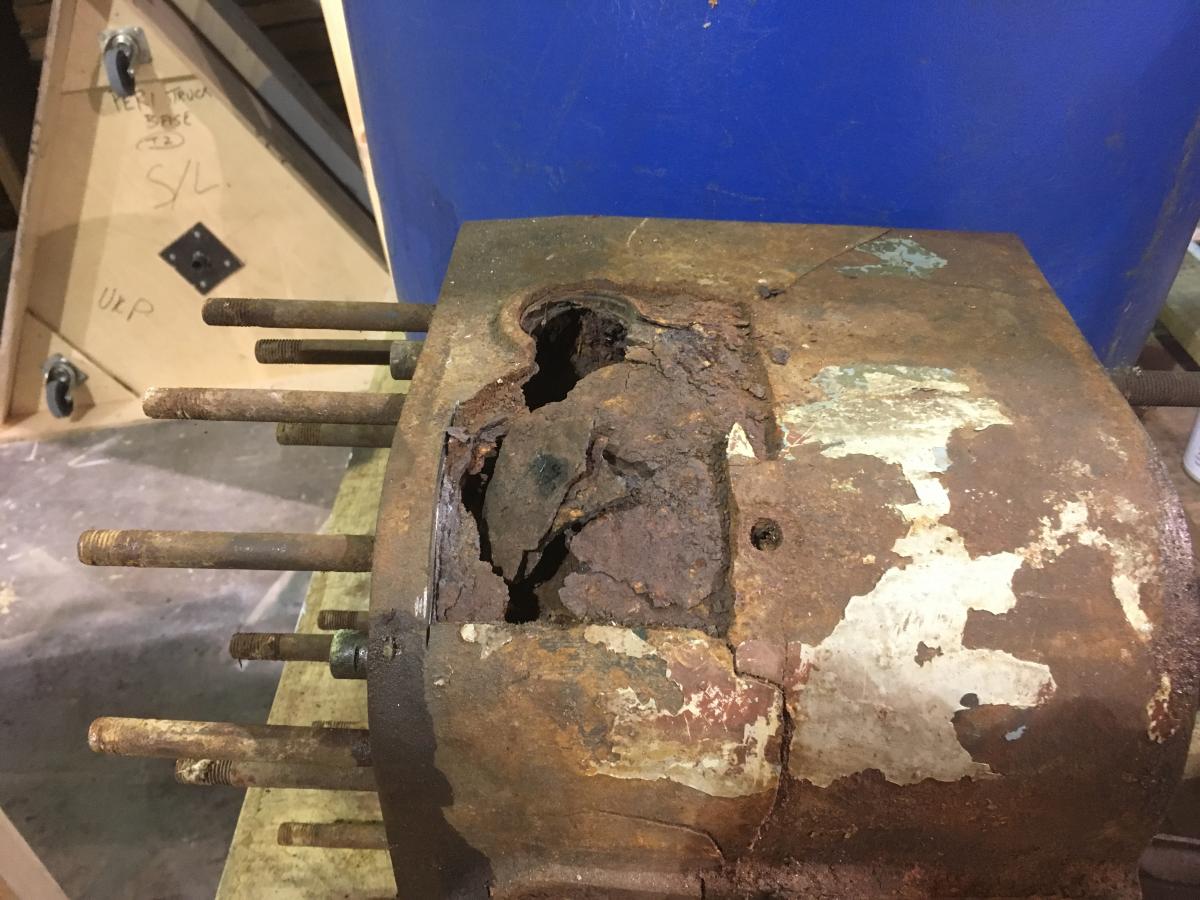

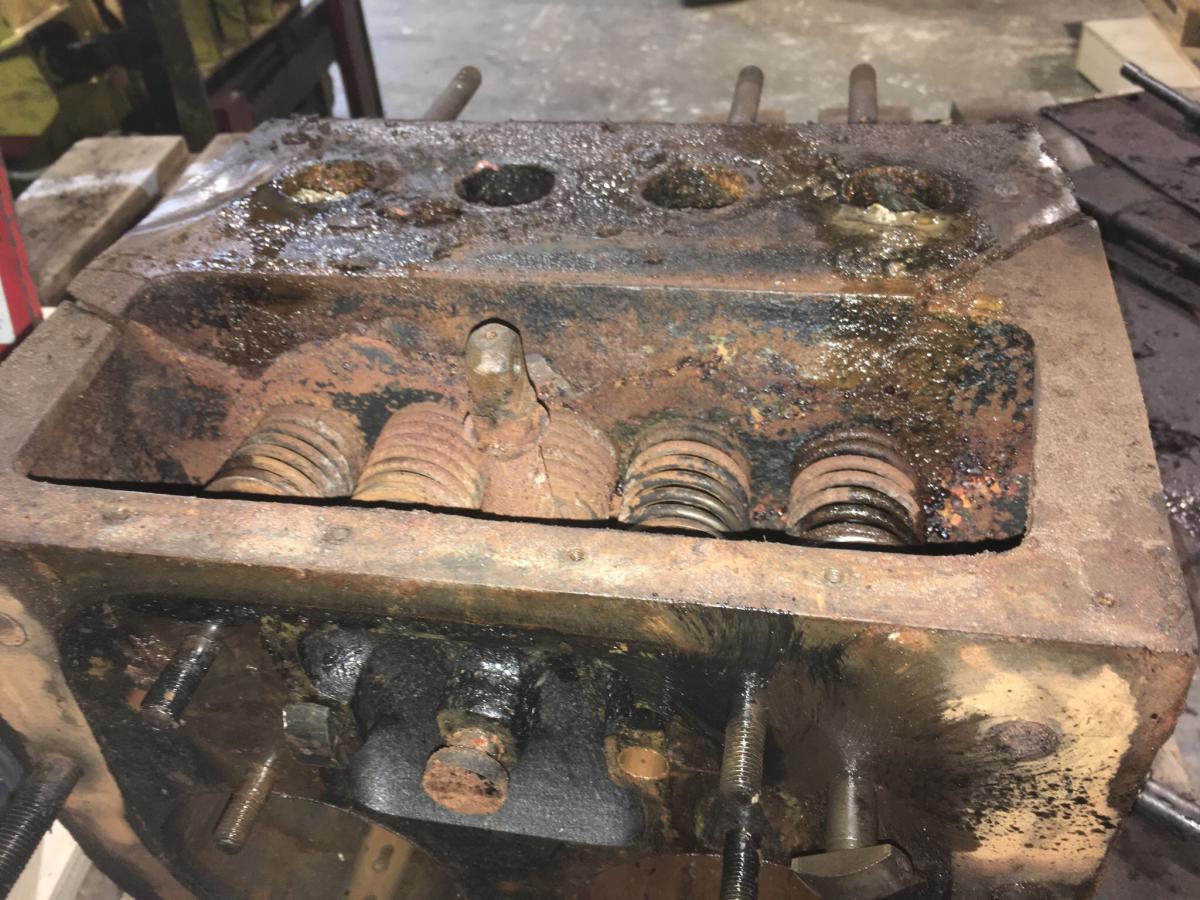

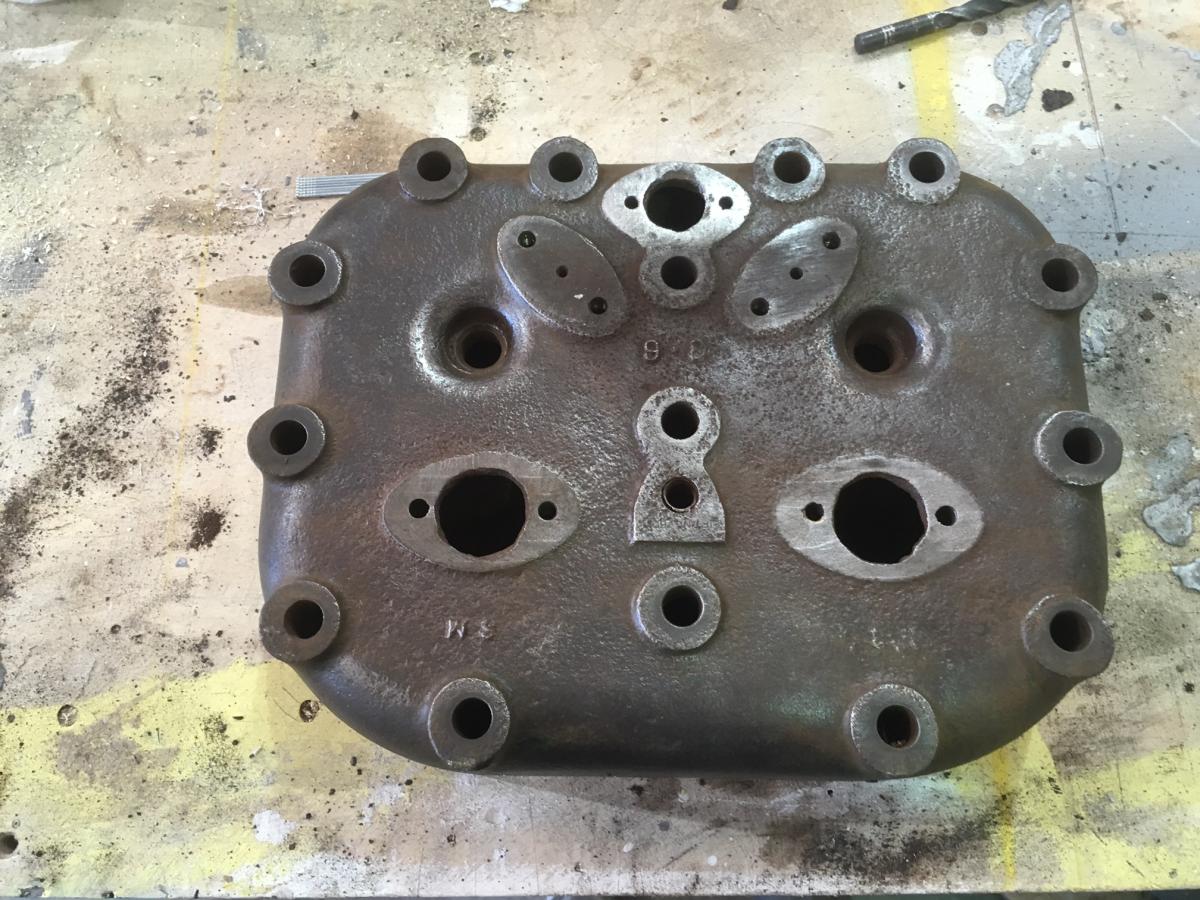

Both cylinder heads need repairing, one has a crack near the spark plug and the other has a corner missing and lots of corrosion from salt water cooling


Share this post


Link to post
Share on other sites

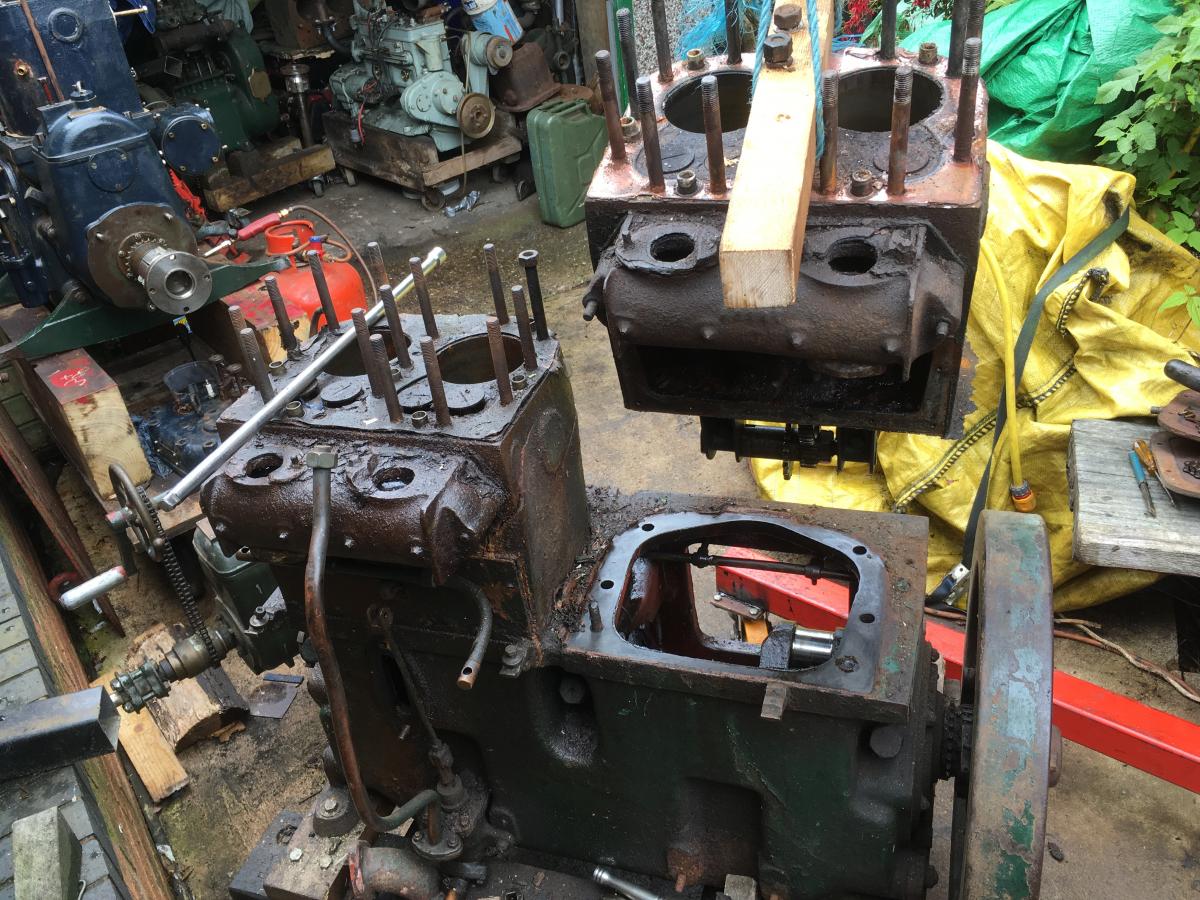

A couple more photos of the worst cylinder block



Cripes! I thought we had problems with a couple of head studs pulling out. I've scrapped better F blocks than that.

Anyway, I should get the home made solid copper head gasket on tomorrow creating a good excuse for a high speed test run later this week- the engine makes about 420rpm on 2cylinders and 700+ on 4.

Bill

Share this post


Link to post
Share on other sites

I think this is the worst of the useable blocks that we have, I am trying to find a better one but there aren't that many of them left.

Tom

Share this post


Link to post
Share on other sites

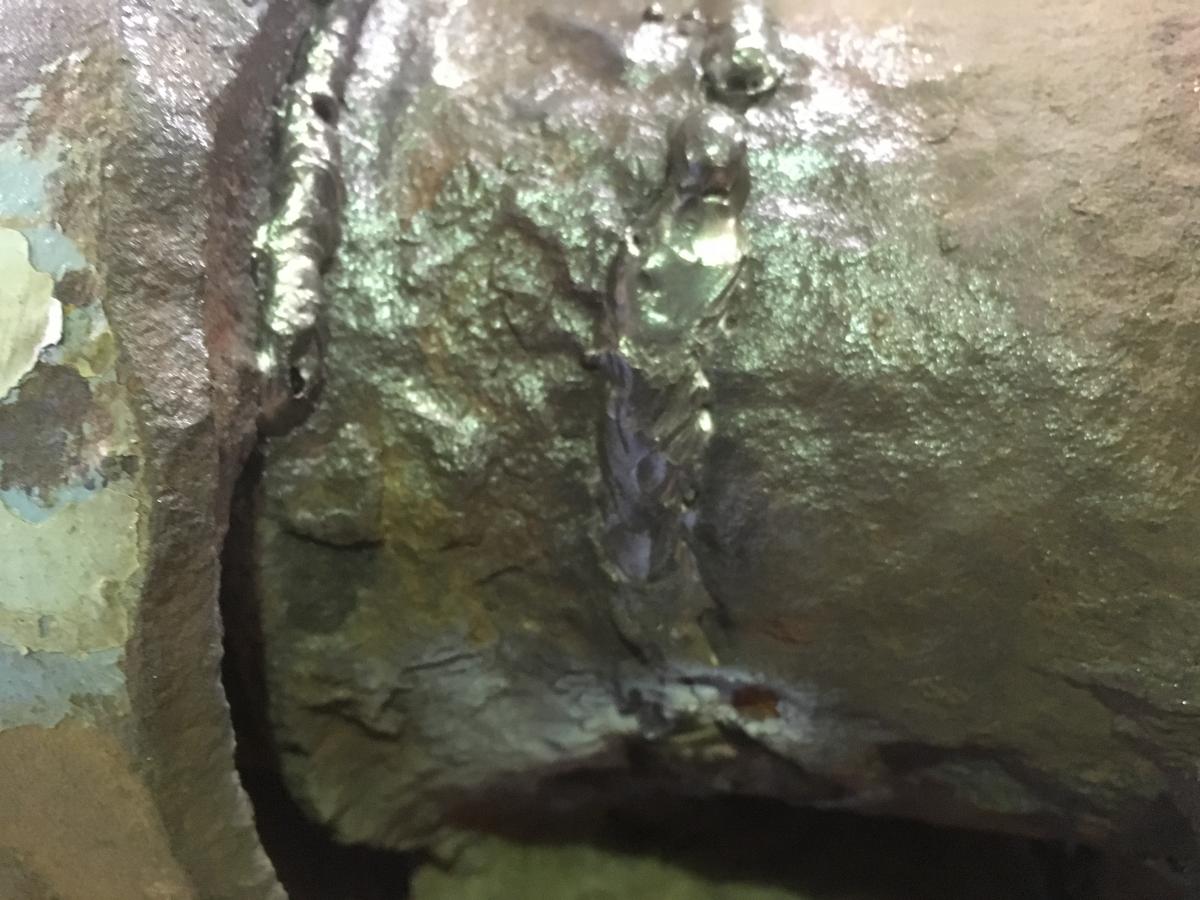

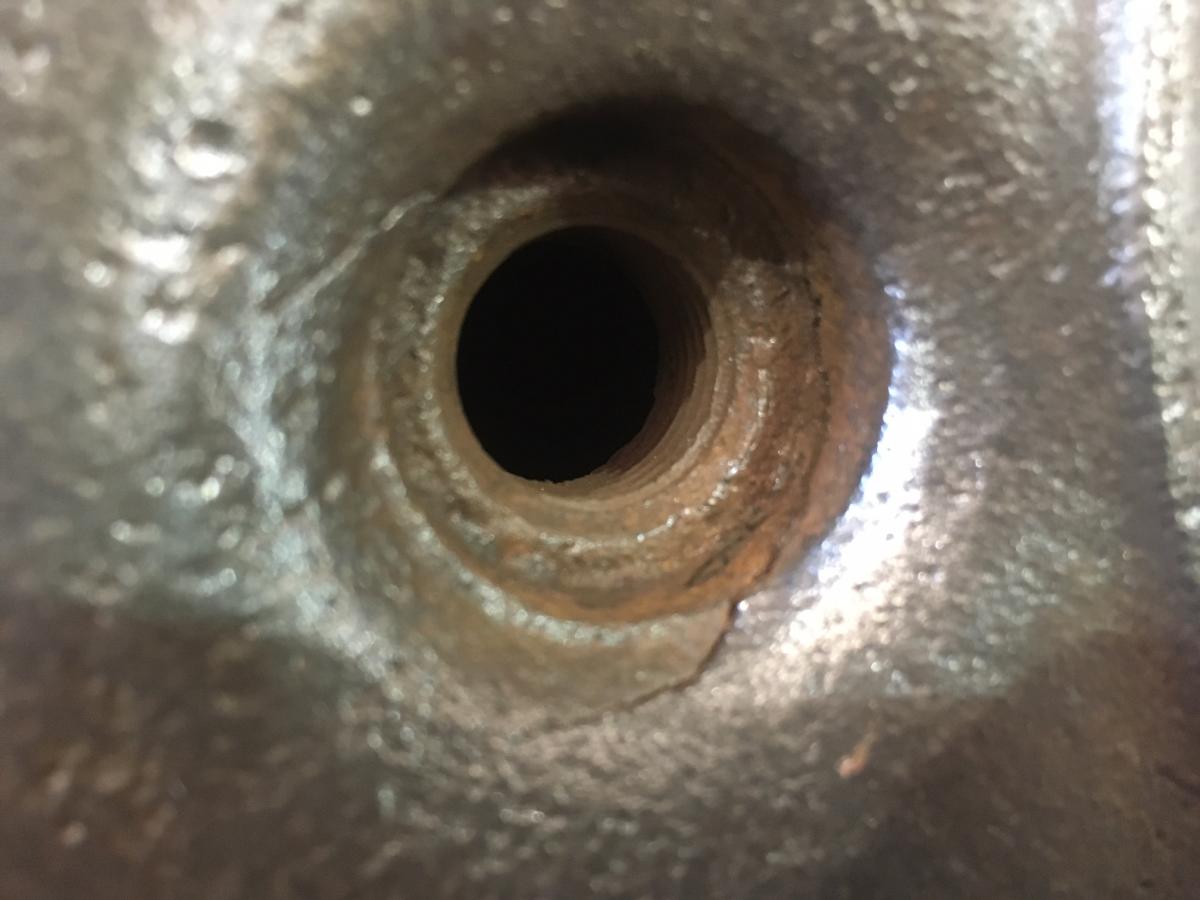

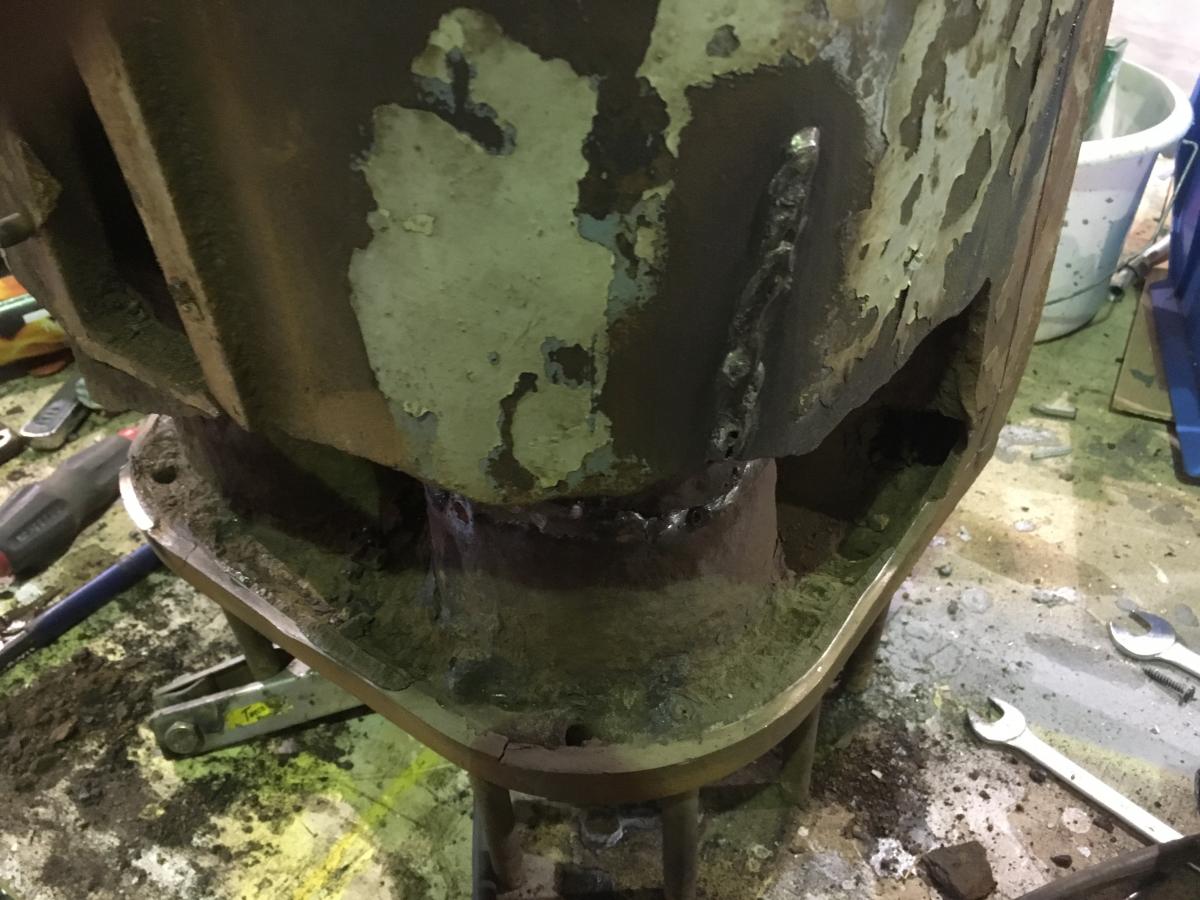

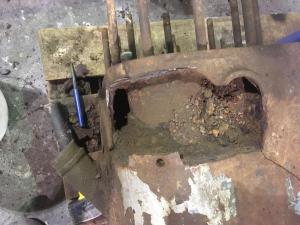

More cracks found, including through into cylinder, still looking for another block but in the meantime all cracks are being welded up and will try to source a liner to fit later as a spare.

post-5247-0-90425800-1472671823_thumb.jpegpost-5247-0-68013200-1472671872_thumb.jpegpost-5247-0-87552900-1472671894_thumb.jpeg

Share this post


Link to post
Share on other sites

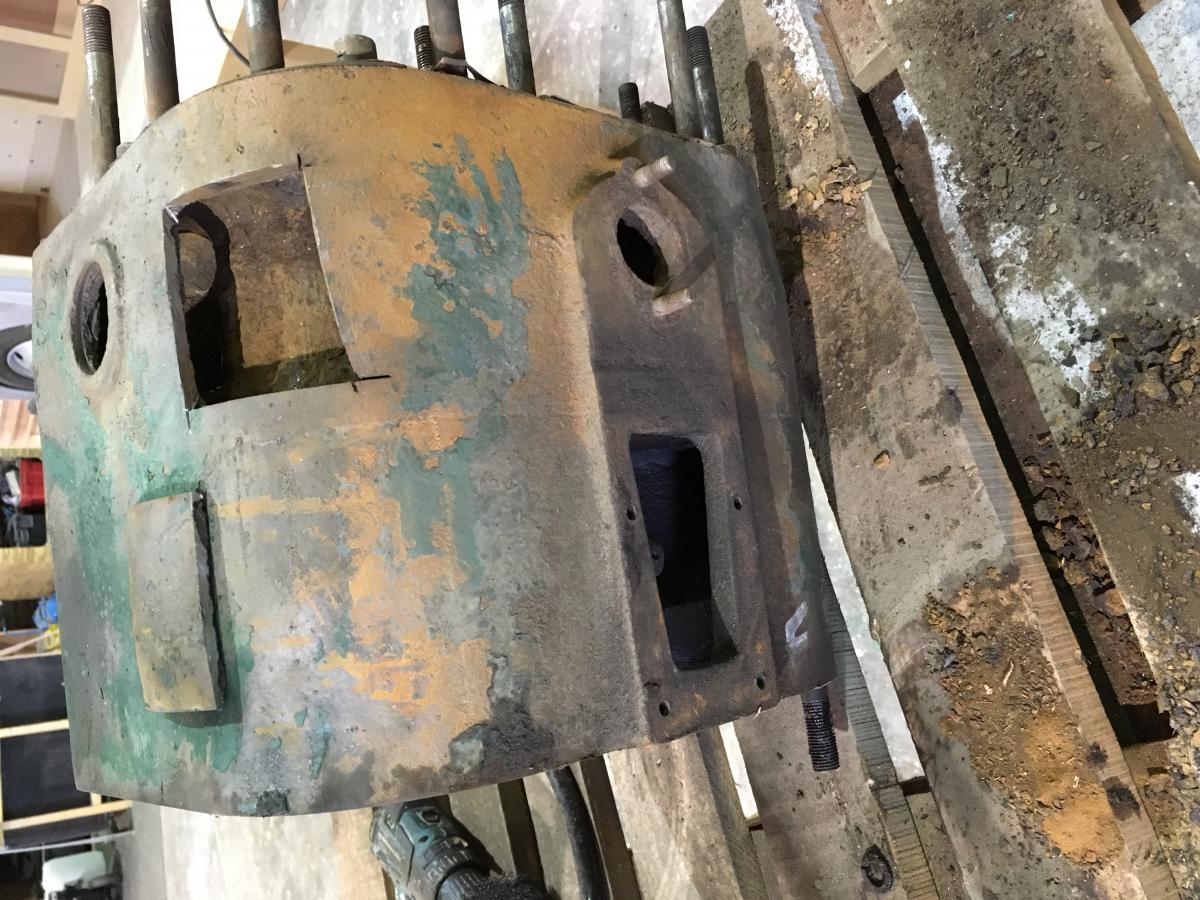

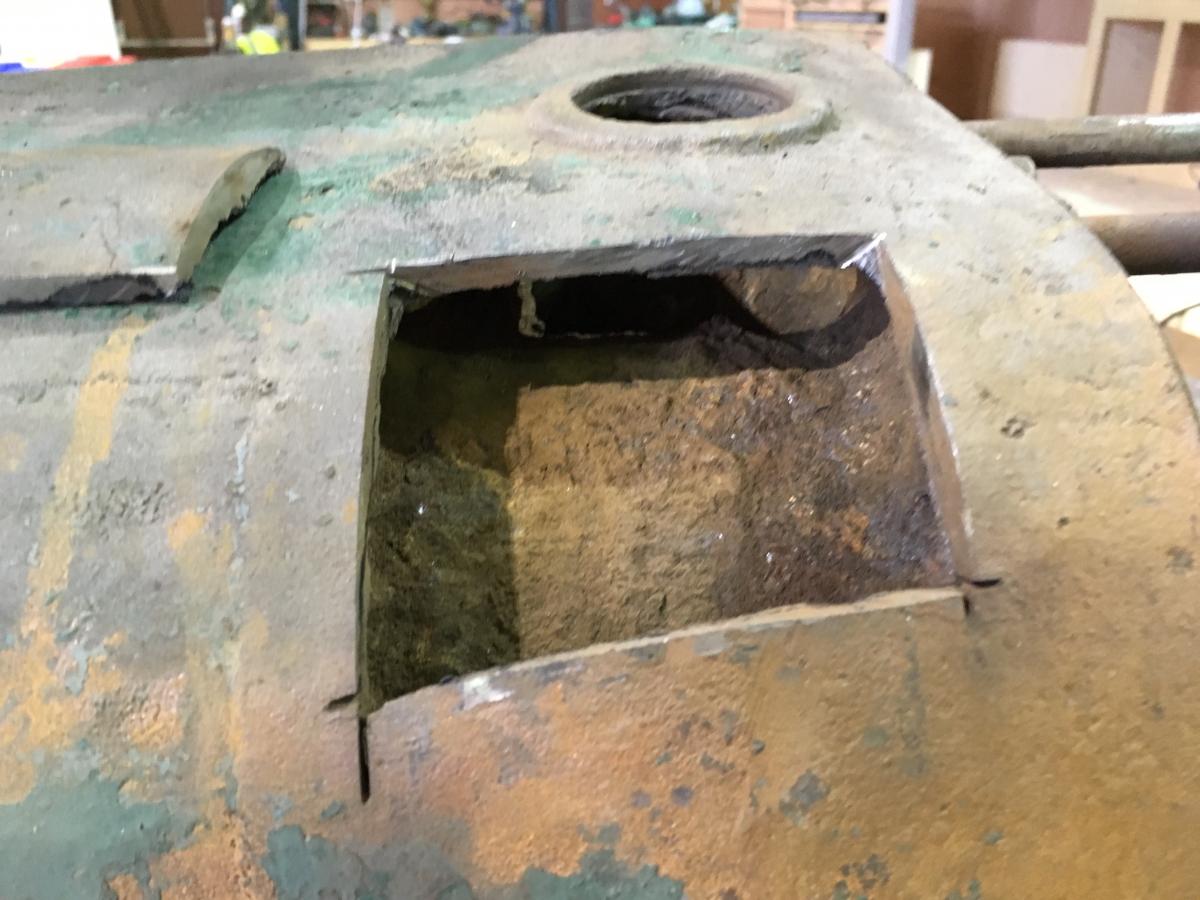

I discovered some damage today while stripping down a cylinder block


How did the solid head gasket go Bill?



The copper HG is a success story so far. We were easily reaching the speed limit with 2 cylinders. A new problem has surfaced- she won't idle either in or out of gear, it was fine before,further investigation needed- can't see why the HG should affect it.

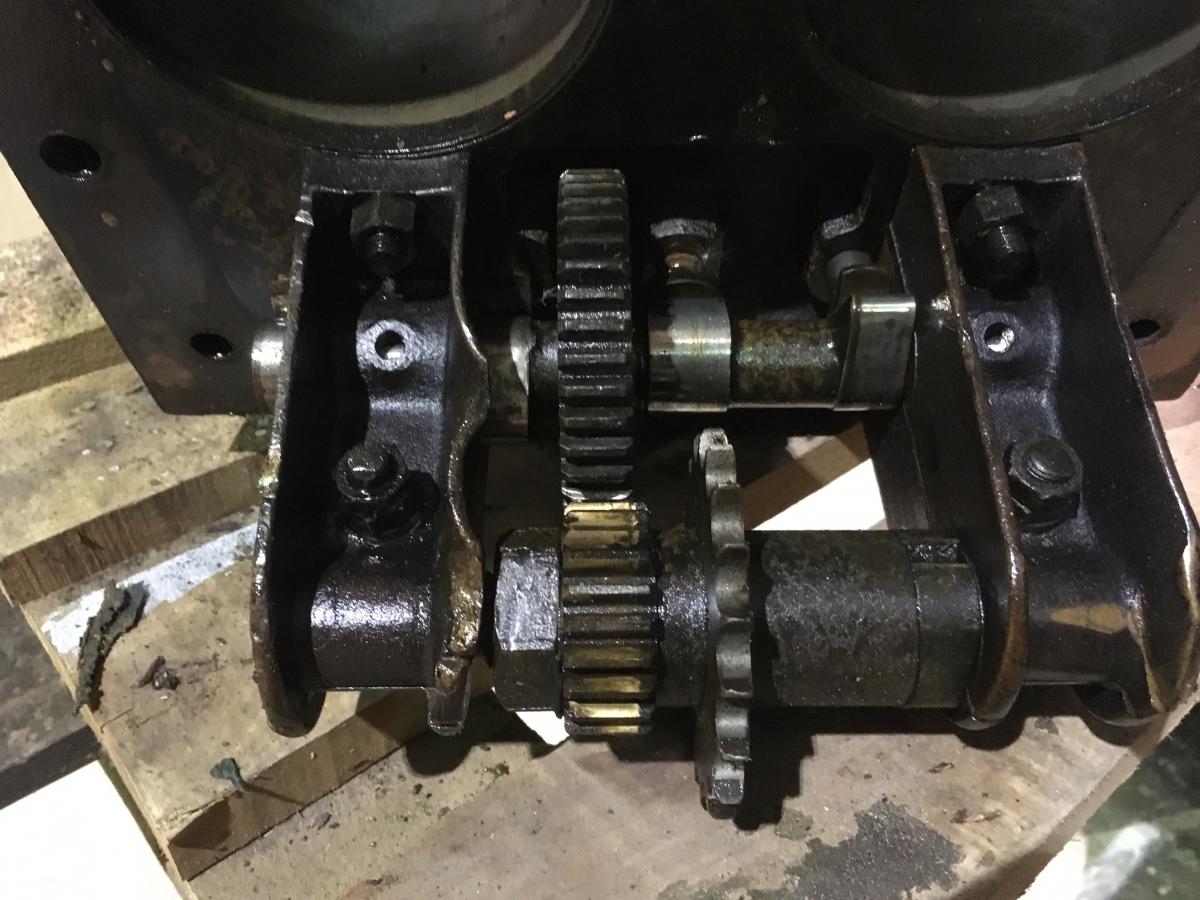

We should have a set of camshaft bearings in reasonable nick, let me know if you need. How did it get like that,loose big end bolts perhaps?

Also, can you tell us about your cylinder head /block welding set-up? Is it done with that inverter welder in the background? What rods? Any pre-heating, gentle cooling?

Bill

Share this post


Link to post
Share on other sites

The welding is done with a DC inverter welder using nickel rods and some pre and post heat, I have found only welding small sections is best then allowing a long time to cool naturally works best.

I think we have spare camshaft bearings somewhere but I'll let you know if I need them thanks.

Strangely the camshaft turns freely with no tightness anywhere.

I think I'm going to have to try to find a block unfortunately, although I have started drawing a fabricated one if none are available

Tom

Share this post


Link to post
Share on other sites

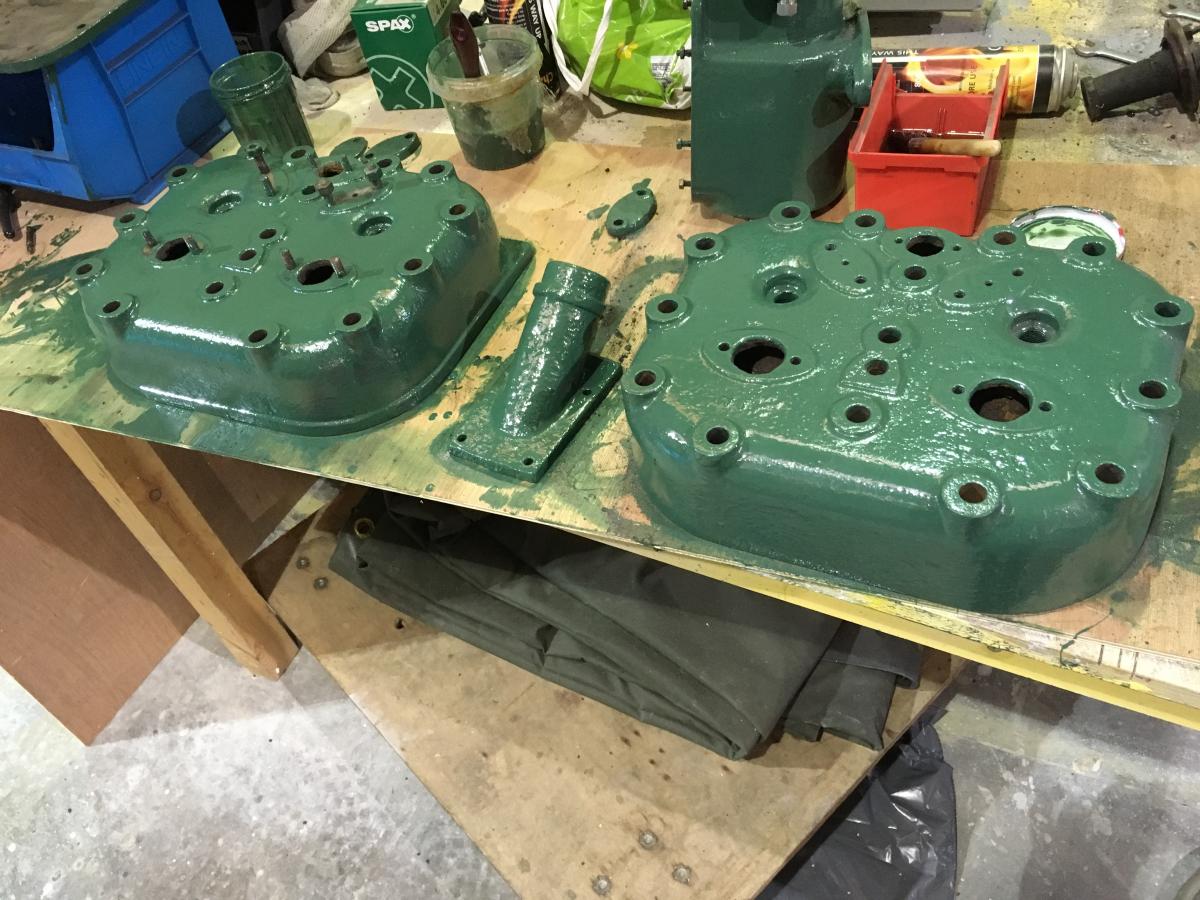

More corrosion removed from the good cylinder block, now ready for welding back together and a pair of painted cylinder heads




Share this post


Link to post
Share on other sites

Aren't petrol engines a bad idea for a narrowboat ?



Looks like a big project , best of luck with it.

I suppose its no worse than the average boater with a petrol generator, the Kelvin will mostly run on paraffin, only using a small amount of petrol to start, there will however be no gas on this boat .

Tom

Share this post


Link to post
Share on other sites

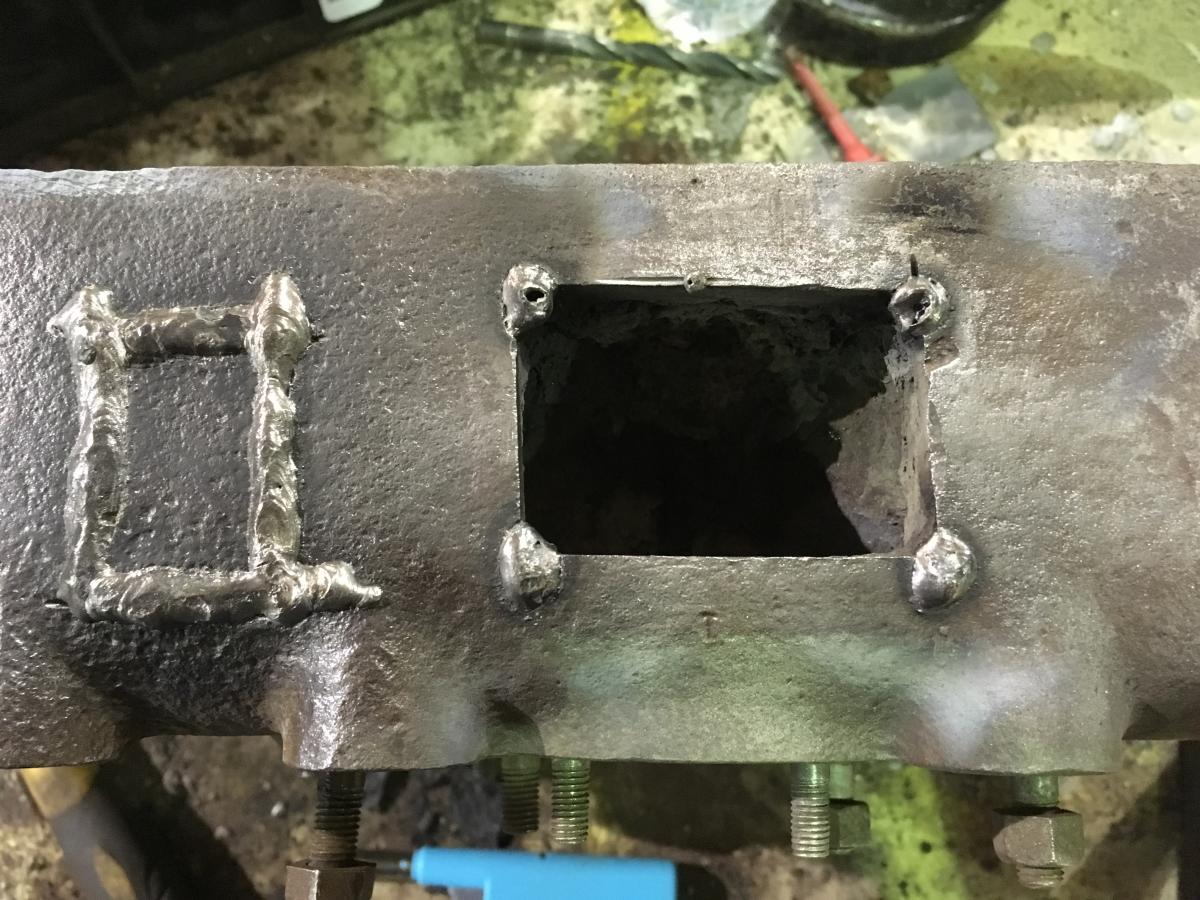

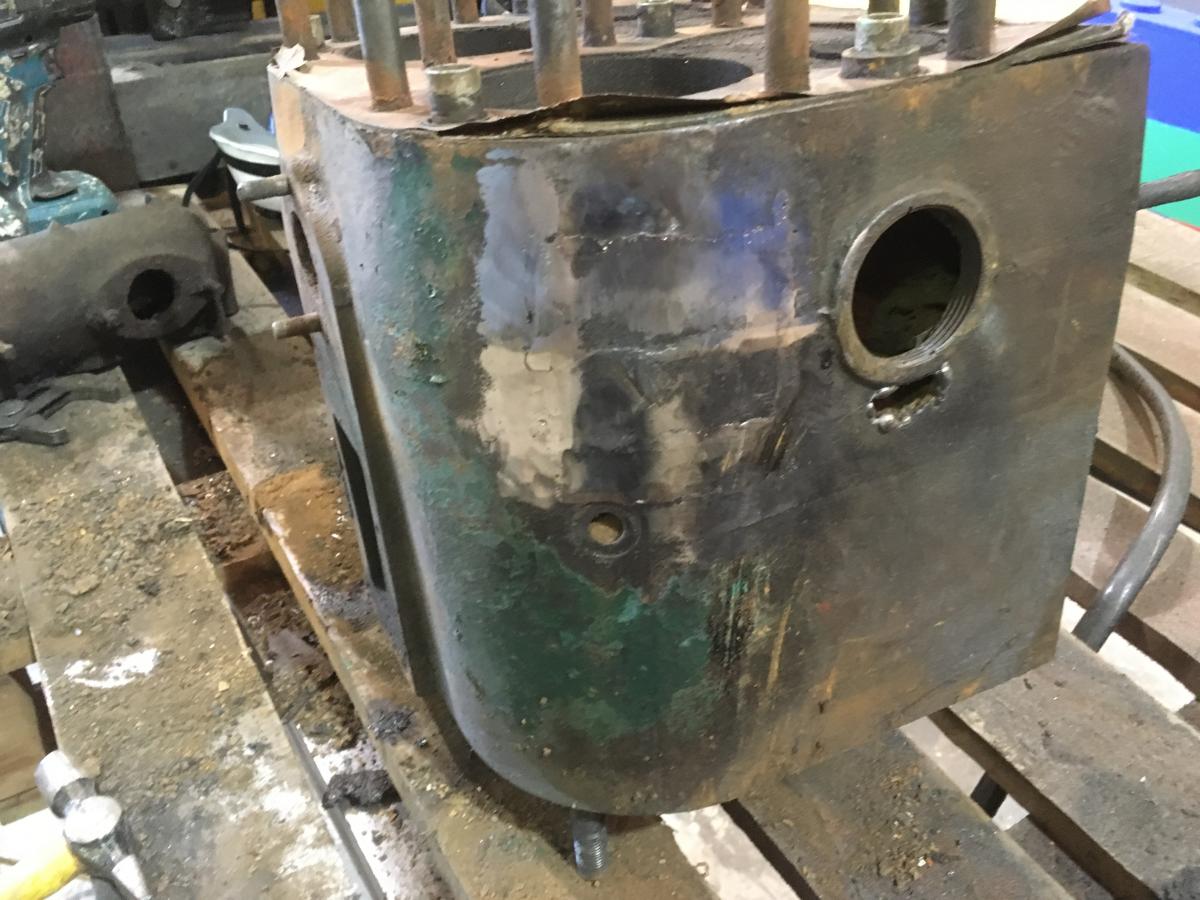

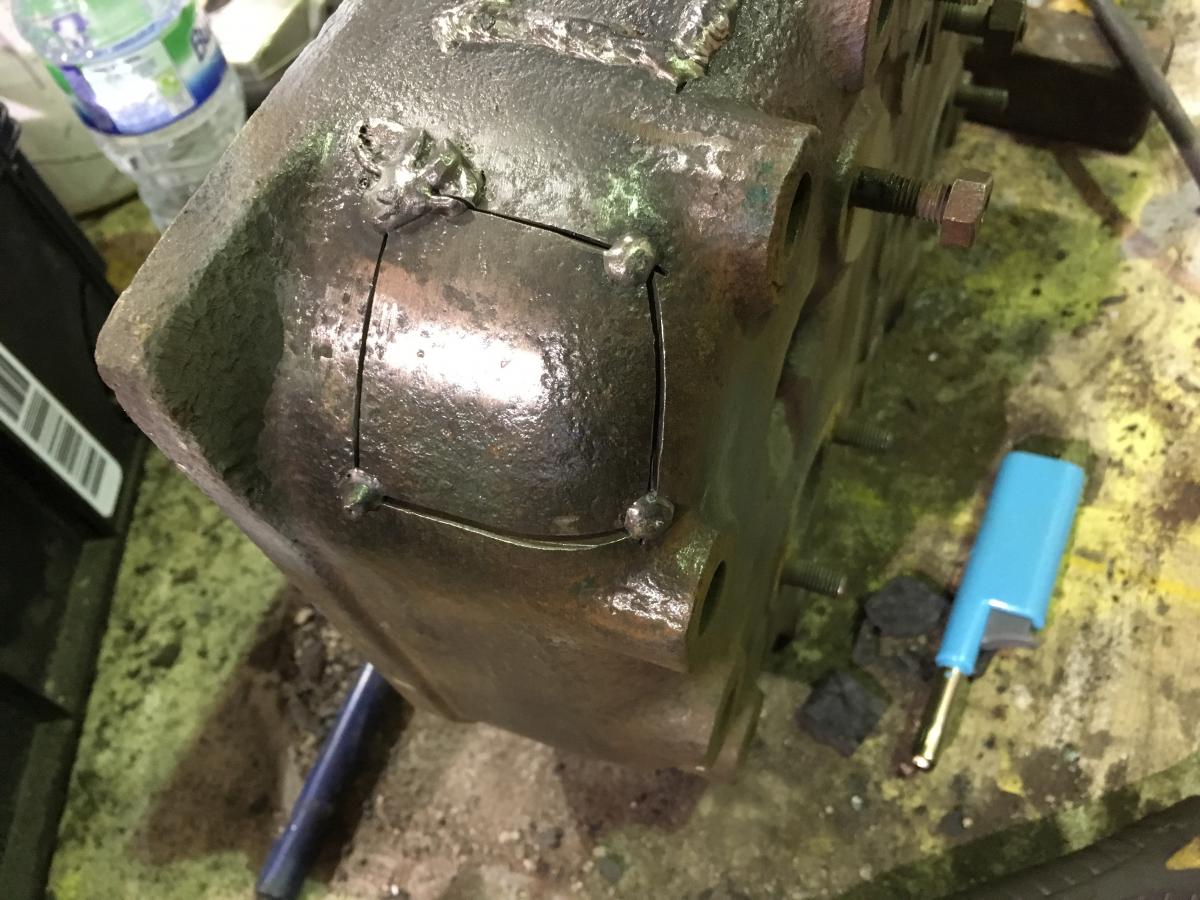

Today's repair to a cylinder block after removal of corrosion from water jacket post-5247-0-95442700-1473102289_thumb.jpeg

Edited by tom_c

Share this post


Link to post
Share on other sites

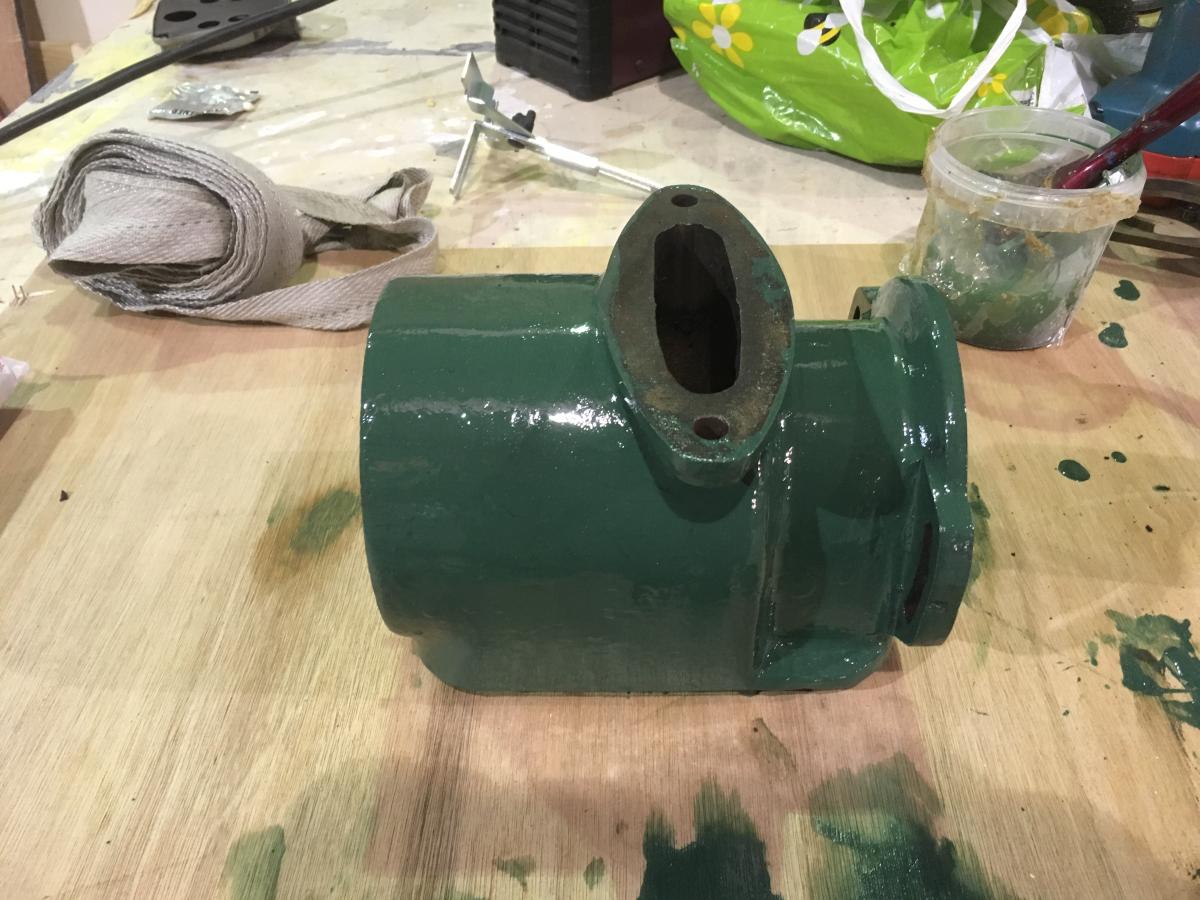

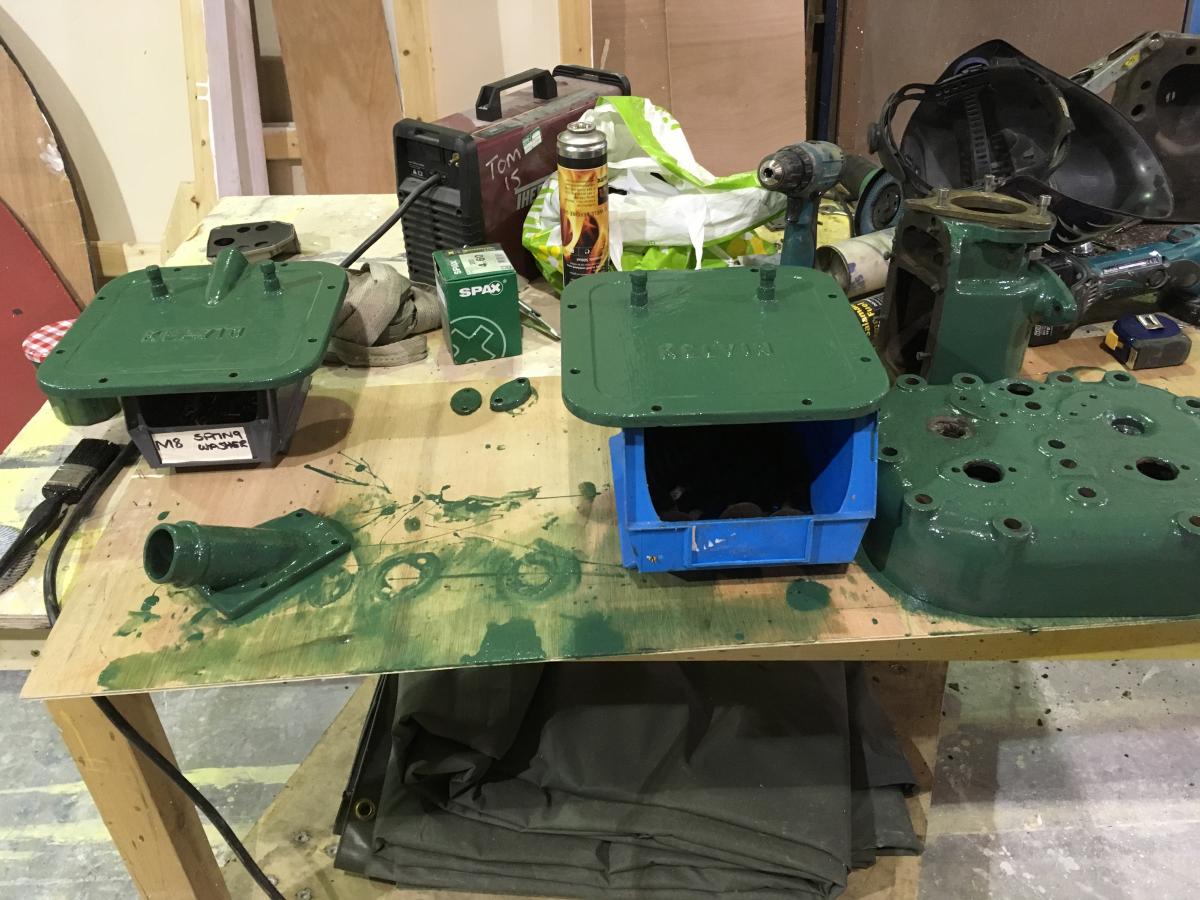

First cylinder block almost ready for paint

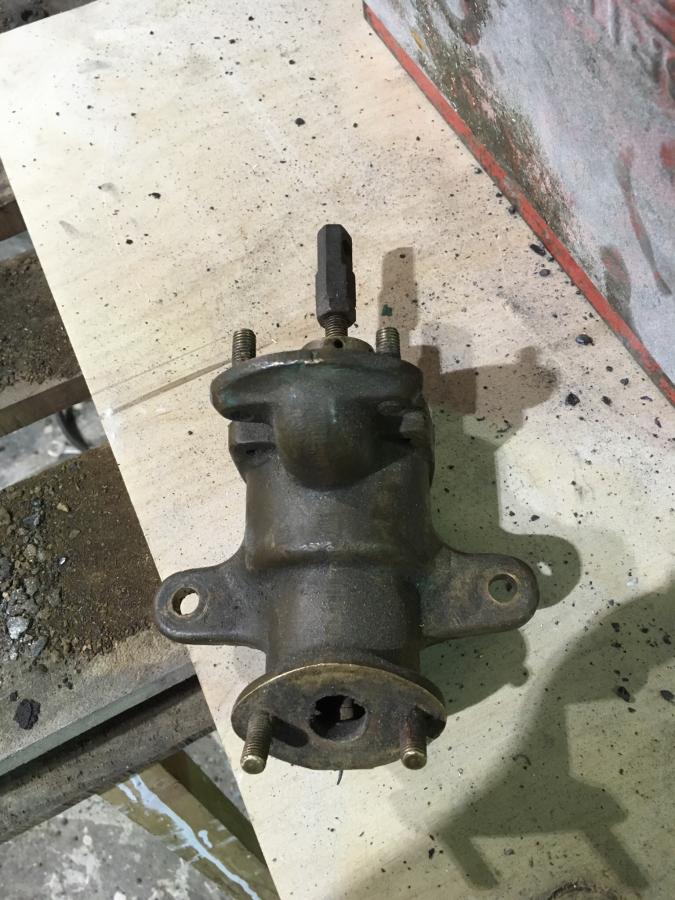

First water pump freed up and ready for stripping down


Another dead cylinder block


Share this post


Link to post
Share on other sites

I am deeply humbled but envious of the huge amount of work you're doing to an old heap of junk / treasurable example of a bygone age. As one who opted for a fug stirrer - even from ex Lister folk, the only engine I have lusted over is some form of Kelvin,

Acres of polished brass and copper.

the sound of one running bet it one two three or four cylinders,



OOOO missus, gets me hot and cold all over.



stop - stop - stop -



Long may you succeed and prosper - there aren't many left (apologies to all the others casp', real trad owners, real listers, bus engines made in Manchester - even two stroke water cooled engines mad in Henley. The ALL have their place.



Keep the faith...

Run out of plaudits and my Whisky Mac is now finished.





toodle Pip....

Share this post


Link to post
Share on other sites

Willie Dow was always a good go-to man for poppet valve stuff, but I've not been in touch for years.



N

Share this post


Link to post
Share on other sites
