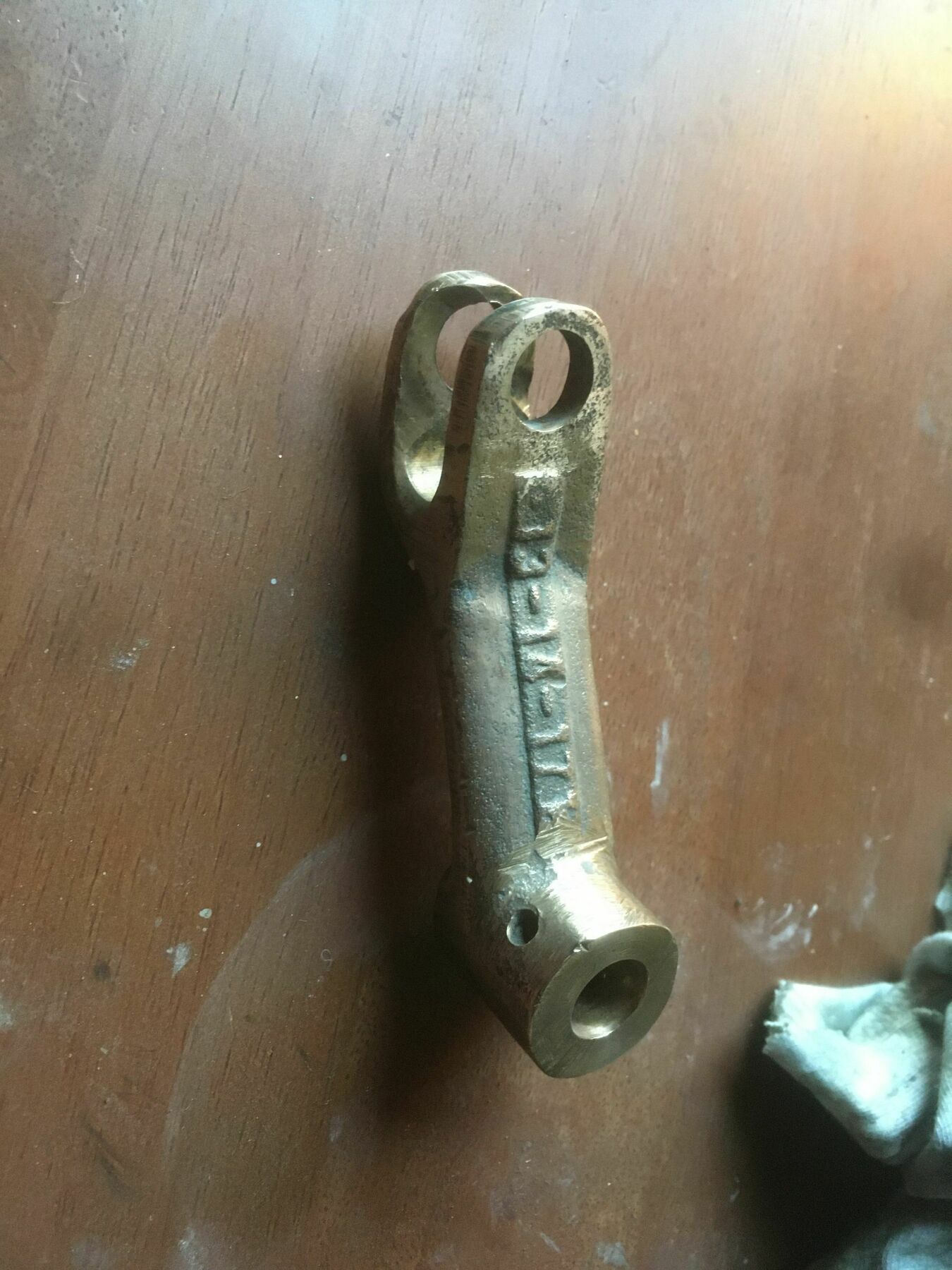

fittie Posted November 29, 2023 Report Posted November 29, 2023 Looking for a swivel pin that fits this 13-14-171 .
BEngo Posted November 29, 2023 Report Posted November 29, 2023 If no one has an OE item I should be able to make one. Diameter of hole? Distance across forks? Width of one fork?! Desired retaining method- split pin and washer or a nut and washer? N
BWM Posted November 29, 2023 Report Posted November 29, 2023 2 hours ago, fittie said: Looking for a swivel pin that fits this 13-14-171 . If you have a part number, stationary engine parts have huge lists that are worth a look.
fittie Posted November 29, 2023 Author Report Posted November 29, 2023 Thanks BEbgo and BMW. I just thought I would ask as someone might have one scudding around.
frangar Posted November 30, 2023 Report Posted November 30, 2023 If you aren't in a hurry I can take measurements of mine but do remind me and I will need to pick up my callipers from work
fittie Posted December 1, 2023 Author Report Posted December 1, 2023 21 hours ago, frangar said: If you aren't in a hurry I can take measurements of mine but do remind me and I will need to pick up my callipers from work Yes please and, if poss, a photo as I don't know what it should look like. Cheers!
frangar Posted December 1, 2023 Report Posted December 1, 2023 26 minutes ago, fittie said: Yes please and, if poss, a photo as I don't know what it should look like. Cheers! I should be able to take a picture in the next couple of days but it will probably be the end of next week before I can get the callipers for an accurate measurement. I guess you mean the pin where the rod goes through that then goes to the bell crank and then to the injector pump? I’ll take some pictures of mine in situ so you can see how it fits together as well.
fittie Posted December 1, 2023 Author Report Posted December 1, 2023 5 hours ago, frangar said: I should be able to take a picture in the next couple of days but it will probably be the end of next week before I can get the callipers for an accurate measurement. I guess you mean the pin where the rod goes through that then goes to the bell crank and then to the injector pump? I’ll take some pictures of mine in situ so you can see how it fits together as well. Cheers.

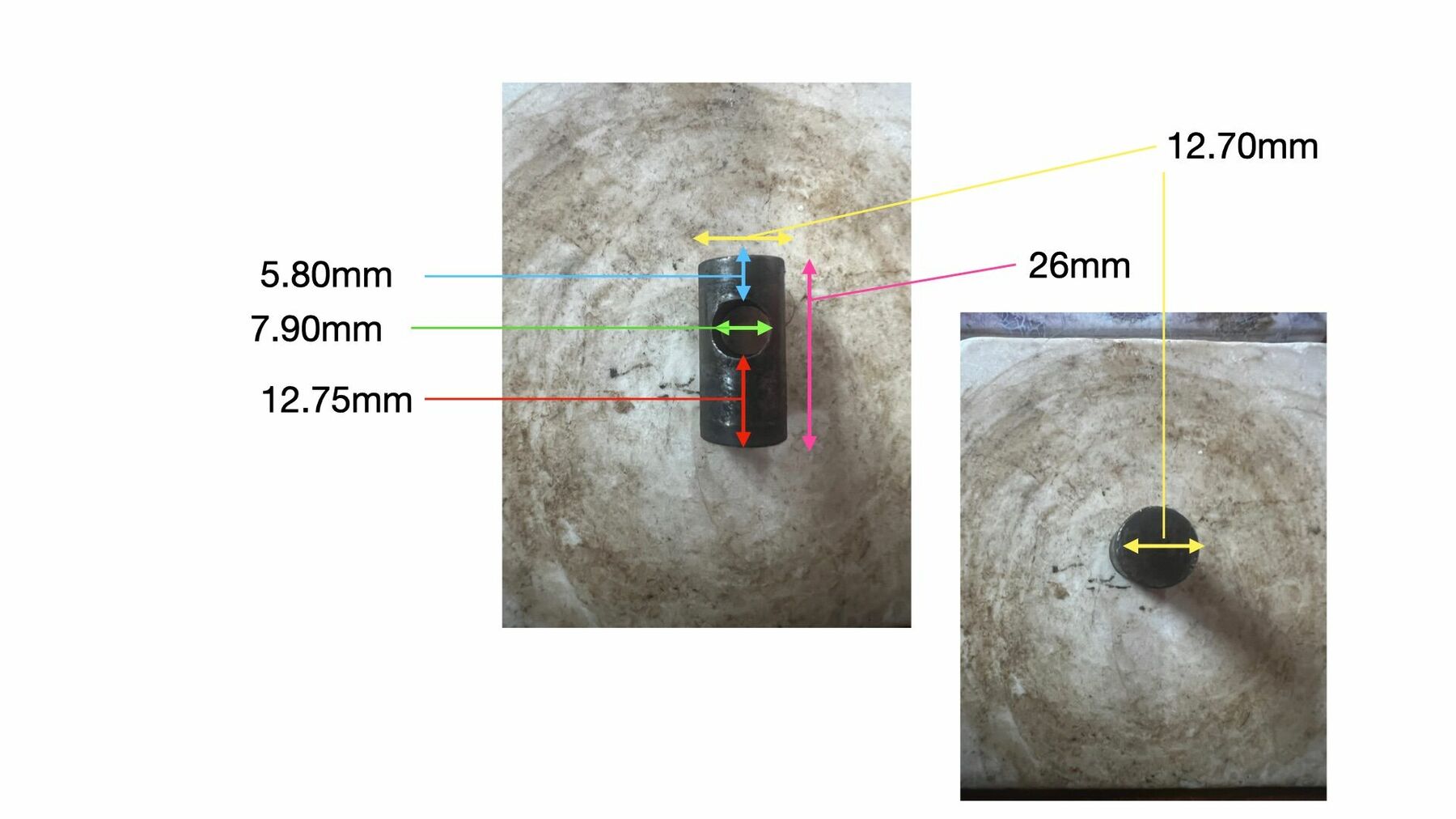

frangar Posted December 23, 2023 Report Posted December 23, 2023 On 01/12/2023 at 13:44, fittie said: Cheers. Really sorry for the delay!....life ha been a bit manic....heres the dimensions of the swivel pin. Let me know if you need more or different information. Hope it helps
fittie Posted December 23, 2023 Author Report Posted December 23, 2023 Thank you Frangar, it does. Merry Christmas. 1
frangar Posted December 23, 2023 Report Posted December 23, 2023 Just now, fittie said: Thank you Frangar, it does. Merry Christmas. I would just say check the dimension of the speed rod...Ive a feeling mine might not be original so the hole might need to be a size to suit what you have. Ive also realised the measurements dont add up and are 0.45mm out...but they might be close enough for a JP!
BEngo Posted December 23, 2023 Report Posted December 23, 2023 I think the original would have been defined in imperial units. Not too difficult to work them out though. N
frangar Posted December 23, 2023 Report Posted December 23, 2023 Just now, BEngo said: I think the original would have been defined in imperial units. Not too difficult to work them out though. N I purposely did it in metric as I thought that would be most useful to a machine shop if one needed to be made!!🤣....Last time I supplied imperial measurements to such a place there was much confusion and teeth sucking!
David Mack Posted December 23, 2023 Report Posted December 23, 2023 3 hours ago, frangar said: I purposely did it in metric as I thought that would be most useful to a machine shop if one needed to be made!!🤣....Last time I supplied imperial measurements to such a place there was much confusion and teeth sucking! Last time I supplied measurements to someone who machines stuff for a living I gave him metric measurements (for something that would originally have been defined in imperial), and he said I had confused him as he always works in imperial. And this from a chap aged about 30!
frangar Posted December 23, 2023 Report Posted December 23, 2023 1 minute ago, David Mack said: Last time I supplied measurements to someone who machines stuff for a living I gave him metric measurements (for something that would originally have been defined in imperial), and he said I had confused him as he always works in imperial. And this from a chap aged about 30! You just can’t win!
BEngo Posted December 23, 2023 Report Posted December 23, 2023 Once upon an earlier life I worked for a business that made turbochargers. They were Imperial, as were most of the turbos we made, being of US origin. The ones for the German, Japanese and Dutch markets were specified in SI units but the dimensions were converted so the stage drawings were all Imperial too. The high tech Japanese machinery and robots that made the swarf didn't seen to care what they were programmed in.. N
john.k Posted December 24, 2023 Report Posted December 24, 2023 I took a list of bushing s I wanted to the bearing shop ........the 18yr old retard on the counter is WTF is all this ......its 16ths ,moron..........16 and 13 ,and 8 and 5 ,all these numbers are doing my head in........Out comes the manager ...whats going on ,you are stressing an employee.........After a bit of a discussion ,the manager brings out the entire stock of sintered bushes ,and solids too,and gives them to me ....$10 the lot ,and dont come back. 1
kevinl Posted December 28, 2023 Report Posted December 28, 2023 Don't know what it means but when someone gets their "sintered bushes" it's time to leave. K
MtB Posted December 30, 2023 Report Posted December 30, 2023 On 28/12/2023 at 21:28, kevinl said: Don't know what it means but when someone gets their "sintered bushes" it's time to leave. K A 'sintered' material is two (or more) materials ground up into a fine powder and squashed together under enormous pressure so they form a composite material. Bushes are an example often sintered bronze and graphite IIRC, so the graphite makes the bearing self-lubricating. I may have some details wrong, it is 50 years since I worked in a machine shop. 1
kevinl Posted January 1, 2024 Report Posted January 1, 2024 On 30/12/2023 at 09:03, MtB said: A 'sintered' material is two (or more) materials ground up into a fine powder and squashed together under enormous pressure so they form a composite material. Bushes are an example often sintered bronze and graphite IIRC, so the graphite makes the bearing self-lubricating. I may have some details wrong, it is 50 years since I worked in a machine shop. Only joking, but "sintered bushes" just sounds like some intimate lady gardening process. K
