jenevers

Changing Amal lift pump on 4LW

Featured Posts

It is very easy, two pipes, two nuts/studs. Just make sure the fuel supply line is isolated (On my boat the fuel tank level is higher than the engine so it comes through by gravity.

Share this post


Link to post
Share on other sites

If you don't have gravity feed to the lift pump you may need to set the camshaft in the right position to operate the priming lever through a full stroke.  You can feel when operatiing the priming lever does nowt.  If so turn the engine one full revolution, giving half a revolution on the camshaft which operates the pump.



Share this post


Link to post
Share on other sites
3 hours ago, jonesthenuke said:

It is very easy, two pipes, two nuts/studs. Just make sure the fuel supply line is isolated (On my boat the fuel tank level is higher than the engine so it comes through by gravity.



2 hours ago, BEngo said:

If you don't have gravity feed to the lift pump you may need to set the camshaft in the right position to operate the priming lever through a full stroke.  You can feel when operatiing the priming lever does nowt.  If so turn the engine one full revolution, giving half a revolution on the camshaft which operates the pump.



Thanks. I’ll check if the bottom of the fuel tank is higher than the pump next time I’m aboard.

Share this post


Link to post
Share on other sites
Just now, jenevers said:



Thanks. I’ll check if the bottom of the fuel tank is higher than the pump next time I’m aboard.

You will need to compare the. current fuel level to the pump level, not the bottom of the tank (but you should have an isolation valve somewhere).



Share this post


Link to post
Share on other sites
1 hour ago, jonesthenuke said:

You will need to compare the. current fuel level to the pump level, not the bottom of the tank (but you should have an isolation valve somewhere).



There is an isolation valve.

Share this post


Link to post
Share on other sites
43 minutes ago, jonesthenuke said:

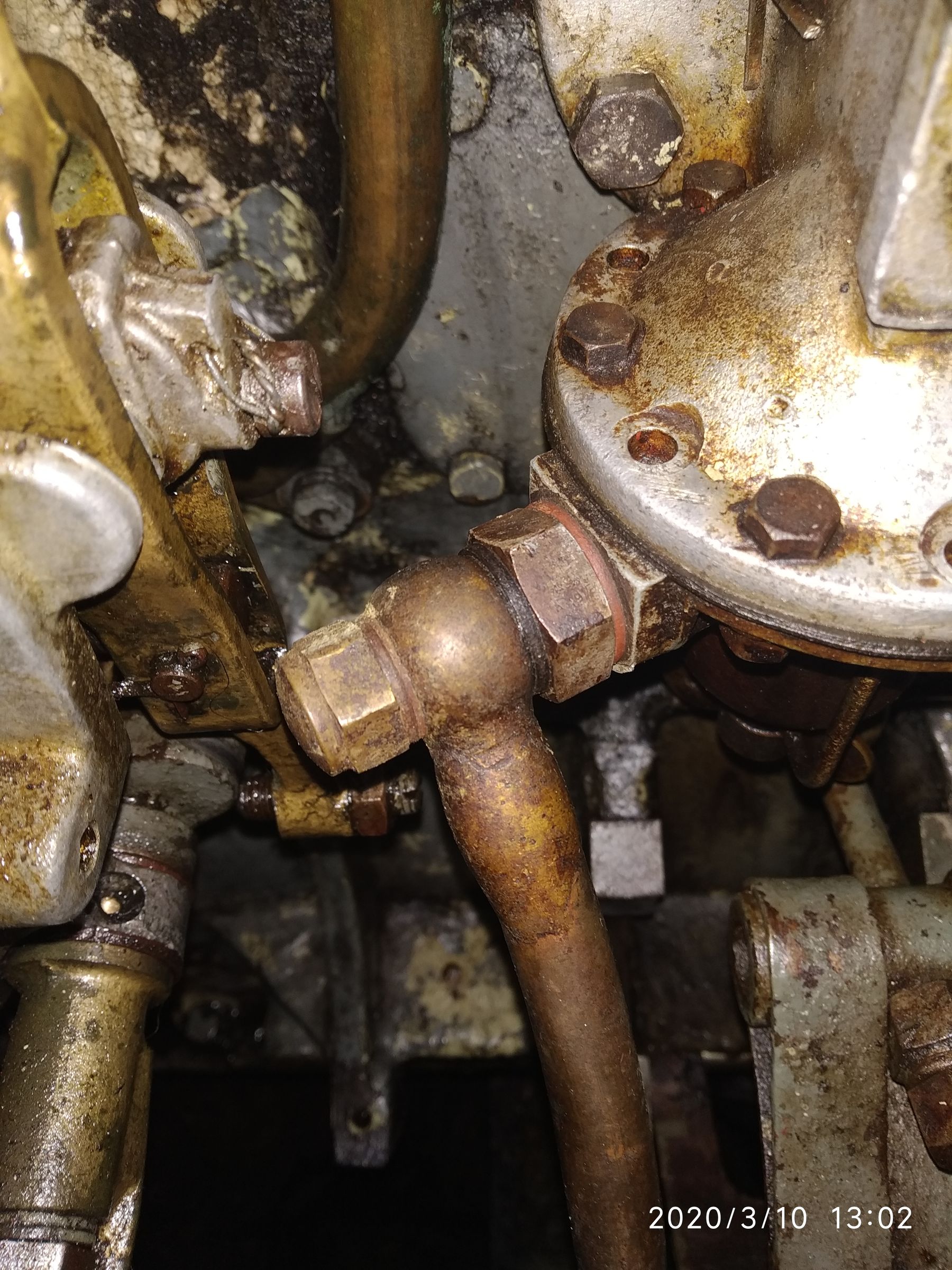

If you mean on the banjo fitting, take the outer dome nut off. this will allow the pipe to be removed.

Cheers👍
