Hopefully I will be able to post the images, drew them on word but could not convert them so took photos of the screen.
Ok so I have a 70' boat bought last October, had problems with the heating, system was dry, when topped up pump wouldn't run. Replaced 12v pump, still wouldn't work so eventually stuck in a 230v pump, seems to work ok but obviously uses power. I don't want to run the pump all night so I want to change it to thermosyphon.

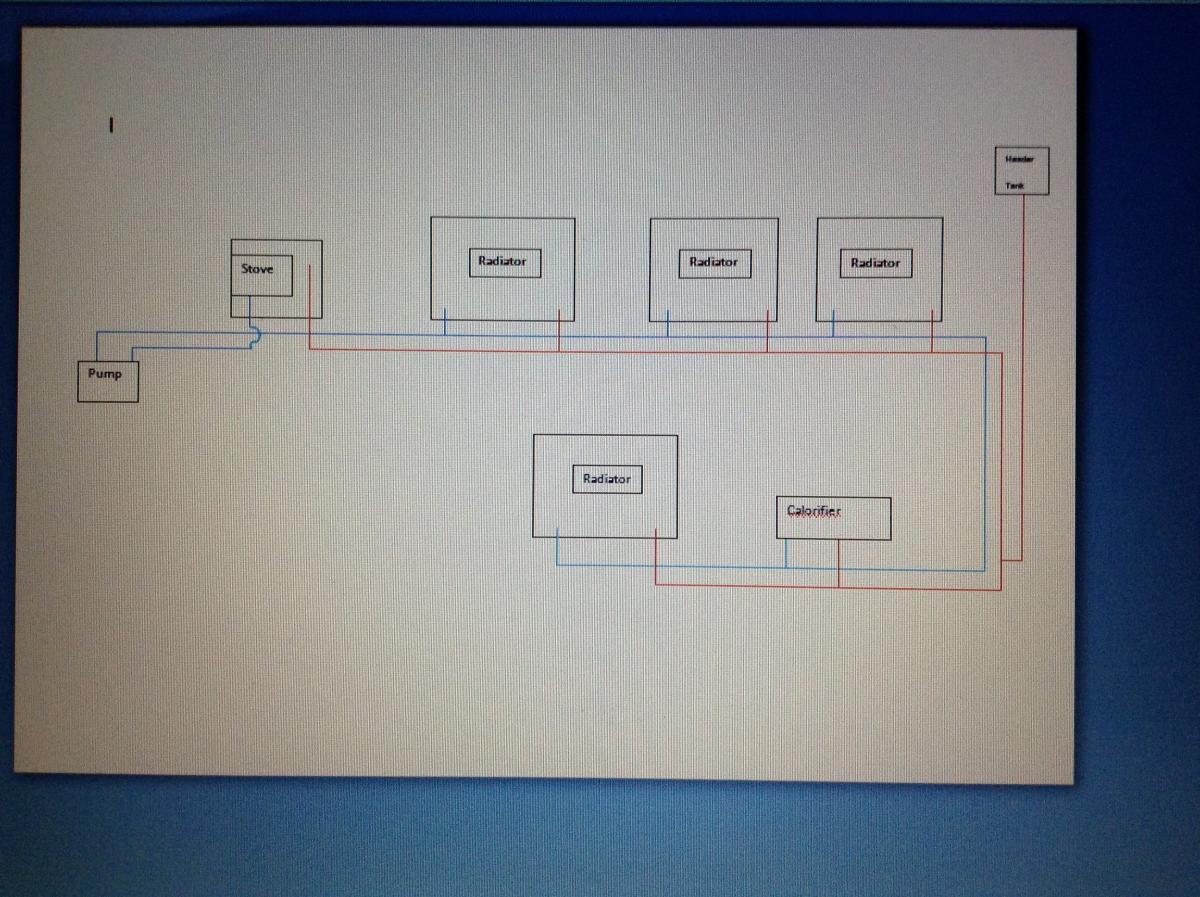

The existing layout is like so
From the left of the drawing the pump is under the front steps around 2'6" from the side of the boat there is a further 10' to the stove, the first radiator is 10' from the stove then there is 25' between rads 1&2, 8' between rads 2&3, then around 4' to the back of the boat, then around 6' across the width of the boat, 9' more to the calorifier then 10' to the bathroom rad, then of course the full run back to the pump.
The header tank is on the cruiser stern about 6" below roof level. I assume the header tank is on the flow pipe and not the return but I haven't as yet been bothered to pull the washing machine out to check.
The pipe runs from the boiler to floor level all around the boat
What I would like to do is this

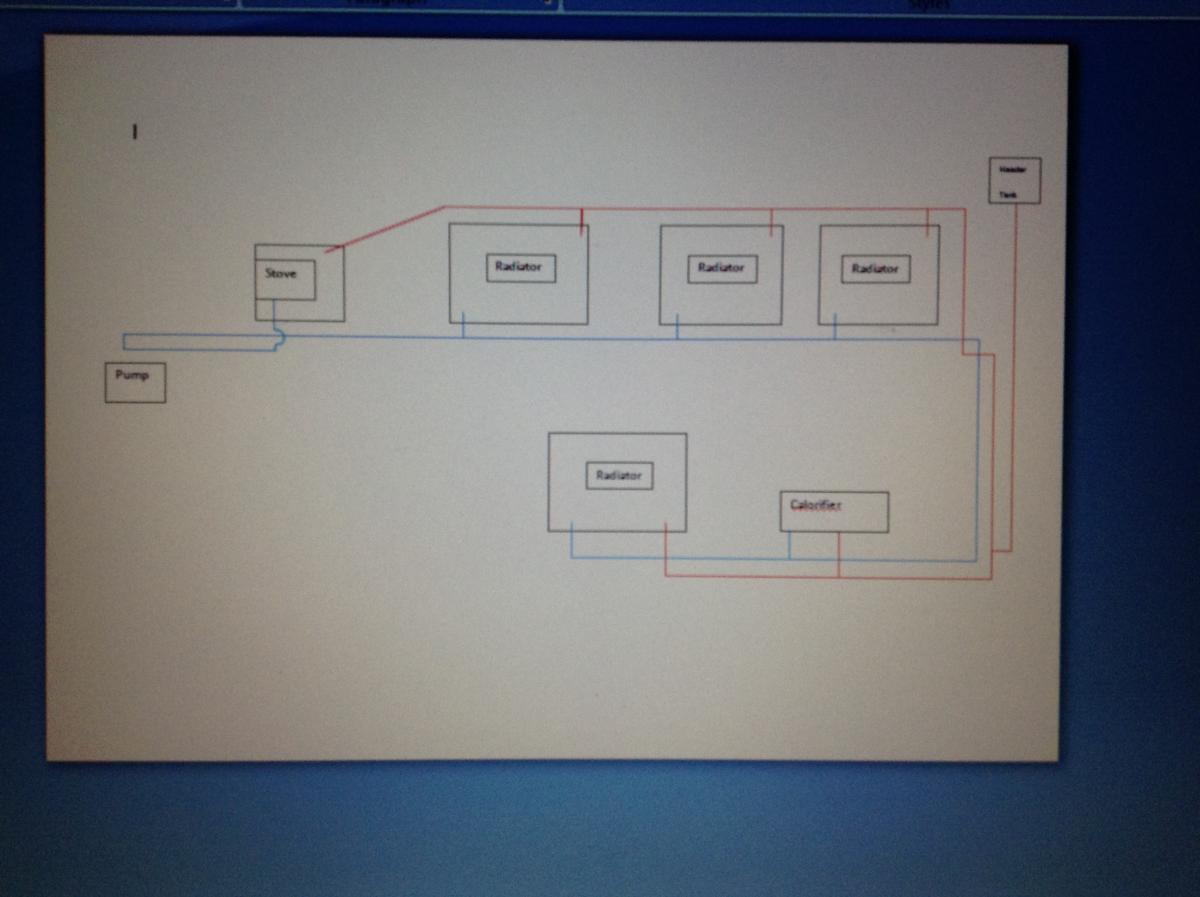

Take the feed pipe diagonally up to just below the gunnels then run under the gunnels (feeding each rad from the top) and dropping down to pick up the original feed pipe after the 3rd rad.
From the stove to the gunnels would be a run of about 10' rising around a foot.
Join the return pipe to bypass the pump.
I was thinking of having the return valve on the first rad set about a 1/4 open the second rad about 1/2 the 3rd rad about 3/4 and the bathroom rad both fully open
The boat is plumbed in large bore plastic, 32mm possibly?
There is a valve at the calorifier to turn it off in the Summer so the engine doesn't heat the rads
As far as I can tell, if the feed pipe rises the hot water will flow and draw the cold in to the bottom.
Ok so questions.
1. Will this thermosyphon over this distance?
2. After the run along the gunnels will the hot then travel at floor level to the last radiator?
3. Should the return be taken directly back to the stove? I was thinking leave it and join it at the pump in case I need to re plumb it in
4. Can I join at the pump with a full bore valve so that the pump can be included just by shutting the valve off?
5. I assume the header tank will stay as part of a thermosyphon system?
6. Is my assumption about setting the return valves correct? ( the bathroom rad does not have a thermostatic valve; the valves will be permanently set to open fully)
I'm sure there will be more question arise as this thread progresses
I thank you in advance for your pearls of wisdom
